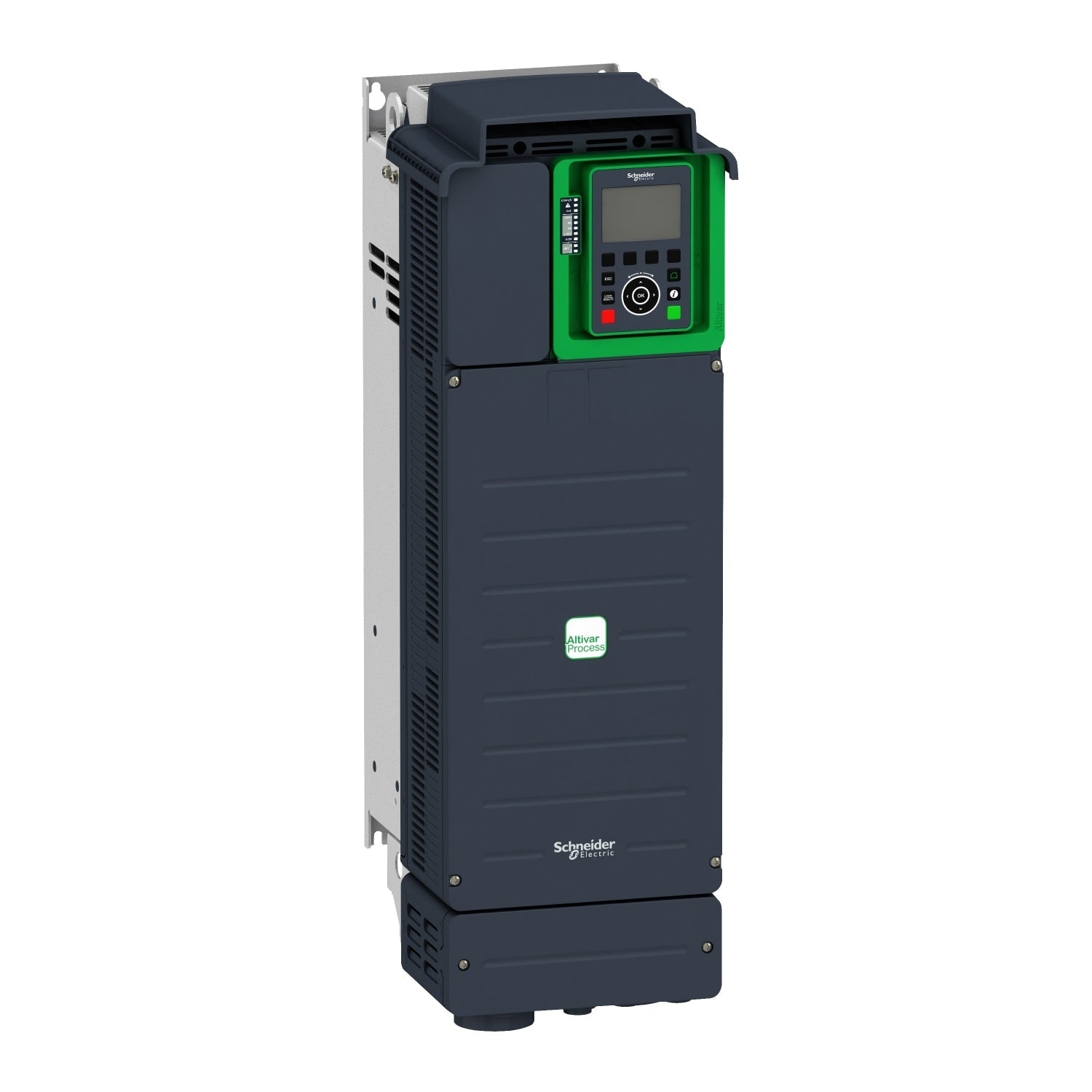

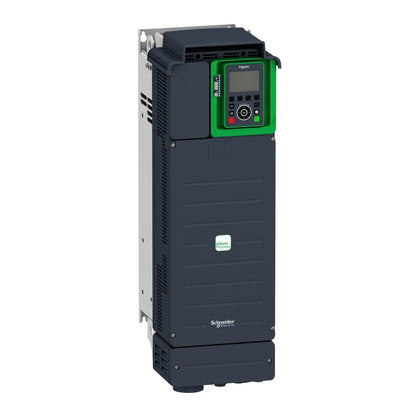

ATV930D30N4 Altivar Process ATV930 30kW VFD with Braking Unit IP21 | Schneider Electric

The Original New Schneider Electric ATV930D30N4 is a 30 kW (40 hp) variable speed drive from the Altivar Process ATV900 series, engineered for demanding industrial process applications requiring high performance and integrated safety. Part of the Altivar Process ATV900 family, this drive delivers maximum productivity with excellent motor control and connectivity capabilities. It features a built‑in braking unit and IP21 enclosure with UL Type 1 rating. Featuring embedded power measurement, process monitoring, and energy dashboard, the ATV930D30N4 provides seamless integration into industrial automation systems for water/wastewater, oil and gas, mining, and food and beverage applications.

Core Engineering Highlights:
30 kW (40 hp) normal duty / 22 kW (30 hp) heavy duty| 400-480V 3-phase input | 61.5A continuous output current (Normal Duty) / 46.3A (Heavy Duty) at 4 kHz| IP21 / UL Type 1 enclosure | Integrated braking unit | Embedded Ethernet + Modbus serial communication | STO (Safe Torque Off) SIL3 safety function | 0.1-599 Hz output frequency| 0.6% analog input accuracy| 28 kg weight

Key Features:

• Original New Schneider Electric ATV930D30N4 drive

• 30 kW (40 hp) normal duty and 22 kW (30 hp) heavy duty power rating

• 400-480V 3-phase input, 50/60 Hz

• 61.5 A continuous output current at 4 kHz (Normal Duty)

• Built‑in braking unit for dynamic braking applications

• IP21 enclosure conforming to IEC 61800-5-1 and UL Type 1 conforming to UL 508C

• Embedded power measurement and energy dashboard for real‑time energy monitoring

• Stop and Go function to reduce energy consumption

• Asset monitoring and protection with drift detection

• Built‑in Ethernet port with Modbus TCP and Modbus serial communication

• STO (Safe Torque Off) safety function certified to SIL3

• Supports asynchronous, synchronous, permanent magnet, and synchronous reluctance motors

• Embedded process monitoring and control

• Wall mounting design with vertical orientation

• Forced convection cooling for reliable operation in demanding environments

• Supports optional communication modules: PROFIBUS DP V1, PROFINET, DeviceNet

• ATEX, CSA, TÜV, DNV-GL, UL certified

• Operating temperature: –15°C to +60°C

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

• Carbon footprint: 10,882 kg CO₂ eq

Applications:

• Pump speed regulation in water/wastewater treatment

• Fan and ventilation systems

• Compressor control

• Industrial process automation

• Material handling and conveyor systems

• Oil and gas industry applications

• Mining and minerals processing

• Food and beverage processing

Technical Specifications:

Power & Voltage:

• Rated Supply Voltage: 400-480 V (–15% / +10%), 3-phase

• Supply Frequency: 50/60 Hz

• Output Voltage: ≤ power supply voltage

• Output Frequency: 0.1-599 Hz

Control & Protection:

Communication:

Physical & Environmental:

System Compatibility:

• Schneider Electric Modicon M340, M580, and other controllers via Ethernet/Modbus

• EcoStruxure Control Expert and SoMove configuration software

• PROFIBUS DP V1, PROFINET, DeviceNet, and other fieldbus networks (via option cards)

• EtherCat and RS-485 networks

Related Products:

• ATV930D22N4 – 22 kW (30 hp) version (lower power)

• ATV930D30N4 – 30 kW (40 hp) version (current model)

• ATV930D37N4 – 37 kW (50 hp) version (higher power)

• VW3A1111 – Ethernet/IP communication module

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
