BMEXBP1200 12-Slot Ethernet Backplane Modicon X80 | Schneider Electric

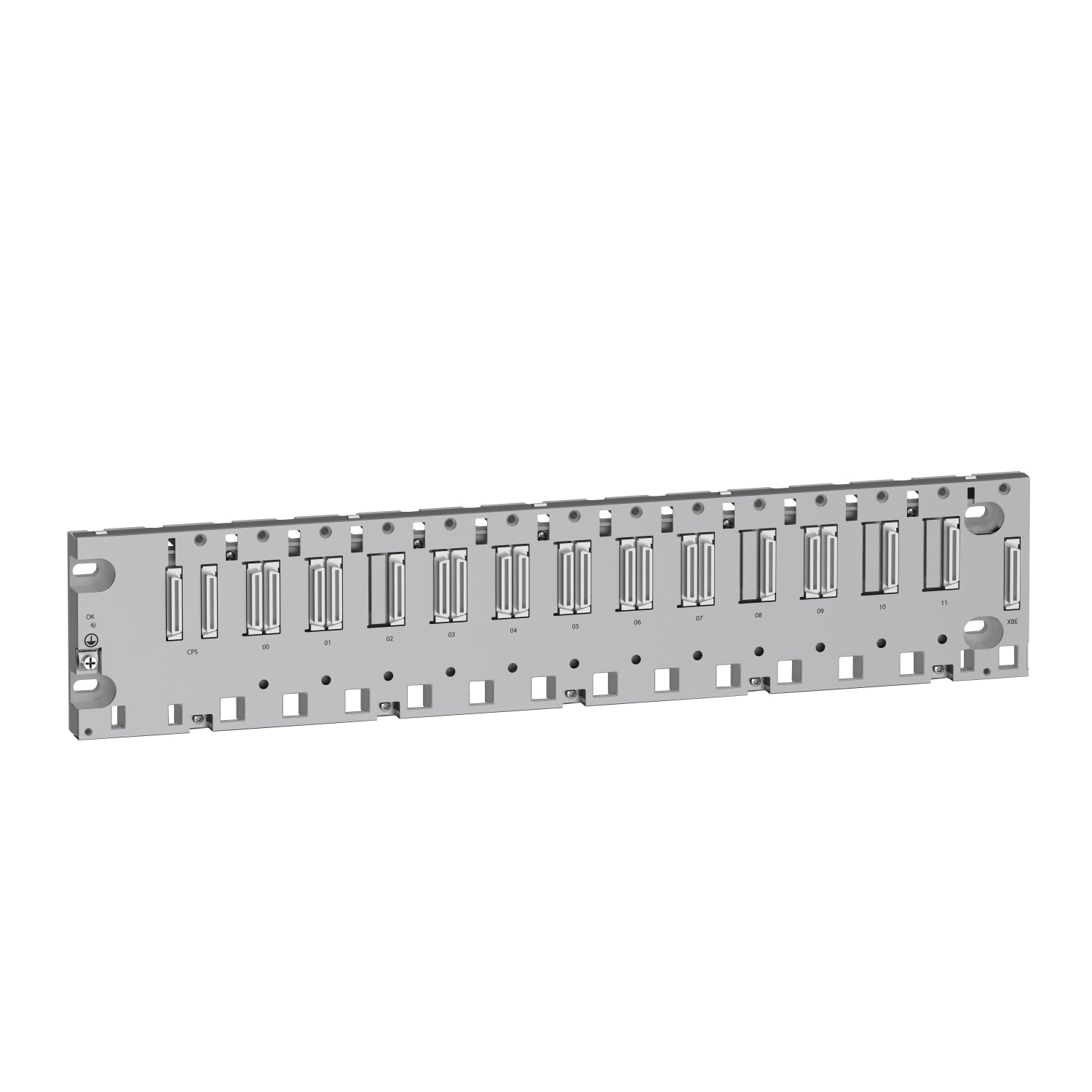

The Original New Schneider Electric BMEXBP1200 is a 12‑slot Ethernet backplane for the Modicon X80 I/O platform, providing the physical and electrical backbone for Modicon M340, Modicon M580, and X80 module-based automation systems. This 12‑slot dual Ethernet and X‑bus backplane provides 8 slots with Ethernet and X‑bus connectors for mixed modules and 4 X‑bus connectors for X‑bus‑only modules. The BMEXBP1200 supports hot‑swappable I/O modules for most modules, reducing downtime during maintenance. It is suitable for medium to large process applications.

Core Engineering Highlights:
12 slots (8 mixed Ethernet+X‑bus + 4 X‑bus) | 86 mA @ 3.3V DC / 164 mA @ 24V DC | 3.9 W @ 24V DC / 283 mW @ 3.3V DC power consumption | 1.377 kg net weight | IP20 protection | 0°C to +60°C operating temperature | 1,166,108 hours MTBF | 1 XBE expansion module connector | EN 61131‑2, EN 61000‑6‑4, EN 61000‑6‑2, EN 61010‑2‑201

Key Features:

• Original New Schneider Electric BMEXBP1200 backplane

• 12 slots total: 8 bus X + Ethernet connectors for mixed modules, 4 bus X connectors for X‑bus‑only modules

• Common platform used by Modicon M340, Modicon M580, and X80 modules

• Hot‑swappable for most I/O modules, enabling online module replacement without system shutdown

• Stable in‑rack module mounting for reliable system performance

• Supports easy Quantum modernization path

• 1 XBE connector for rack expansion

• Panel or plate mounting with 4 screws (M4, M5, M6 or UNC #6‑32)

• IP20 protection for control cabinet environments

• 0°C to +60°C operating temperature range

• 1,166,108 hours MTBF for high reliability and reduced downtime

• Green Premium product with RoHS and REACH compliance

• Mercury free

• CE, UL, CSA, RCM, EAC, UKCA certified

Applications:

• Central backplane for Modicon X80‑based automation systems

• Industrial automation control panels using Modicon M340 / M580 PLC architecture

• Machine control systems requiring modular I/O expansion

• Process automation racks in manufacturing and infrastructure applications

• Medium to large process applications

• Control cabinets requiring Ethernet backplane connectivity

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• BMXCPS power supplies

• BMX processors

• BME processors

• X80 I/O modules and application‑specific modules

• EcoStruxure Control Expert (formerly Unity Pro) software

Related Products:

• BMEXBP0400 – 4‑slot Ethernet backplane (lower density)

• BMEXBP0800 – 8‑slot Ethernet backplane (mid density)

• BMEXBP1200 – 12‑slot Ethernet backplane (current model)

• BMEXBP1200H – Ruggedized version for harsh environments

• BMXCPS2000 – 20W AC power supply module for X80

• BMXCPS3500 – 36W AC power supply module

• BMXP342020 – Modicon M340 processor module

• BMXDDI3202K – 32‑channel discrete input module

• BMXDDO3202K – 32‑channel discrete output module

• BMXFTB2000 – 20‑way terminal block for X80 I/O

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
