BMXAMI0410 4-Channel Analog Input Module 4-20mA ±10V | Schneider Electric

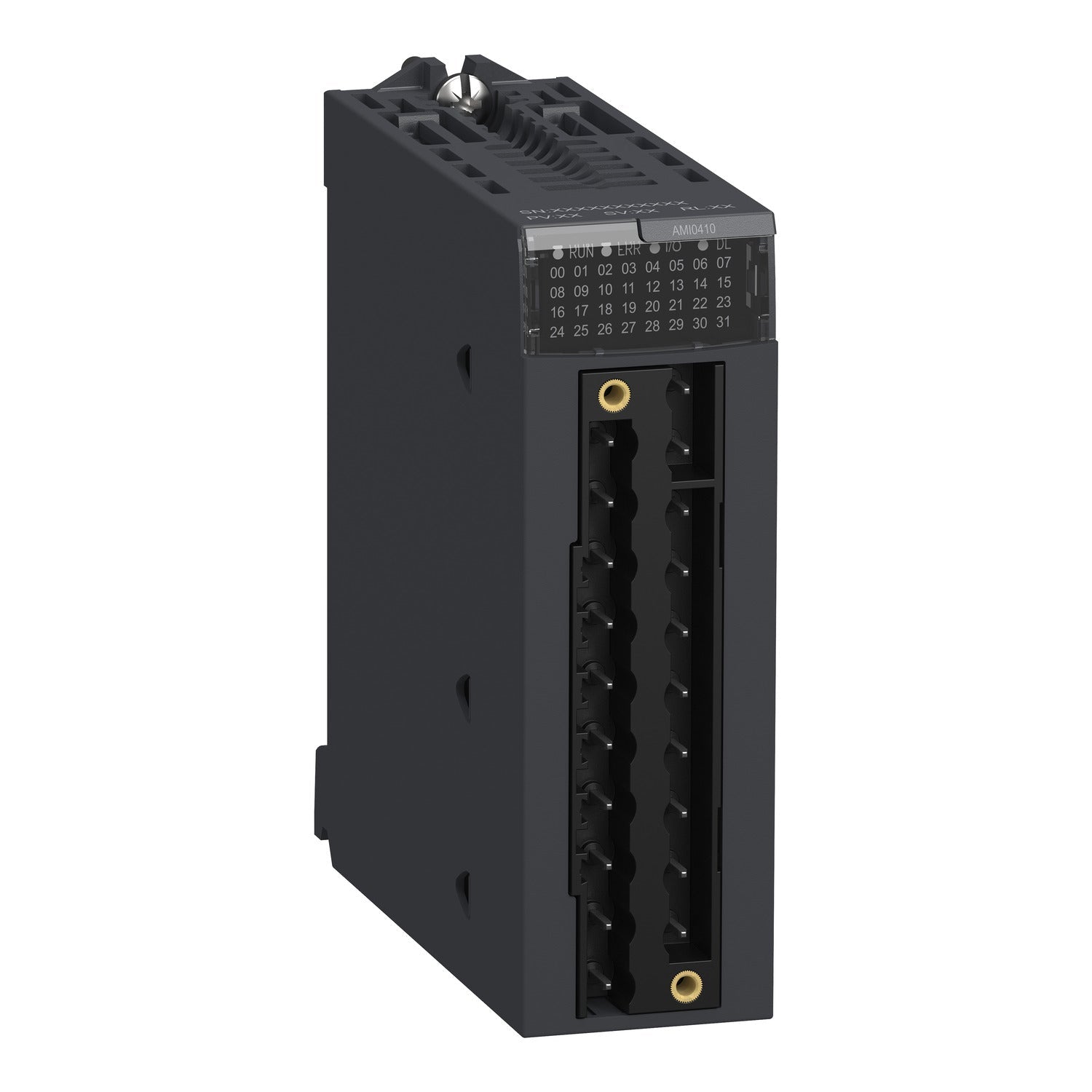

The Original New Schneider Electric BMXAMI0410 is a 4-channel analog input module for the Modicon X80 I/O platform, designed for high-precision analog signal acquisition in industrial automation and process control systems. It provides 4 isolated analog inputs configurable for voltage (±10V, ±5V, 0-10V, 0-5V, 1-5V) or current (±20mA, 0-20mA, 4-20mA) signals. Part of the common I/O platform for Modicon M340 and M580 Programmable Automation Controllers (PACs), this module offers 24-bit analog/digital conversion with 16-bit resolution. It is used with sensors or transmitters for monitoring, measurement, and continuous process control.

Core Engineering Highlights:
4 isolated analog input channels (high level) | 16-bit resolution | 300V DC isolation between channels | 1400V DC isolation between channels and ground | Voltage (±10V, ±5V, 0-10V, 0-5V, 1-5V) and Current (±20mA, 0-20mA, 4-20mA) configurable | Fast read cycle: 1 ms + 1 ms × channels used | Nominal read cycle: 5 ms for 4 channels | Measurement error: ≤0.1% (voltage) / ≤0.3% (current) at 0-60°C | 80 dB minimum crosstalk attenuation, 90 dB common mode rejection

Key Features:

• Original New Schneider Electric BMXAMI0410 module

• 4 isolated analog input channels (high level)

• Channel-independent configurable input ranges (voltage or current)

• 300V DC isolation between channels

• 1400V DC isolation between channels and ground

• 16-bit resolution with 24-bit analog/digital conversion

• Input impedance: 10 MΩ (voltage mode); 250 Ω + internal protective resistor (current mode)

• First order digital filtering

• Permitted overload on inputs: ±30V (voltage) / ±90mA (current)

• Fast read cycle: 1 ms + 1 ms per channel used

• Nominal read cycle: 5 ms for 4 channels

• 80 dB minimum crosstalk attenuation

• 90 dB common mode rejection

• Internal recalibration

• 20-way removable terminal block connection

• Single slot width in X80 rack

• IP20 protection for control cabinet environments

Applications:

• Analog signal acquisition from pressure, flow, level and temperature transmitters

• Process variable monitoring in water/wastewater treatment

• Machine automation and data acquisition

• Factory automation and process control systems

• OEM equipment requiring high-density analog input

• Continuous process monitoring, measurement, and control

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• Modicon X80 I/O backplane and racks

• EcoStruxure Control Expert (formerly Unity Pro) software

• Modicon X80 digital and analog I/O modules

Related Products:

• BMXAMI0810 – 8-channel analog input module (higher density)

• BMXAMO0410 – 4-channel analog output module (isolated)

• BMXFTB2010 – 20-way removable screw terminal block for X80 I/O

• BMXFCW303 – 3m cord set with flying leads

• BMXXBP0400 – 4-slot X80 backplane

• BMXXBP0800 – 8-slot X80 backplane
