BMXAMI0800 8-Channel Analog Input Module 4-20mA ±10V | Schneider Electric

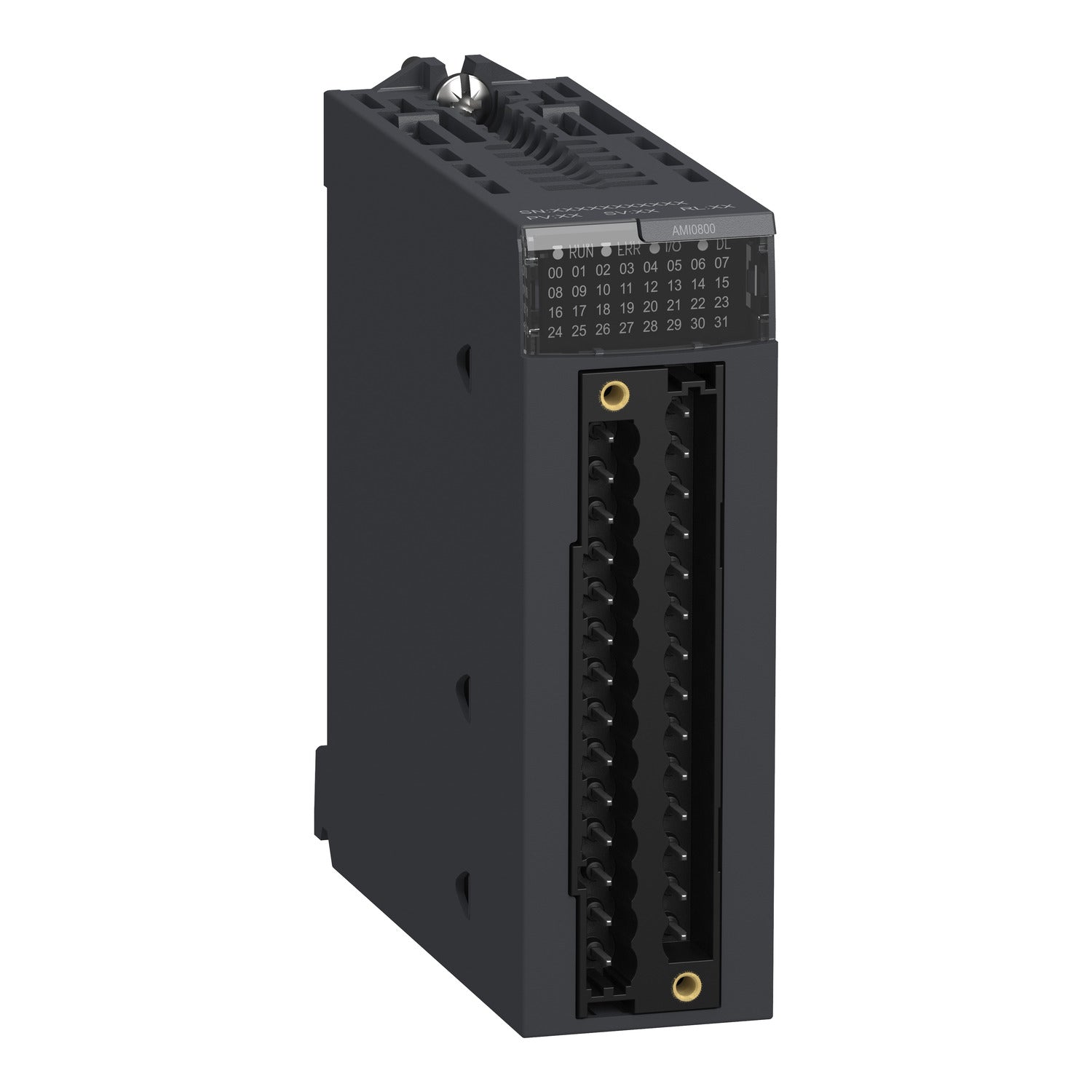

The Original New Schneider Electric BMXAMI0800 is an 8-channel analog high level input module for the Modicon X80 I/O platform, designed for high-speed, high-precision analog signal acquisition in industrial automation and process control systems. It accepts 8 non-isolated analog inputs configurable for voltage (±10V, ±5V, 0-10V, 0-5V, 1-5V) or current (±20mA, 0-20mA, 4-20mA) signals. Part of the common I/O platform for Modicon M340 and M580 Programmable Automation Controllers (PACs), this module offers 16-bit analog/digital conversion with 15-bit + sign resolution, fast cycle times down to 1 ms + 1 ms per channel, and first-order digital filtering.

Core Engineering Highlights:
8 non-isolated analog high level input channels | Voltage (±10V, ±5V, 0-10V, 0-5V, 1-5V) and Current (±20mA, 0-20mA, 4-20mA) configurable | 16-bit analog/digital conversion | 15-bit + sign resolution | First-order digital filtering | Fast read cycle: 1 ms + 1 ms × channels used | Nominal read cycle: 9 ms for 8 channels | High input impedance: 10 MΩ (voltage mode) | IP20 protection | 0°C to +60°C operating temperature | 28-way connector

Key Features:

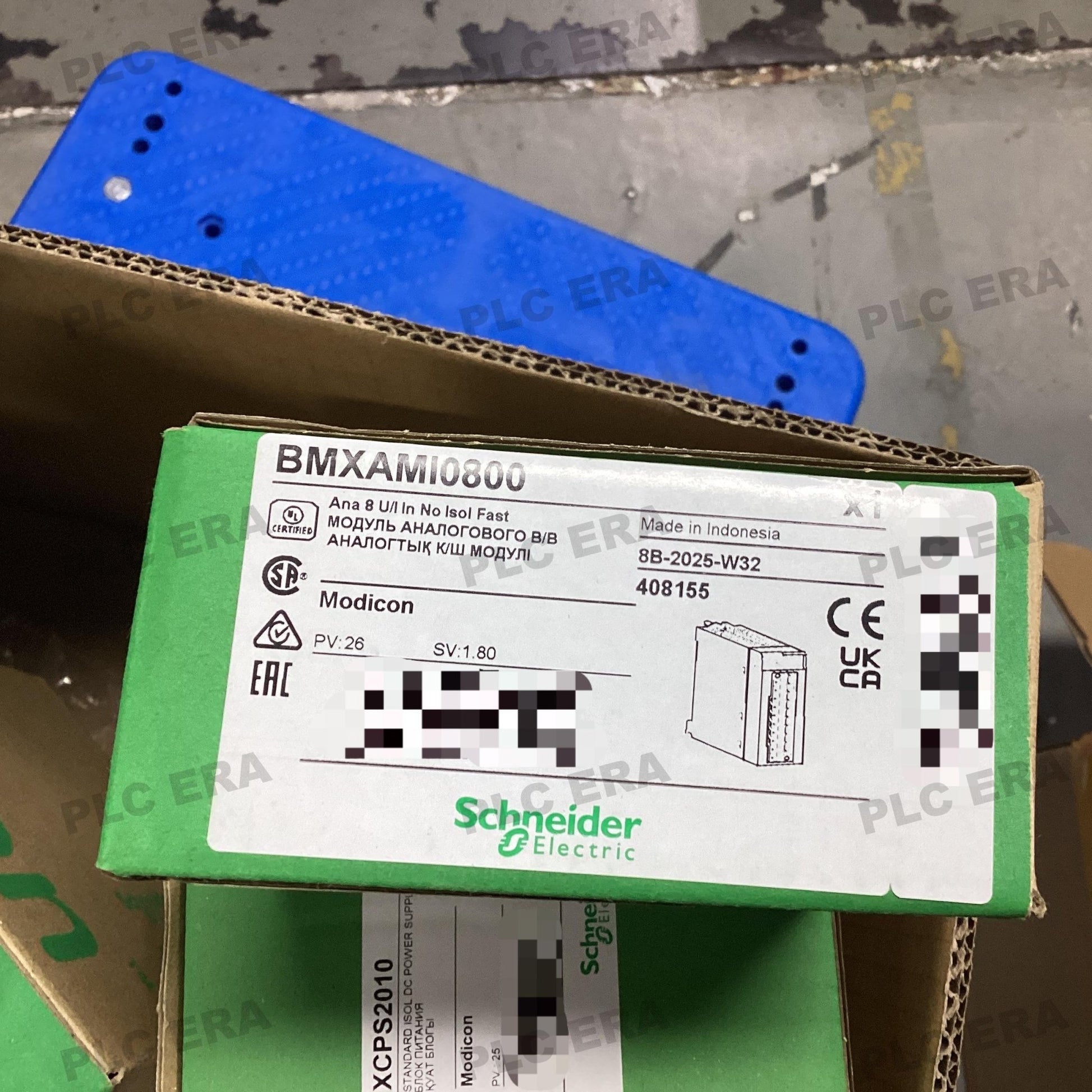

• Original New Schneider Electric BMXAMI0800 module

• 8 non-isolated analog input channels (high level)

• Channel-independent configurable input ranges (voltage or current)

• 16-bit analog/digital conversion with 15-bit + sign resolution

• High input impedance: 10 MΩ in voltage mode, 250 Ω in current mode

• First-order digital filtering for noise reduction

• Fast read cycle: 1 ms + 1 ms per channel used

• Nominal read cycle: 9 ms for all 8 channels

• ±0.075% measurement error for voltage inputs at 25°C

• ±0.15% measurement error for current inputs at 25°C

• Permitted overload: ±30V (voltage mode) / ±30mA (current mode)

• 28-way connector for electrical connection

• IP20 protection for control cabinet environments

• 0°C to +60°C operating temperature

• EAC, RCM, UL, CSA, Merchant Navy, CE certified

• Meets IEC 61131-2, UL 508 standards

• Suitable for medium to large process applications

Applications:

• Analog signal acquisition from pressure, flow, level and temperature transmitters

• Process variable monitoring in water/wastewater treatment

• Machine automation and data acquisition

• Factory automation and process control systems

• OEM equipment requiring high-density analog input

• Continuous process monitoring, measurement, and control

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• Modicon X80 I/O backplane and racks

• EcoStruxure Control Expert (formerly Unity Pro) software

• Modicon X80 digital and analog I/O modules

Related Products:

• BMXAMI0810 – 8-channel isolated analog input module (higher isolation)

• BMXAMO0802 – 8-channel analog output module (current output)

• BMXFTB2000 – 20-way removable screw terminal block for X80 I/O

• BMXFTB2010 – 20-way removable screw clamp terminal block

• BMXFTW301S – 3m shielded cord set with 28-way connector

• BMXXBP0400 – 4-slot X80 backplane

• BMXXBP0800 – 8-slot X80 backplane
