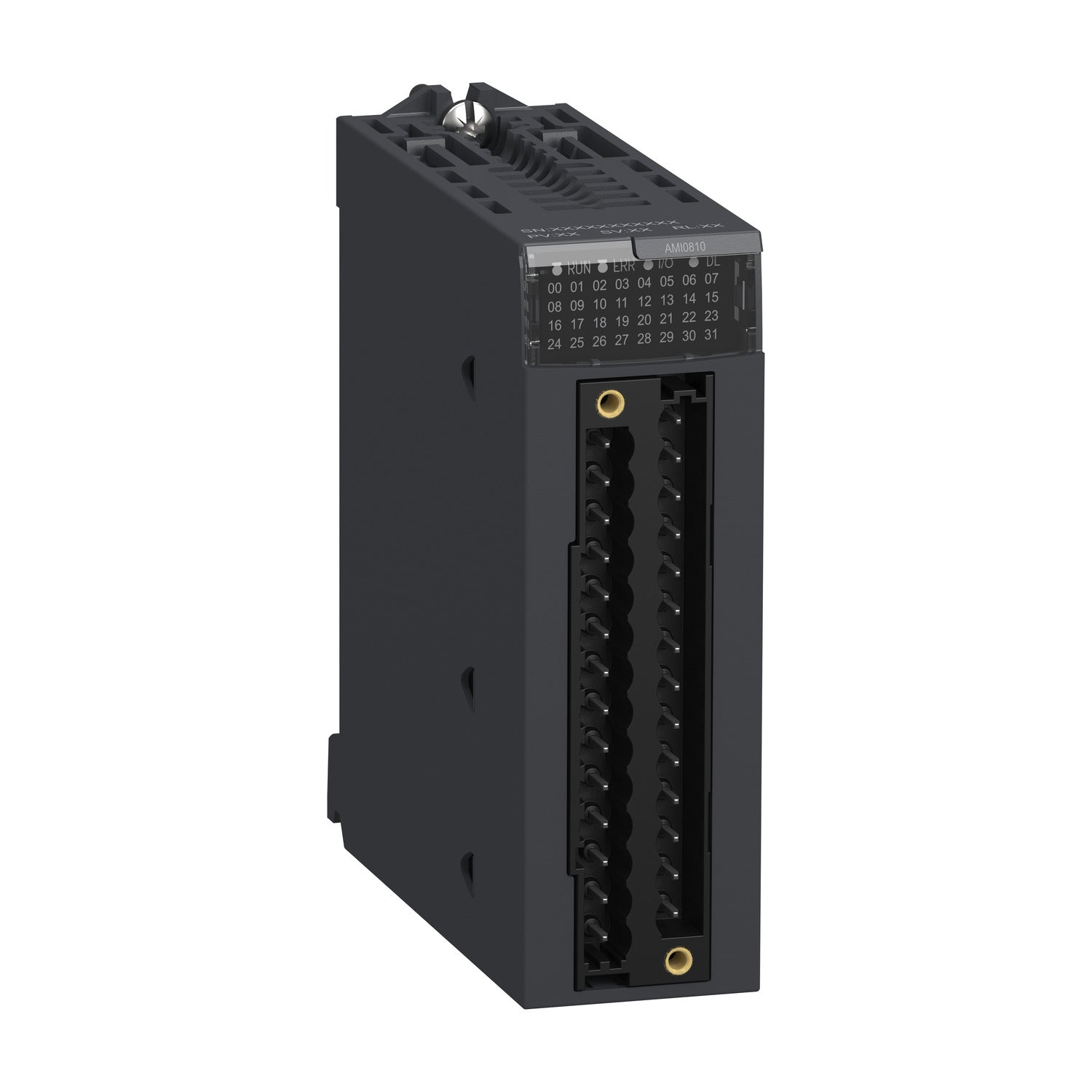

BMXAMI0810 8-Channel Analog Input Module 4-20mA ±10V | Schneider Electric

The Original New Schneider Electric BMXAMI0810 8-Channel Analog Isolated High Level Input Module is a high-density analog input module for the Modicon X80 I/O platform. It converts current and voltage sensor signals — including 0-20mA, 4-20mA, ±20mA, 0-10V, ±10V, and additional ranges — into 16-bit digital data for the Modicon X80 PLC. Designed for monitoring, measurement, and continuous process control, the BMXAMI0810 is part of the common I/O platform for Modicon M340 and M580 Programmable Automation Controllers (PACs).

Core Engineering Highlights:
8 isolated analog inputs (high level) | 16-bit A/D conversion (15 bits + sign) | Voltage (±10V, ±5V, 0-10V, 0-5V, 1-5V) and Current (±20mA, 0-20mA, 4-20mA) configurable | 1 ms + 1 ms per channel fast read cycle | 9 ms nominal read cycle for 8 channels | 300V DC isolation between channels | 1400V DC isolation between channels and bus/ground | ±0.1% measurement error (voltage) | 28-way removable terminal block connection | IP20 protection

Key Features:

• Original New Schneider Electric BMXAMI0810 module

• 8 isolated analog input channels for high-level voltage or current signals

• Channel-independent configurable input ranges (voltage or current)

• 300V DC isolation between channels, 1400V DC isolation between channels and bus/ground

• 16-bit A/D conversion with 15 bits + sign resolution

• Fast read cycle: 1 ms + 1 ms per channel used

• Nominal read cycle: 9 ms for all 8 channels

• First order digital filtering for noise reduction

• ±0.1% measurement error for voltage inputs

• ±0.3% measurement error for current inputs

• 28-way removable terminal block for simplified wiring

• Part of the Modicon X80 I/O platform, compatible with M340 and M580 PACs

• IP20 protection for control cabinet environments

Applications:

• Analog signal acquisition from pressure, flow, level and temperature transmitters

• Process variable monitoring in water/wastewater treatment

• Machine automation and data acquisition

• Factory automation and process control systems

• OEM equipment requiring high-density analog input

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• Modicon X80 I/O backplane and racks

• EcoStruxure Control Expert (formerly Unity Pro) software

• Modicon X80 digital and analog I/O modules

Related Products:

• BMXAMI0410 – 4-channel analog input module, isolated

• BMXAMO0410 – 4-channel analog output module, isolated

• BMXAMI0800 – 8-channel analog input module (non-isolated)

• BMXFTB2010 – 20-way removable screw terminal block for X80 I/O

• BMXFCW301S – Shielded cord set for analog inputs (3m)

• BMXXBP0400 – 4-slot X80 backplane

• BMXXBP0800 – 8-slot X80 backplane
