BMXAMO0802 8-Channel Analog Output Module 0-20mA/4-20mA | Schneider Electric

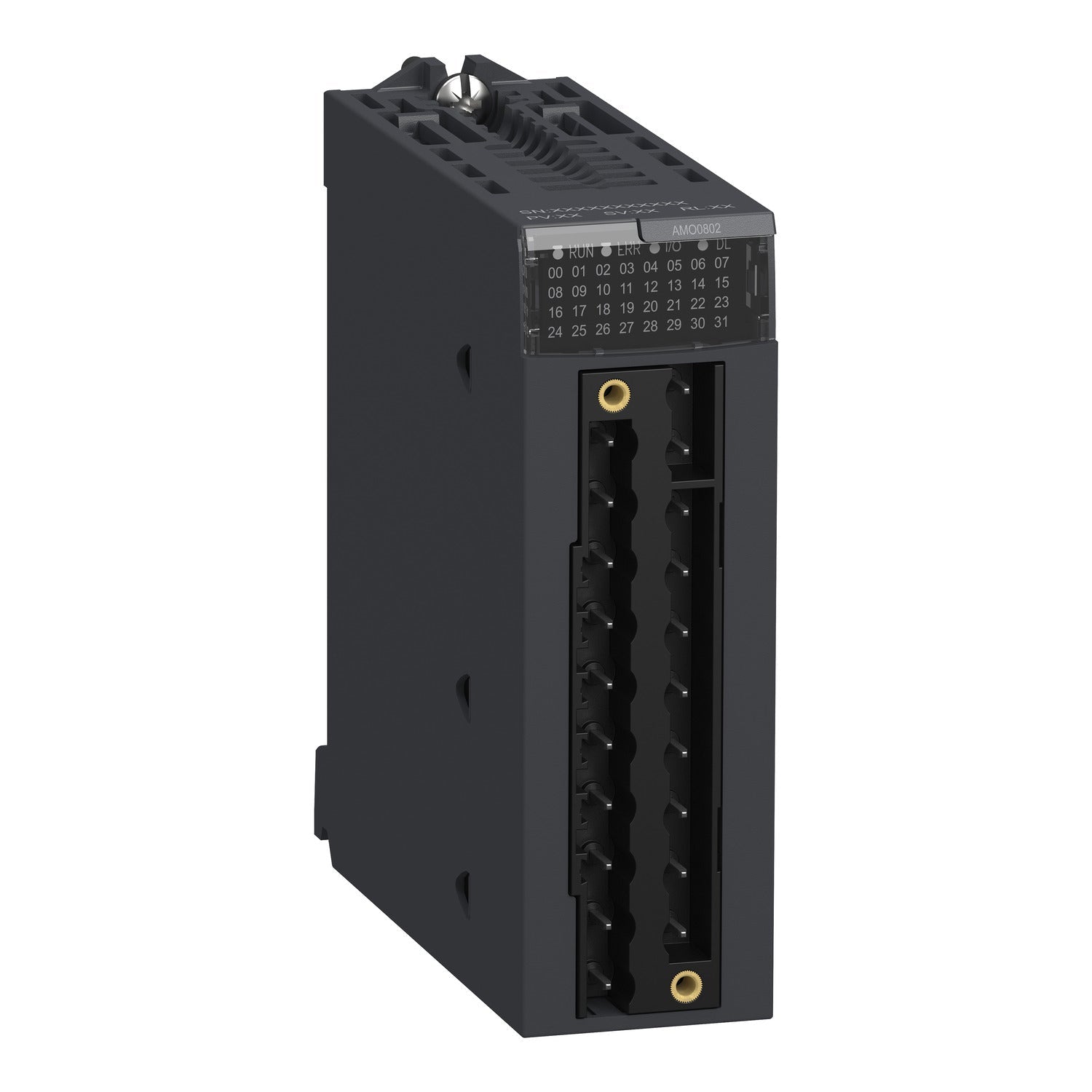

The Original New Schneider Electric BMXAMO0802 is an 8-channel analog output module for the Modicon X80 I/O platform, designed to convert digital control signals into precise analog current outputs for industrial automation and process control applications. It provides 8 non-isolated high-level current outputs configurable for 0-20 mA or 4-20 mA signals with 16-bit resolution. Part of the common I/O platform for Modicon M340 and M580 Programmable Automation Controllers (PACs), this module offers fast 4 ms conversion time per channel, open-circuit detection for 4-20 mA, and short-circuit detection for 0-20 mA. It is suitable for medium to large process applications requiring precise analog control of actuators, valves, and drives.

Core Engineering Highlights:
8 non-isolated analog current outputs (high level) | 0-20 mA / 4-20 mA configurable per channel | 16-bit resolution | ≤4 ms conversion time per channel | ≤0.25% full scale measurement error (0-60°C) | 45 ppm/°C temperature drift | 350 Ω maximum load impedance | Open-circuit detection (4-20 mA) / Short-circuit detection (0-20 mA) | 1400V DC isolation (channels to ground/bus) | 80 dB crosstalk attenuation / 80 dB common mode rejection | 1.5M hours MTBF | 0-60°C operating temperature | 20-way connector | IP20 protection

Key Features:

• Original New Schneider Electric BMXAMO0802 module

• 8 analog output channels for current signals only (0-20 mA or 4-20 mA)

• 16-bit resolution for high-precision analog control

• ≤4 ms conversion time for fast response to control signals

• ≤0.25% full scale measurement error over 0-60°C operating range

• 45 ppm/°C temperature drift for stable output over temperature variations

• Open-circuit detection for 4-20 mA current loop monitoring

• Short-circuit detection for 0-20 mA output protection

• Configurable fallback mode (predefined or configurable) for safe behavior on communication loss

• Non-isolated between channels; 1400V DC isolation between channels and ground/bus

• High-level outputs compatible with standard industrial actuators and drives

• Part of the Modicon X80 common I/O platform for M340 and M580 PACs

• IP20 protection for control cabinet environments

• 0°C to +60°C operating temperature range

Applications:

• Speed reference control for variable frequency drives

• Positioning of proportional valves and electric actuators

• Process control signal generation for 4-20 mA current loops

• Analog control for SCR power controllers and process valves

• Machine automation and OEM equipment requiring precise analog output

• Medium to large process applications

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• Modicon X80 I/O backplane and racks

• EcoStruxure Control Expert (formerly Unity Pro) software

• Modicon X80 digital and analog I/O modules

• ABE7CPA02 pre-formed cable assembly for Telefast wiring systems

Related Products:

• BMXAMO0410 – 4-channel isolated analog output module (±10V / 4-20mA)

• BMXAMI0810 – 8-channel isolated analog input module (voltage/current)

• BMXFTB2000 – 20-way removable screw terminal block for X80 I/O

• BMXFTB2010 – 20-way removable screw clamp terminal block

• BMXFCW303 – 3m cord set with flying leads

• ABE7CPA02 – Pre-formed cable assembly for Telefast wiring system

• BMXXBP0400 – 4‑slot X80 backplane

• BMXXBP0800 – 8‑slot X80 backplane

• BMXAMO0802H – Coated version for harsh environments

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
