BMXART0814 8-Channel Analog Input Module ±40mV to ±1.28V | Schneider Electric

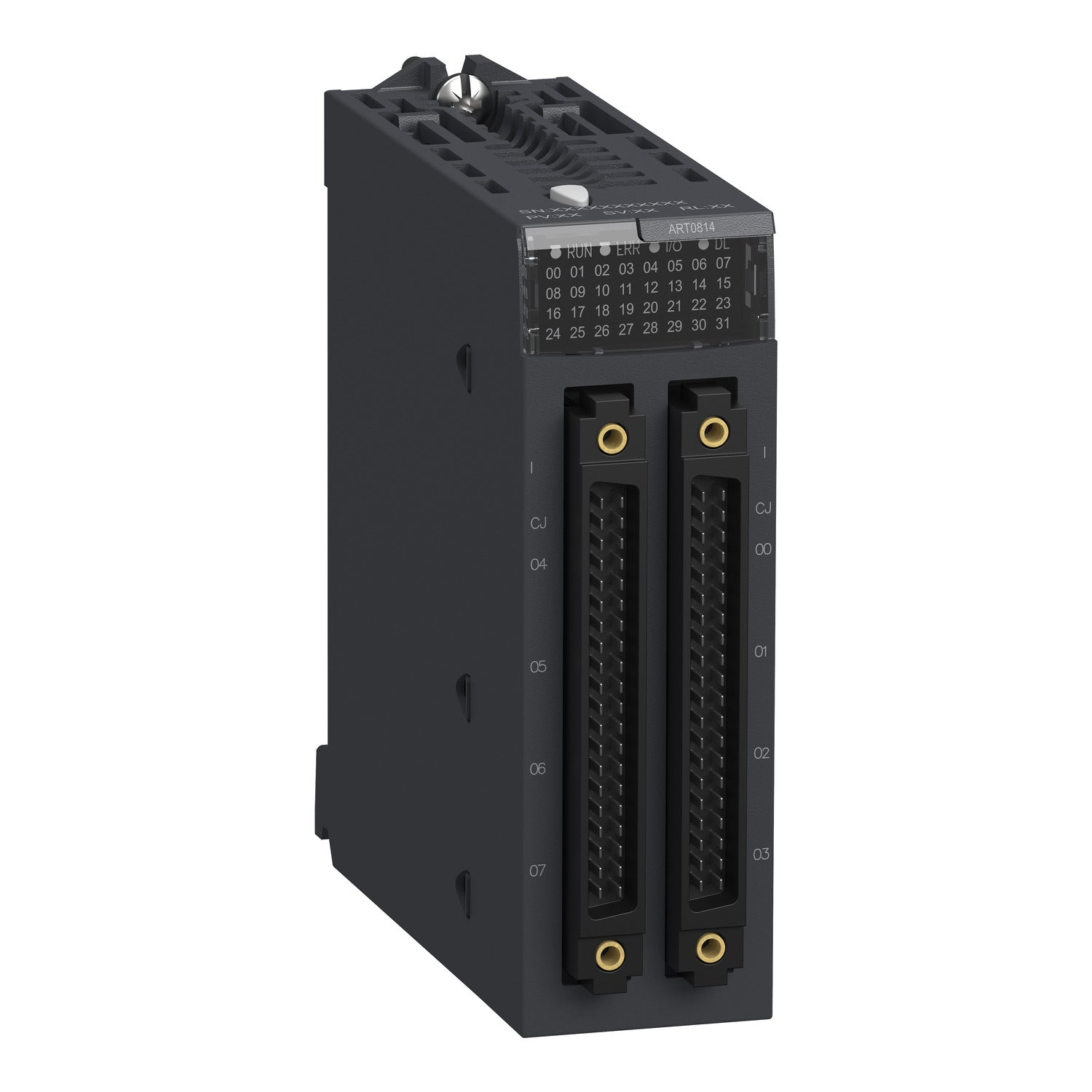

The Original New Schneider Electric BMXART0814 is an 8-channel isolated low-level analog input module for the Modicon X80 I/O platform, designed for high-precision measurement of thermocouples, RTDs, and low-level millivolt signals in industrial automation and process control systems. It supports a wide range of input types including thermocouples (B, E, J, K, L, N, R, S, T, U), RTDs (Pt100, Pt1000, Ni100, Ni1000, Cu10), resistors (400Ω, 4000Ω), and low-level voltage signals (±40mV to ±1.28V). Part of the common I/O platform for Modicon M340 and M580 Programmable Automation Controllers (PACs), this module provides channel-to-channel isolation (750V DC) and high-resolution 16-bit Sigma-Delta conversion.

Core Engineering Highlights:
8 isolated low-level analog input channels | ±40mV, ±80mV, ±160mV, ±320mV, ±640mV, ±1.28V selectable ranges | Thermocouple, RTD, and resistor support | 16-bit resolution (15 bits + sign) | 750V DC channel-to-channel isolation | 1400V DC channel-to-bus isolation | 200 ms read cycle (thermocouple) / 400 ms read cycle (RTD) | 150 mA @ 3.3V DC | 0.165 kg | 0°C to +60°C operating temperature

Key Features:

• Original New Schneider Electric BMXART0814 module

• 8 isolated low-level analog input channels

• 6 selectable voltage ranges: ±40 mV, ±80 mV, ±160 mV, ±320 mV, ±640 mV, ±1.28 V

• Supports thermocouple types: B, E, J, K, L, N, R, S, T, U

• Supports RTD sensors: Pt100, Pt1000, Ni100, Ni1000, Cu10 (2-, 3-, or 4-wire)

• Supports resistor inputs: 400Ω or 4000Ω (2-, 3-, or 4-wire)

• 16-bit Sigma-Delta conversion (15 bits + sign) for high-precision measurement

• 750V DC isolation between channels

• 1400V DC isolation between channels and bus

• 750V DC isolation between channels and ground

• First-order digital filtering for noise reduction

• Cold junction compensation via external Pt100 probe

• Read cycle: 200 ms (thermocouple) / 400 ms (RTD)

• Common mode rejection: 120 dB at 50/60 Hz

• LED indicators: RUN (green), per-channel diagnostic (green), ERR (red), I/O (red)

• 40-way FCN connector for electrical connection

• IP20 protection for control cabinet environments

• 0°C to +60°C operating temperature

• EAC, RCM, UL, CSA, Merchant Navy, CE certified

• Meets IEC 61131-2 and UL 508 standards

Applications:

• High-precision temperature measurement with thermocouples and RTDs

• Millivolt signal acquisition from low-level sensors and transducers

• Process monitoring and control in medium to large process applications

• Multi-zone furnace and oven temperature monitoring

• Industrial automation and data acquisition systems

• OEM equipment requiring precise low-level analog input

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• Modicon X80 I/O backplane and racks

• EcoStruxure Control Expert (formerly Unity Pro) software

• Modicon X80 digital and analog I/O modules

Related Products:

• BMXART0414 – 4-channel version (same series, lower density)

• BMXFTB4020 – 40-way terminal block for field wiring

• BMXFCW301S/501S – Shielded cord set with FCN connector (3m/5m)

• BMXFCA152/302/502 – FCN to SUB-D connector cable (1.5m/3m/5m)

• BMXXBP0400 – 4-slot X80 backplane

• BMXXBP0800 – 8-slot X80 backplane

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
