BMXCPS2000 20W AC Power Supply Module 100-240V | Schneider Electric

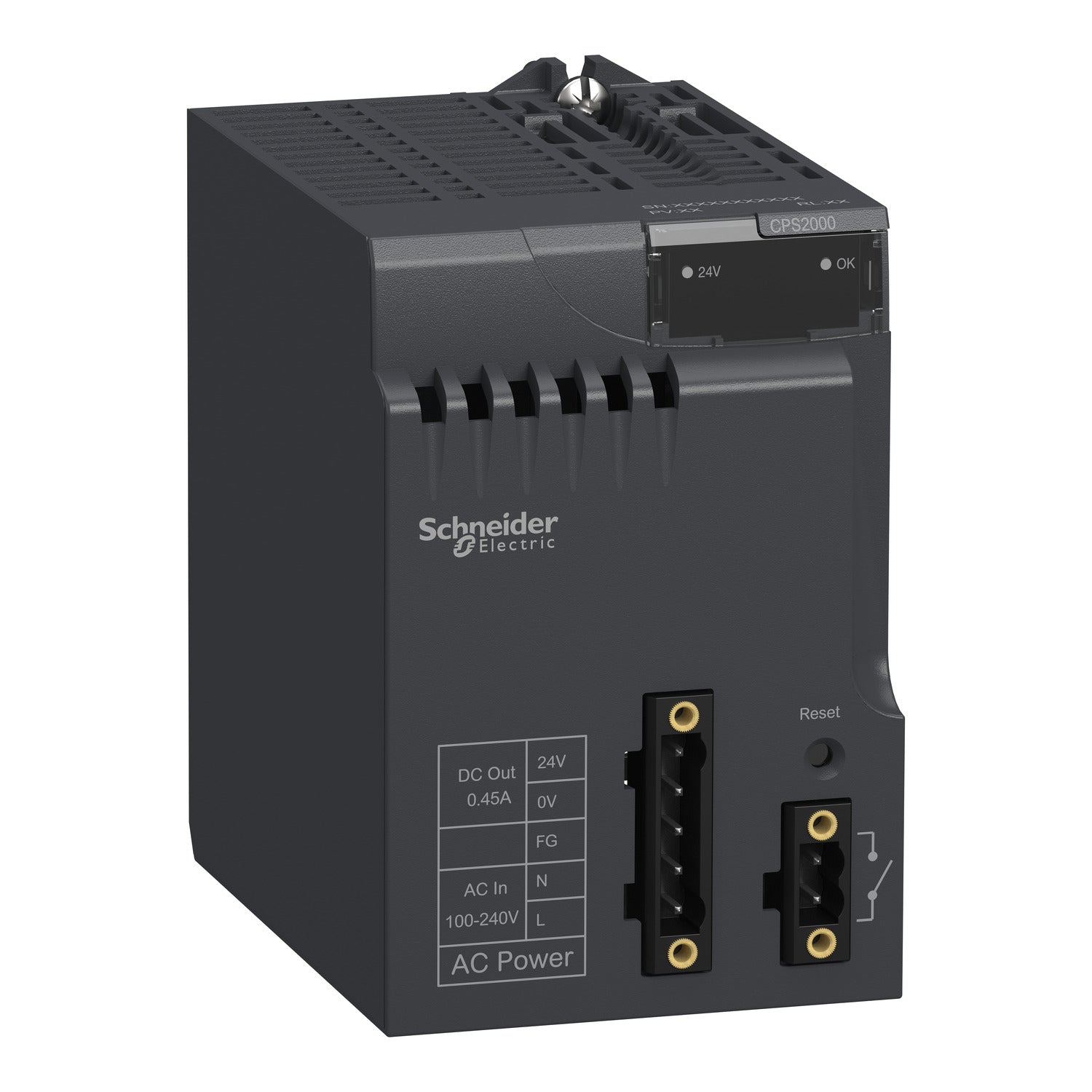

The Original New Schneider Electric BMXCPS2000 is a 20 W AC power supply module for the Modicon X80 and M340 automation platforms, designed to provide reliable and stable power to the backplane and connected modules. It converts 100-240 V AC input into multiple DC outputs, including 3.3 V for I/O module logic, 24 V for I/O modules and processors, and a dedicated 24 V sensor supply for powering input sensors directly from the front panel. Part of the Modicon X80 common I/O platform for M340 and M580 PACs, it features comprehensive protection, a RESET pushbutton for cold restart, and LED status indicators. As the standard replacement for the TSXPSY2600M and TSXPSY2600MC, the BMXCPS2000 ensures continuity for existing systems.

Core Engineering Highlights:
20 W total secondary power | 100-240 V AC input (85-264 V limit) | 3.3 V DC / 2.5 A I/O logic supply | 24 V DC / 0.7 A I/O and processor supply | 24 V DC / 0.45 A sensor supply | Internal fuse + overload/overvoltage/short-circuit protection | Reset pushbutton | 0.3 kg | IP20 | 0°C to +60°C operating

Key Features:

• Original New Schneider Electric BMXCPS2000 module

• 20 W total secondary power with dedicated 24 V sensor supply via front-panel 5-way connector

• 100-240 V AC wide-range input (85-264 V AC operating limits)

• Provides three separate DC outputs: 8.3 W @ 3.3 V / 2.5 A for I/O logic; 16.8 W @ 24 V / 0.7 A for I/O and processor; 10.8 W @ 24 V / 0.45 A for sensors

• Comprehensive circuit protection: internal fuse (primary), overload, overvoltage, and short-circuit protection (secondary)

• RESET push-button for cold restart

• Two green status LEDs: rack voltage OK and sensor voltage OK

• ALARM relay output for external fault signaling

• IP20 protection for control cabinet environments

• DIN rail mounting on X80 backplane

• 0°C to +60°C operating temperature

• 3 gn vibration resistance, 30 gn shock resistance

• CE, UL, CSA, RCM, EAC, Merchant Navy certified

• EU RoHS and China RoHS compliant

Applications:

• Rack power supply for Modicon X80 and M340 automation systems

• Providing 24 V DC sensor power directly to input sensors

• Powering I/O modules, processors, and communication modules in M340 and M580 PAC configurations

• Main base and extension base power distribution

• Industrial automation control panels and machine control cabinets

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• Modicon X80 I/O backplanes and racks (not compatible with BMEXBP..02)

• Modicon X80 digital and analog I/O modules

• EcoStruxure Control Expert (formerly Unity Pro) software

• Direct replacement for TSXPSY2600M and TSXPSY2600MC

Important Installation Notes:

• For use in low-voltage installations with proper main power branch protection

• Power supply intended for installation in a pollution degree 2 environment

• ALARM relay output available for external fault monitoring

• 24 V_SENSORS output is dedicated for powering input sensors and is limited in available current

• Overcurrent protection is required for the 24 V_SENSORS output

Related Products:

• BMXCPS3500 – 36 W AC power supply module (higher power)

• BMXCPS4002 – 40 W AC power supply module (redundant)

• BMXCPS2010 – 24 V DC input power supply module

• BMXDDI3202K – 32‑channel discrete input module

• BMXDDO3202K – 32‑channel discrete output module

• BMXAMI0810 – 8‑channel analog input module

• BMXXBP0400 – 4‑slot X80 backplane

• BMXXBP0800 – 8‑slot X80 backplane

• BMXFTB2000 – 20‑way terminal block for X80 I/O
