BMXCPS2010 24V DC Power Supply Module 16.8W | Schneider Electric

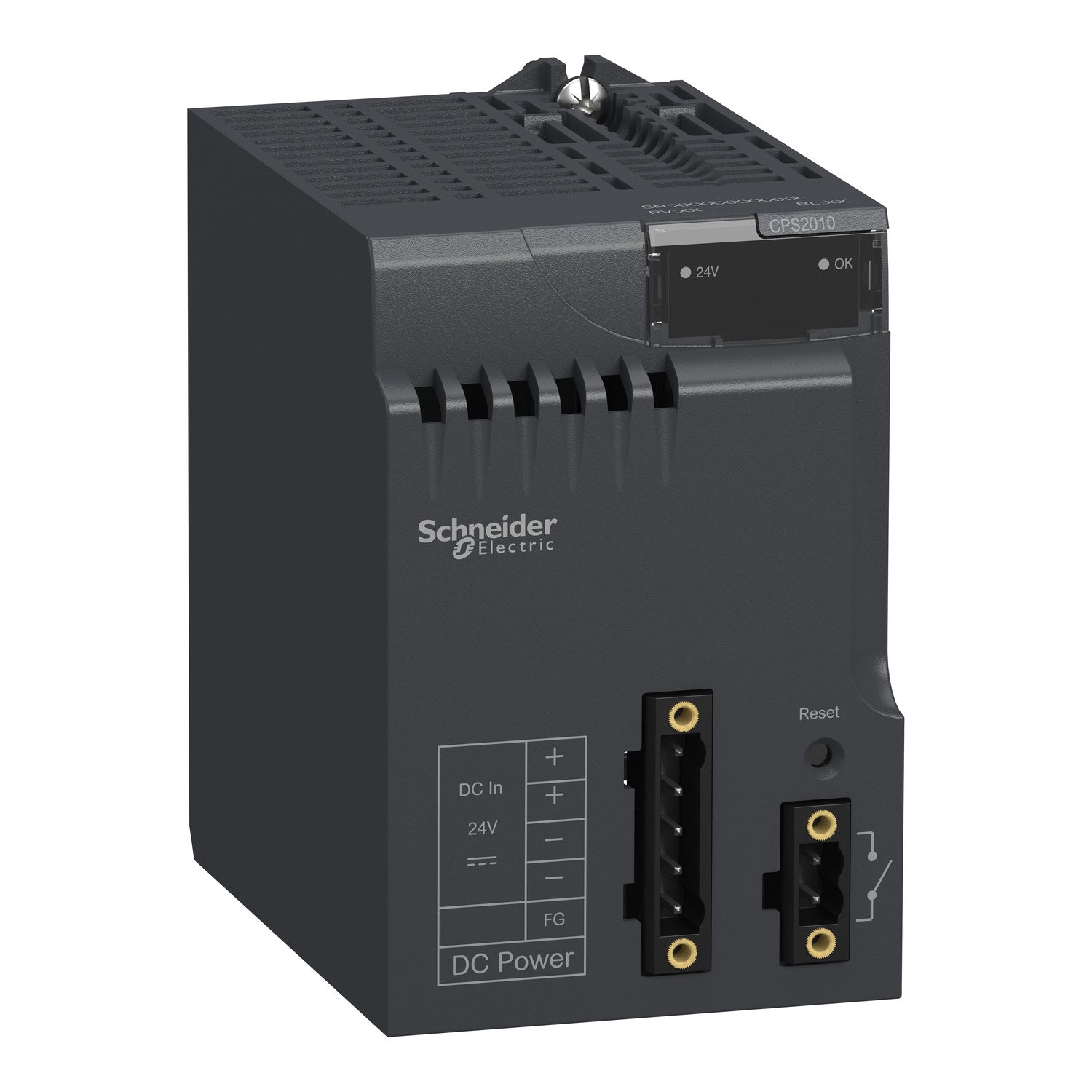

The Original New Schneider Electric BMXCPS2010 is a 24V DC input power supply module for the Modicon X80 I/O platform, designed to provide stable, isolated power to the backplane and connected modules in Modicon M340 and M580 Programmable Automation Controllers (PACs). It delivers 16.8W for 24V DC I/O modules and processors, plus 8.3W for 3.3V DC I/O module logic power. The module features a RESET push-button for cold restart, comprehensive overload, overvoltage, and short-circuit protection, and a green status LED for rack voltage monitoring. Part of the Modicon X80 common platform, it reduces maintenance and training costs with compatible modules and consistent training for different Programmable Automation Controllers (PACs).

Core Engineering Highlights:
24V DC isolated input (18–31.2V range)| 16.8W (24V DC) + 8.3W (3.3V DC) secondary power| 0.7A @ 24V DC / 2.5A @ 3.3V DC outputs| 8.5W max power dissipation| RESET push-button cold restart| Internal fuse + overload/overvoltage/short-circuit protection| 4,886,000 hours MTBF| IP20 | 0.29kg| 0°C to +60°C operating| 1 x green status LED

Key Features:

• Original New Schneider Electric BMXCPS2010 module

• 24V DC isolated input with 18–31.2V operating range

• Dual secondary outputs: 16.8W (24V DC) for I/O modules and processors, 8.3W (3.3V DC) for I/O module logic

• 0.7A output current at 24V DC and 2.5A at 3.3V DC

• RESET push-button for cold restart after fault conditions

• Comprehensive protection: internal fuse (primary), overload, overvoltage, and short-circuit protection (secondary)

• Alarm relay output for external fault monitoring

• 1 green status LED for rack voltage OK indication

• IP20 protection for control cabinet environments

• 0°C to +60°C operating temperature range

• 4,886,000 hours MTBF for high reliability

• Immunity to microbreaks: 1 ms

• Vibration resistance: 3 gn, Shock resistance: 30 gn

• CE, UL, CSA, RCM, EAC, Merchant Navy certified

• Meets EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201 standards

Applications:

• Rack power supply for Modicon X80, M340, and M580 automation systems

• Providing 24V DC power to I/O modules and processors in Modicon X80 racks

• Powering 3.3V DC logic circuits for I/O modules

• Control cabinet power distribution in industrial automation panels

• Medium to large process applications

• Main base and extension base power distribution in X80 systems

Technical Specifications:

Supply & Power:

Protection:

Physical:

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• X80 backplanes (not compatible with BMEXBP..02)

• Modicon X80 digital and analog I/O modules

• EcoStruxure Control Expert (formerly Unity Pro) software

Related Products:

• BMXCPS2000 – 20W AC power supply module (100-240V AC input)

• BMXCPS3500 – 36W AC power supply module (higher power)

• BMXCPS3020 – 31.2W DC power supply module (24-48V DC input)

• BMXXBP0400 – 4-slot X80 backplane

• BMXXBP0800 – 8-slot X80 backplane

• BMXDDI3202K – 32-channel discrete input module

• BMXDDO3202K – 32-channel discrete output module
