BMXCPS3020 24-48V DC Power Supply Module 31.2W | Schneider Electric

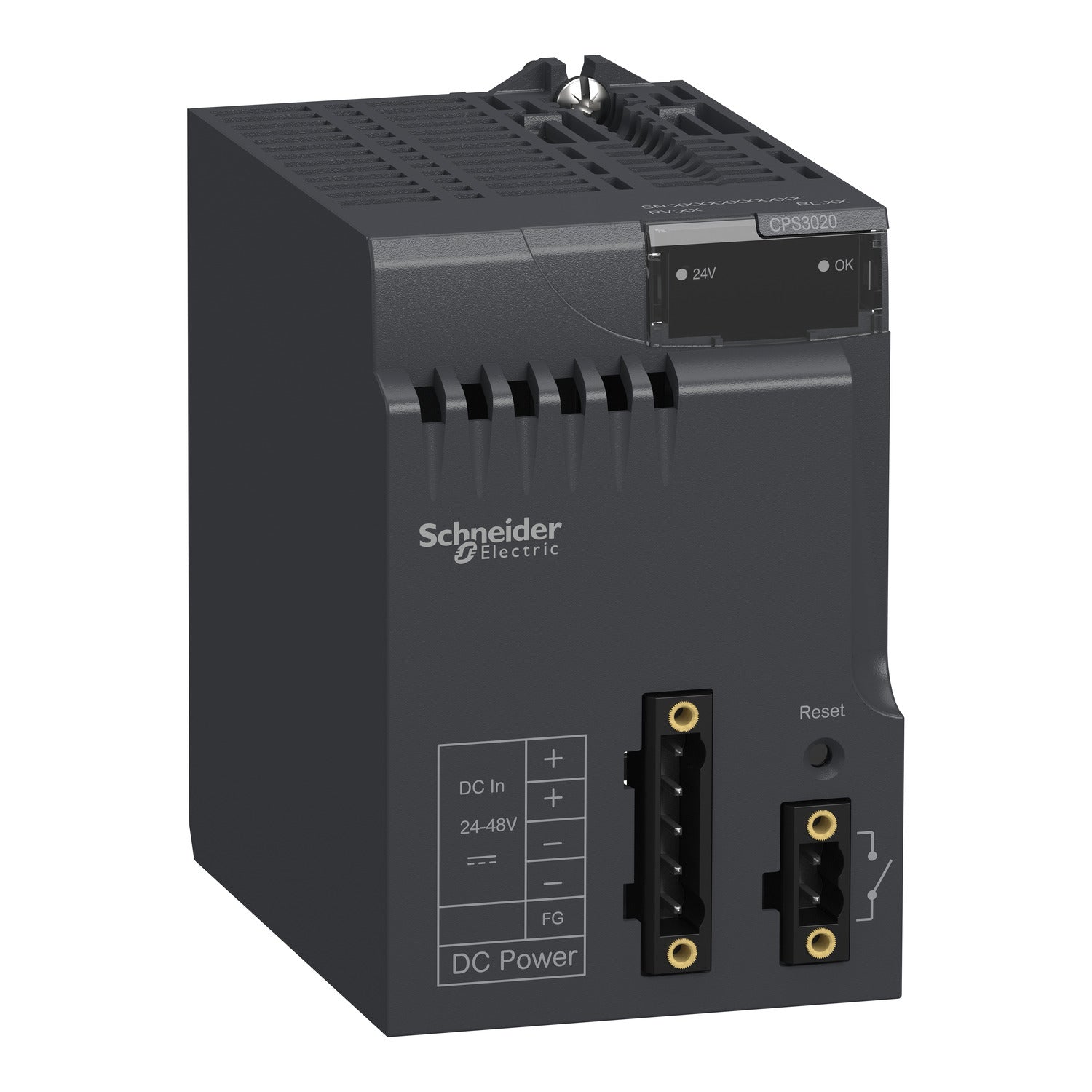

The Original New Schneider Electric BMXCPS3020 is a 24-48V DC input power supply module for the Modicon X80 I/O platform, designed to provide stable, isolated power to the backplane and connected modules in Modicon M340 and M580 Programmable Automation Controllers (PACs). It delivers 31.2W for 24V DC I/O modules and processors, plus 15W for 3.3V DC I/O module logic power. The module features a RESET push-button for cold restart, comprehensive overload, overvoltage, and short-circuit protection, and a green status LED for rack voltage monitoring. Part of the Modicon X80 common platform, it reduces maintenance and training costs with compatible modules and consistent training for different Programmable Automation Controllers (PACs). It has a case which provides IP20 protection of the electronics.

Core Engineering Highlights:
24-48V DC isolated input (18-62.4V range)| 31.2W (24V DC) + 15W (3.3V DC) secondary power| 1.3A @ 24V DC / 4.5A @ 3.3V DC outputs| 8.5W max power dissipation| 4,600,000 hours MTBF| 0.34kg net weight| IP20 protection| -25°C to +70°C operating temperature| RESET push-button cold restart| 1 x green status LED

Key Features:

• Original New Schneider Electric BMXCPS3020 module

• 24-48V DC isolated input with 18-62.4V operating range

• Dual secondary outputs: 31.2W (24V DC) for I/O modules and processors, 15W (3.3V DC) for I/O module logic

• 1.3A output current at 24V DC and 4.5A at 3.3V DC

• RESET push-button for cold restart after fault conditions

• Comprehensive protection: internal fuse (primary), overload, overvoltage, and short-circuit protection (secondary)

• Alarm relay output for external fault monitoring

• 1 green status LED for rack voltage OK indication

• IP20 protection for control cabinet environments

• Extended temperature range: -25°C to +70°C for harsh environments

• 4,600,000 hours MTBF for high reliability

• Immunity to microbreaks: 1 ms

• Vibration resistance: 3 gn, Shock resistance: 30 gn

• ATEX zone 2/22 and IECEx zone 2/22 certified for hazardous locations

• Resistance to gas, dust, sand, salt, and mold growth per IEC 60721-3-3

• CE, UL, CSA, RCM, EAC, Merchant Navy certified

Applications:

• Rack power supply for Modicon X80, M340, and M580 automation systems

• Providing 24V DC power to I/O modules and processors in Modicon X80 racks

• Powering 3.3V DC logic circuits for I/O modules

• Severe environment applications with wide temperature ranges (-25°C to +70°C)

• Hazardous location applications (ATEX zone 2/22, IECEx zone 2/22)

• Control cabinet power distribution in industrial automation panels

• Medium to large process applications

• Main base and extension base power distribution in X80 systems

Technical Specifications:

Supply & Power:

Protection:

Physical:

Environmental:

Certifications:

• CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22

• Standards: IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, IEC 60079-0

• Directives: Low Voltage 2014/35/EU, EMC 2014/30/EU, ATEX 2014/34/EU

• RoHS and REACH compliant

• Green Premium product

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• X80 backplanes (not compatible with BMEXBP..02)

• Modicon X80 digital and analog I/O modules

• EcoStruxure Control Expert (formerly Unity Pro) software

Related Products:

• BMXCPS2000 – 20W AC power supply module (100-240V AC input)

• BMXCPS2010 – 16.8W DC power supply module (24V DC input)

• BMXCPS3500 – 36W AC power supply module (higher power)

• BMXCPS3020H – Severe environment version (same specifications, coated for harsh conditions)

• BMXXBP0400 – 4-slot X80 backplane

• BMXXBP0800 – 8-slot X80 backplane

• BMXXBP1200 – 12-slot X80 backplane
