BMXCPS3500 36W AC Power Supply Module 100-240V | Schneider Electric

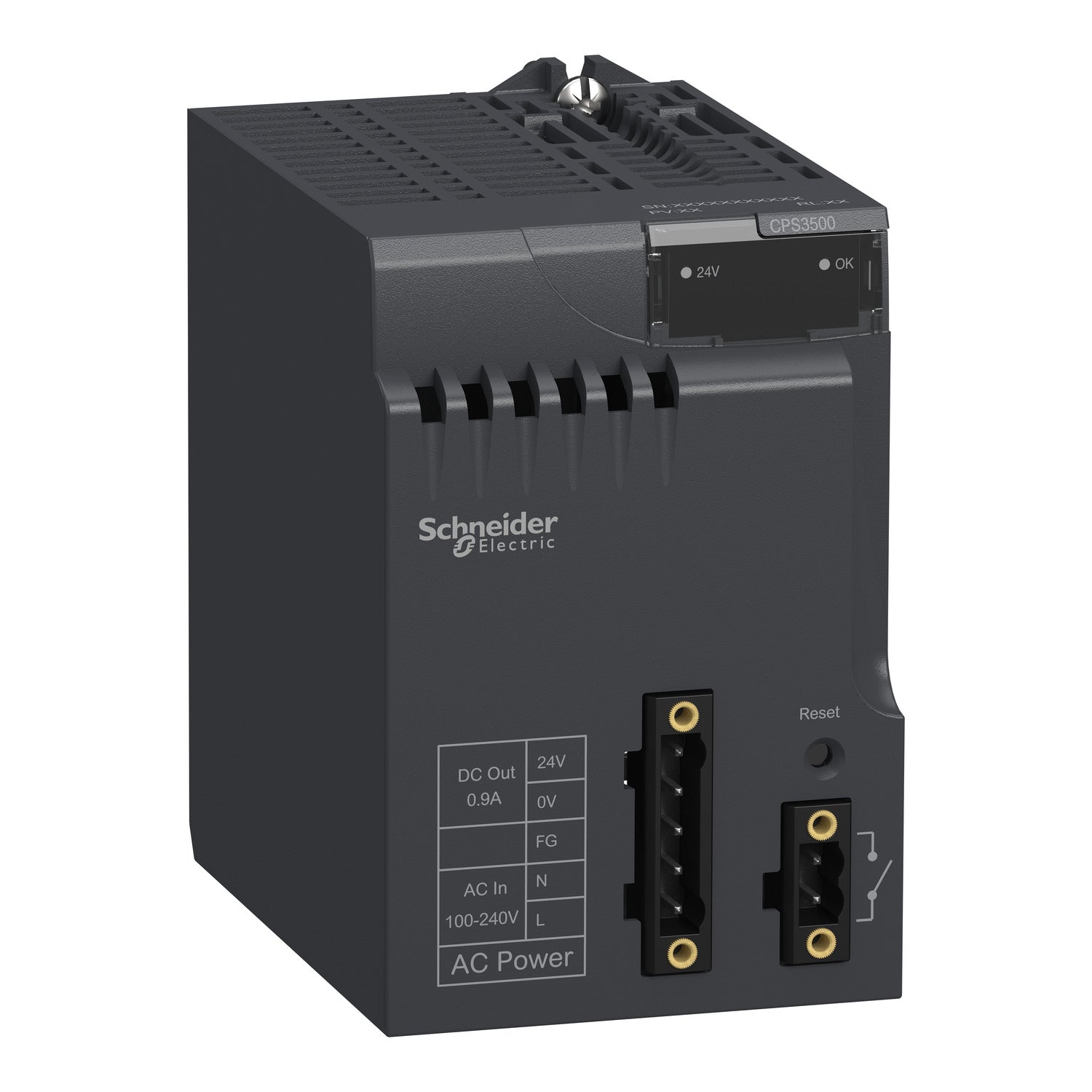

The Original New Schneider Electric BMXCPS3500 is a 36W AC power supply module for the Modicon X80 and M340 automation platforms, designed to provide reliable, stable power to the backplane and connected modules. It converts 100‑240 V AC input into three independent DC outputs: 31.2 W at 24 V DC for I/O modules and the processor, 21.6 W at 24 V DC for sensor power, and 15 W at 3.3 V DC for I/O module logic. The front‑panel 24 V sensor output eliminates the need for a separate power supply for input sensors. The BMXCPS3500 features a RESET push‑button for cold restart, comprehensive overload, overvoltage, and short‑circuit protection, and two green status LEDs for rack and sensor voltage monitoring. Part of the Modicon X80 common platform, it reduces maintenance and training costs with compatible modules and consistent training for different Programmable Automation Controllers (PACs). This module is the standard replacement for the TSXPSY3610M.

Core Engineering Highlights:
36W total secondary power | 100‑240V AC input (85‑264V limit) | 31.2W (24V DC, I/O + processor) + 21.6W (24V DC, sensors) + 15W (3.3V DC, I/O logic) | 4.5A @ 3.3V DC / 1.3A @ 24V DC (I/O) / 0.9A @ 24V DC (sensors) | 8.5W max power dissipation | 4,300,000 hours MTBF | 0.36kg net weight | IP20 protection | 0°C to +60°C operating temperature | RESET push-button cold restart

Key Features:

• Original New Schneider Electric BMXCPS3500 module

• 36W total secondary power with three independent DC outputs

• 100‑240V AC wide‑range input (85‑264V AC operating limits)

• Provides 31.2W @ 24V DC for I/O modules and processor

• Provides 21.6W @ 24V DC sensor power supply via front‑panel output

• Provides 15W @ 3.3V DC for I/O module logic power

• 4.5A output current at 3.3V DC, 1.3A at 24V DC (I/O), 0.9A at 24V DC (sensors)

• RESET push‑button for cold restart after fault conditions

• Comprehensive protection: internal fuse (primary); overload, overvoltage, short‑circuit protection (secondary)

• Two green status LEDs: rack voltage OK and sensor voltage OK

• Alarm relay output for external fault monitoring

• IP20 protection for control cabinet environments

• 0°C to +60°C operating temperature range

• 4,300,000 hours MTBF for high reliability

• 1 ms immunity to microbreaks

• Vibration resistance: 3 gn, Shock resistance: 30 gn

• CE, UL, CSA, RCM, EAC, Merchant Navy certified

• Green Premium product with RoHS and REACH compliance

• Direct replacement for TSXPSY3610M

Applications:

• Rack power supply for Modicon X80, M340, and M580 automation systems

• Providing 24V DC power to I/O modules, processors, and field sensors

• Powering 3.3V DC logic circuits for I/O modules

• Control cabinet power distribution in industrial automation panels

• Medium to large process applications requiring up to 36W system power

• Main base and extension base power distribution in X80 systems

Technical Specifications:

Supply & Power:

Protection:

Physical & Environmental:

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• X80 backplanes (not compatible with BMEXBP..02)

• Modicon X80 digital and analog I/O modules

• EcoStruxure Control Expert (formerly Unity Pro) software

• Direct replacement for TSXPSY3610M

Related Products:

• BMXCPS2000 – 20W AC power supply module (lower power)

• BMXCPS2010 – 16.8W DC power supply module (24V DC input)

• BMXCPS3020 – 31.2W DC power supply module (24‑48V DC input)

• BMXCPS4002 – 40W AC power supply module (redundant)

• BMXXBP0400 – 4‑slot X80 backplane

• BMXXBP0800 – 8‑slot X80 backplane

• BMXXBP1200 – 12‑slot X80 backplane

• BMXP342020 – Modicon M340 processor module

• BMXDDI3202K – 32‑channel discrete input module

• BMXDDO3202K – 32‑channel discrete output module
