BMXCPS4002 Modicon X80 40W Redundant Power Supply 100-240V AC | Schneider Electric

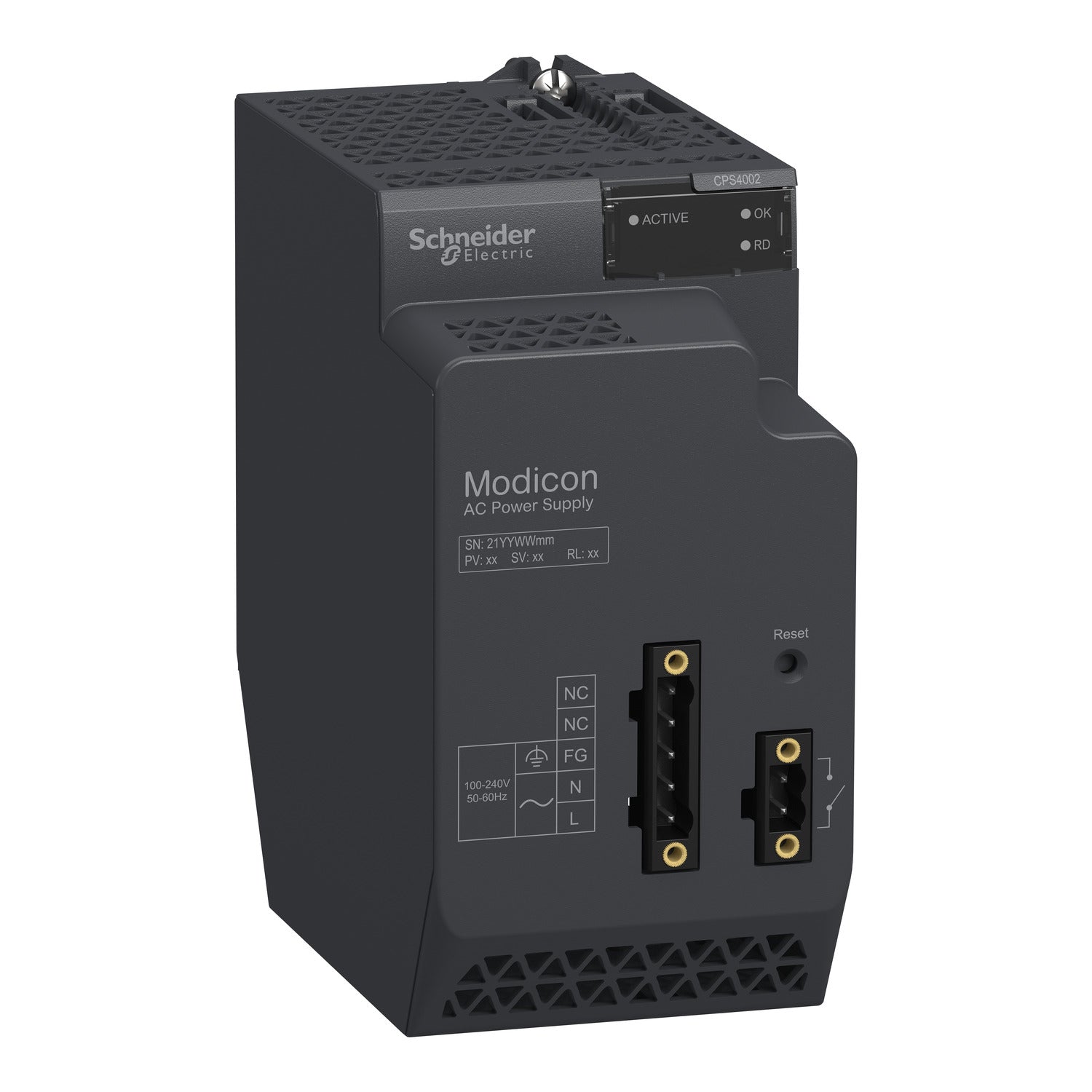

The Original New Schneider Electric BMXCPS4002 is a redundant AC power supply module for the Modicon X80 automation platform. Designed for use with Modicon M580 and M340 Programmable Automation Controllers (PACs), it provides 40 W total output power (24 V DC and 3.3 V DC) to the backplane, CPU, and I/O modules. The module supports hot-standby redundancy configurations, advanced network diagnostics, and is compatible with all X80 backplanes. It features built‑in overload, overvoltage, and short‑circuit protection, and includes a RESET push‑button for cold restart. Ideal for medium to large process applications requiring high availability and system reliability.

Core Engineering Highlights:
40 W total output power (24 V DC + 3.3 V DC) | 100‑240 V AC wide‑range input (85‑264 V AC limits) | 5.5 A @ 3.3 V DC / 1.67 A @ 24 V DC output currents | Hot‑standby redundancy support | Advanced network diagnostics (temperature, uptime, redundancy status, remaining life) | 0.07 kVA apparent power | 8.5 W max power dissipation | 792,000 hours MTBF | IP20 protection | 0°C to +60°C operating temperature

Key Features:

• Original New Schneider Electric BMXCPS4002 module

• Redundant AC power supply for Modicon X80 racks (M340/M580)

• Secondary power: 40 W at 24 V DC (I/O module power) / 18 W at 3.3 V DC (logic power)

• Wide input range: 85‑264 V AC, 47‑63 Hz

• Output currents: 5.5 A at 3.3 V DC, 1.67 A at 24 V DC

• Supports redundant hot‑standby (HSBY) configurations

• Advanced diagnostics via network: temperature sensing, redundancy test, uptime duration, redundancy information, remaining lifetime

• Built‑in protection: overload, overvoltage, short‑circuit on secondary circuits

• Internal primary fuse (not accessible)

• RESET push‑button for cold restart

• Status LEDs: OK (green), redundancy OK (green), power supply status (green)

• IP20 protection rating for control cabinet installation

• 792,000 hours MTBF for high reliability

• RoHS compliant, Green Premium product

• Replaces: 140CPS11420, 140CPS12400, 140CPS12420, 140CPS52400, TSXPSY8500M

Applications:

• Redundant power supply for Modicon M580 and M340 PAC systems

• High‑availability process control and manufacturing automation

• Hot‑standby (HSBY) CPU redundancy configurations

• Medium to large process applications

• Control cabinet power distribution for X80 I/O racks

• Critical infrastructure requiring power supply redundancy

Technical Specifications:

System Compatibility:

• Compatible with Modicon X80 backplanes (all types)

• Used with Modicon M580 and M340 Programmable Automation Controllers (PACs)

• Supports redundant power configurations with BMEXBP0602 or BMEXBP1002 redundant backplanes

• Compatible with all X80 I/O modules, BMX and BME processors, and BMXCPS power supplies

• Suitable for hot‑standby (HSBY) CPU redundancy systems

Related Products:

• BMXCPS2000 – 20 W AC power supply (lower capacity)

• BMXCPS3500 – 36 W AC power supply (mid capacity)

• BMXCPS2010 – 16.8 W DC power supply (24 V DC input)

• BMXCPS3020 – 31.2 W DC power supply (24‑48 V DC input)

• BMEXBP0602 – 6‑slot redundant backplane for X80

• BMEXBP1002 – 10‑slot redundant backplane for X80

• BMXFTB2000 – 20‑pin terminal block for X80 modules

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
