BMXDDI1602 16-Channel Discrete Input Module 24V DC Sink | Schneider Electric

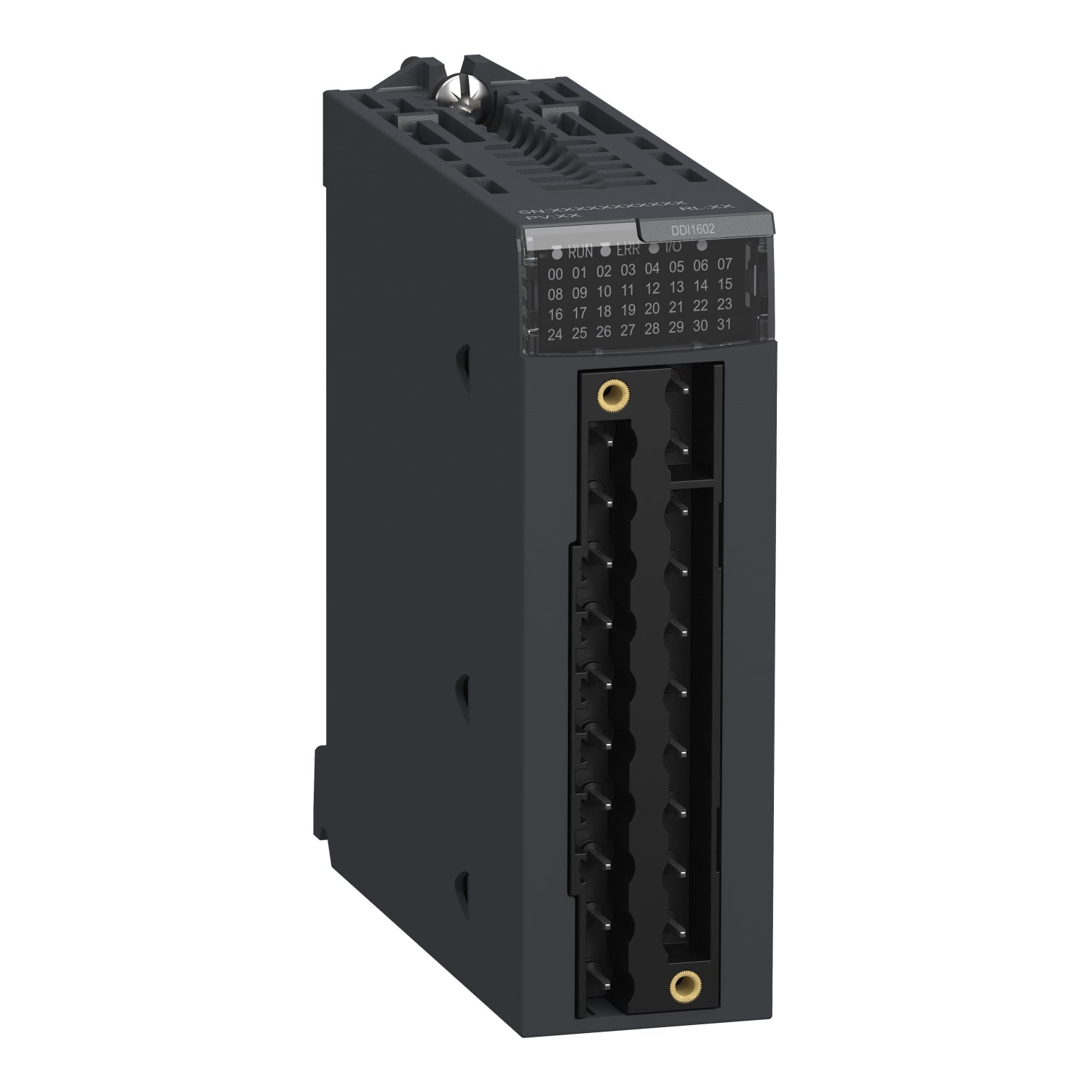

The Original New Schneider Electric BMXDDI1602 is a 16-channel discrete input module for the Modicon X80 I/O platform, designed to acquire digital signals from field devices in industrial automation systems. It provides 16 isolated inputs with positive logic (sink configuration) for 24V DC signals, supporting 2-wire and 3-wire proximity sensors per IEC 60947-5-2 and IEC 61131-2 Type 3 standards. Part of the common I/O platform for Modicon M340 and M580 Programmable Automation Controllers (PACs), this module offers a 4 ms typical response time, 6.8 kΩ input impedance, and reverse polarity protection with external fuses per group. It is supplied with a 20‑way removable terminal block.

Core Engineering Highlights:
16 isolated discrete inputs (sink/positive logic) | 24V DC | 3.5 mA typical input current | 6.8 kΩ input impedance | 4 ms typical response time (7 ms max) | Reverse polarity protection + 0.5A fuse per group | 2.5 W power dissipation | 738,749 hours MTBF | IP20 protection | 0°C to +60°C operating temperature | 20‑way removable terminal block

Key Features:

• Original New Schneider Electric BMXDDI1602 module

• 16 isolated discrete input channels with positive logic (sink configuration)

• 24V DC rated input voltage (19-30V sensor supply range)

• 3.5 mA typical input current per channel

• 6.8 kΩ input impedance for reliable signal detection

• 4 ms typical response time (7 ms max) for fast signal acquisition

• Compatible with 2-wire and 3-wire proximity sensors per IEC 60947-5-2 and IEC 61131-2 Type 3

• Reverse polarity protection and 0.5A fast-blow fuse per group of channels

• Sensor fault detection: <14V DC = fault; >18V DC = sensor OK

• 2.5 W power dissipation for energy-efficient operation

• 738,749 hours MTBF for high reliability

• LED indicators: RUN (green), per-channel diagnostic (green), ERR (red), I/O (red)

• 20‑way removable terminal block for simplified wiring

• Single slot width in X80 rack

• IP20 protection for control cabinet environments

• 0°C to +60°C operating temperature

Applications:

• Digital signal acquisition from sensors, switches, and pushbuttons

• Conveyor and material handling system input expansion

• Packaging machinery and assembly line monitoring

• Factory automation and process control systems

• Medium to large process applications

• Replacement for legacy TSX7 PLC I/O modules

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• EcoStruxure Control Expert (formerly Unity Pro) software

• Compatible with 2-wire and 3-wire proximity sensors

• Replaces legacy TSX7 PLC I/O modules

Related Products:

• BMXDDI1602H – Harsh environment version (–25°C to +70°C)

• BMXDDI3202K – 32-channel discrete input module (higher density)

• BMXDDO1602 – 16-channel discrete output module

• BMXFTB2000 – 20‑way removable screw terminal block for X80 I/O

• BMXFTB2010 – 20‑way removable screw clamp terminal block

• BMXXBP0400 – 4‑slot X80 backplane

• BMXXBP0800 – 8‑slot X80 backplane
