BMXDDI6402K 64-Channel Discrete Input Module 24V DC Positive | Schneider Electric

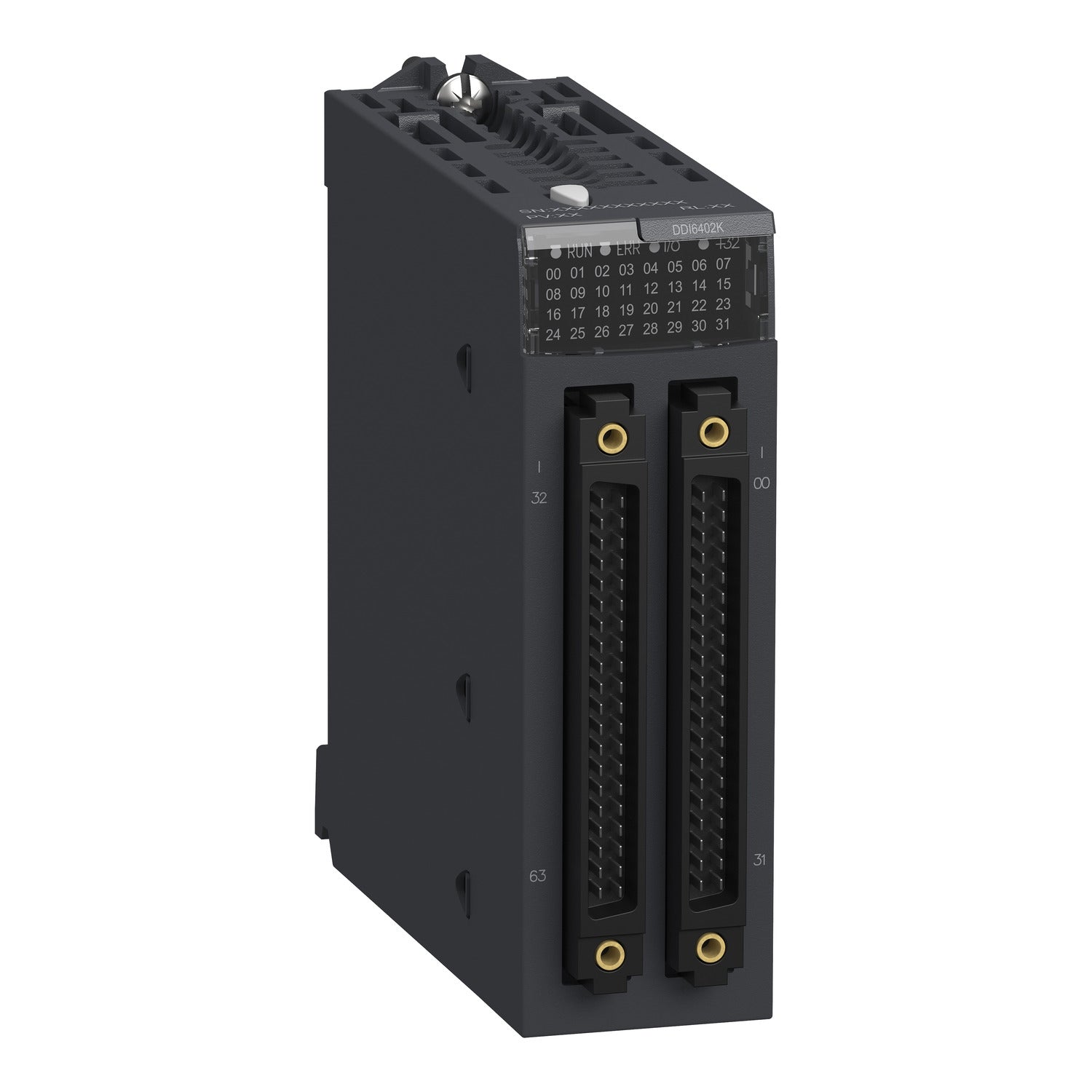

The Original New Schneider Electric BMXDDI6402K is a 64-channel discrete input module for the Modicon X80 I/O platform, designed to acquire digital signals from field devices in high-density industrial automation applications. It provides 64 isolated inputs with positive (sink) logic for 24V DC signals. Part of the common I/O platform for Modicon M340 and M580 Programmable Automation Controllers (PACs), this module reduces maintenance and training costs with compatible modules and unique training for different Programmable Automation Controllers (PACs).

Core Engineering Highlights:
64 isolated discrete inputs (positive logic/sink) | 24V DC | 1 mA nominal input current | 4 ms typical response time (7 ms max) | 40 kΩ input impedance | 1500V AC isolation (channels to bus) | 510,000 hours MTBF | 4.3 W power dissipation | IP20 protection | 0°C to +60°C operating temperature | Two 40-way FCN connectors

Key Features:

• Original New Schneider Electric BMXDDI6402K module

• 64 isolated discrete input channels with positive (sink) logic

• 24V DC rated input voltage

• 1 mA typical input current per channel

• 4 ms typical response time (7 ms max)

• 40 kΩ input impedance for reliable signal detection

• 1500V AC isolation between channels and backplane bus

• 510,000 hours MTBF for high reliability

• External fuse per group (0.5A fast blow) – fuse not included

• Hot swapping fallback for reduced downtime

• Sensor supply range: 19–30V DC

• LED indicators: per channel (green for channel diagnostic), 32-channel group indicator (green), module RUN (green), module ERR (red), module I/O (red)

• Two 40‑way FCN connectors for high-density wiring

• IP20 protection for control cabinet environments

• 0°C to +60°C operating temperature

• EAC, RCM, UL, CSA, Merchant Navy, CE certified

Applications:

• High-density digital signal acquisition from sensors, switches, and pushbuttons

• Conveyor and material handling system input expansion

• Packaging machinery and assembly line monitoring

• Factory automation and process control systems

• Medium to large process applications

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• Modicon X80 I/O backplane and racks

• EcoStruxure Control Expert (formerly Unity Pro) software

• Modicon X80 digital and analog I/O modules

Related Products:

• BMXDDI3202K – 32-channel discrete input module (same series, lower density)

• BMXDDO6402K – 64-channel discrete output module

• BMXFTB4020 – 40-way terminal block for field wiring

• BMXFCW303 – 40-way cord set with flying leads

• BMXXBP0400 – 4‑slot X80 backplane

• BMXXBP0800 – 8‑slot X80 backplane

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
