BMXDDO1602 16-Channel Discrete Output Module 24V DC Positive | Schneider Electric

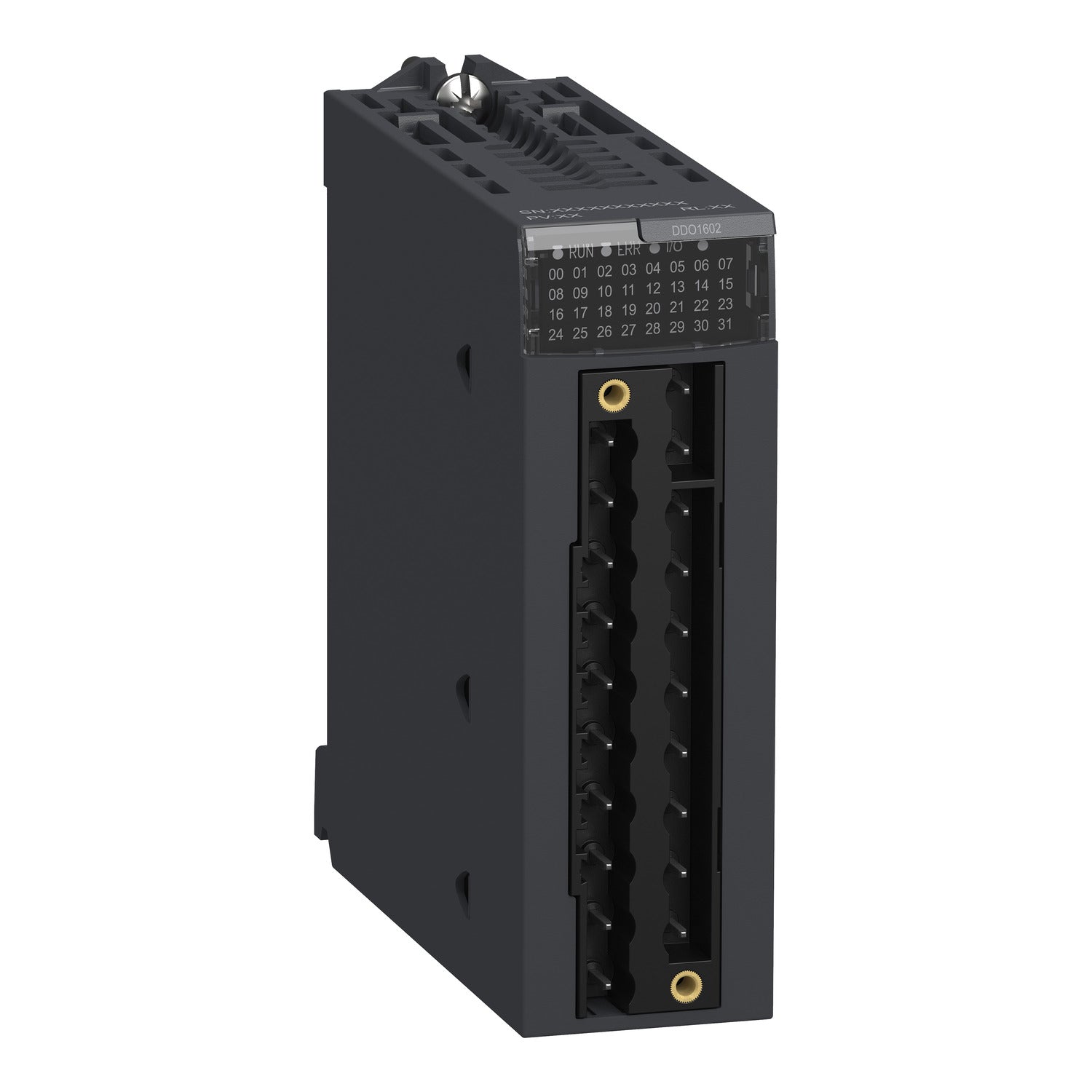

The Original New Schneider Electric BMXDDO1602 is a 16‑channel discrete output module for the Modicon X80 I/O platform, designed to control field devices such as actuators, solenoids, relays, and indicator lights in industrial automation systems. It provides 16 solid‑state outputs with positive (source) logic for 24V DC loads at 0.5A per channel. Part of the common I/O platform for Modicon M340 and M580 Programmable Automation Controllers (PACs), this module supports output paralleling for higher current capability and offers comprehensive protection features.

Core Engineering Highlights:
16 solid‑state outputs (positive logic/source) | 24V DC (19‑30V DC range) | 0.5A per channel / 0.625A per channel maximum | 1.2 ms response time| 4W power dissipation| 79mA typical current consumption at 3.3V DC| External fuse, reverse polarity, short‑circuit, overload, overvoltage protection| IP20 protection | 0°C to +60°C operating temperature | 20‑way removable terminal block | 0.12 kg weight

Key Features:

• Original New Schneider Electric BMXDDO1602 module

• 16 solid‑state discrete output channels with positive (source) logic

• 24V DC rated output voltage (19‑30V DC range)

• 0.5A output current per channel (0.625A max)

• 10A maximum current per module

• 1.2 ms response time for high‑speed switching

• <1.2V maximum voltage drop at state 1

• 0.5mA maximum leakage current at state 0

• Reverse polarity protection via reverse mounted diode

• External short‑circuit protection with 2A fuse

• Overload protection with electronic circuit breaker and current limiter

• Overvoltage protection with transil diode

• Outputs can be paralleled (2 maximum) for higher current capability

• 6W maximum tungsten load

• LED indicators: RUN (green), per‑channel diagnostic (green), ERR (red), I/O (red)

• 20‑way removable terminal block for simplified wiring

• Single slot width in X80 rack

• IP20 protection for control cabinet environments

• 0°C to +60°C operating temperature

Applications:

• Actuating solenoids, relays, and indicator lights in machine control

• Conveyor and material handling system output expansion

• Packaging machinery and assembly line control

• Factory automation and process control systems

• Medium to large process applications

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• EcoStruxure Control Expert (formerly Unity Pro) software

• Modicon X80 digital and analog I/O modules

Related Products:

• BMXDDI1602 – 16‑channel discrete input module (complementary)

• BMXDDI3202K – 32‑channel discrete input module

• BMXDDO3202K – 32‑channel discrete output module (higher density)

• BMXDDO6402K – 64‑channel discrete output module (higher density)

• BMXFTB2000 – 20‑way removable screw terminal block

• BMXFTB2010 – 20‑way removable screw clamp terminal block

• BMXXBP0400 – 4‑slot X80 backplane

• BMXXBP0800 – 8‑slot X80 backplane

• BMXXBP1200 – 12‑slot X80 backplane

• BMXCPS2000 – 20W AC power supply module for X80

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
