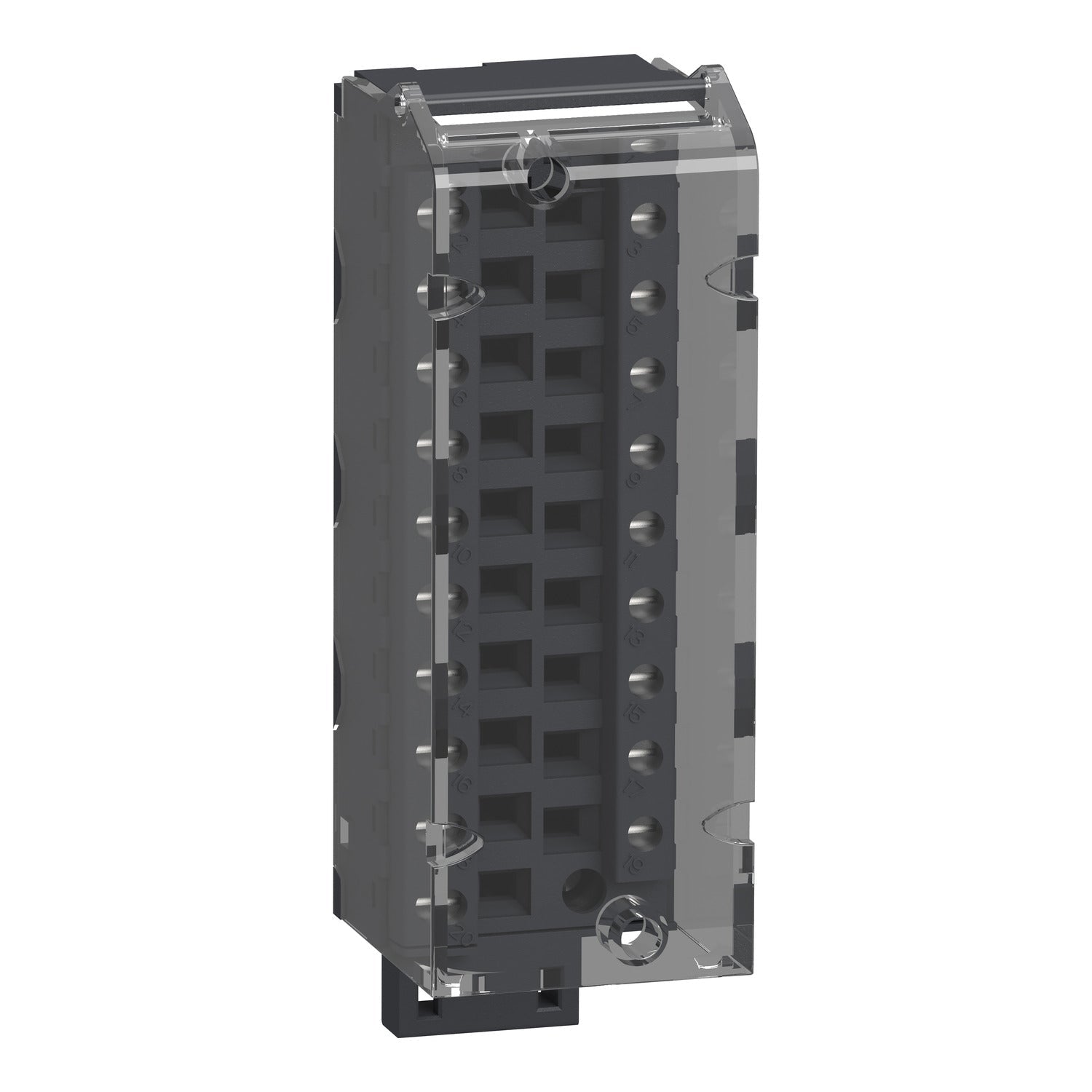

Schneider BMXFTB2000 Modicon X80 20-Pin Removable Terminal Block

Schneider Electric BMXFTB2000 is a 20‑pin removable terminal block for Modicon X80 I/O modules. Screw‑type cage connection with 1 x 0.34…1 mm² conductor cross‑section. Provides field wiring interface for analog and digital modules in X80 racks (M340/M580 systems). Allows pre‑wiring and quick module replacement without rewiring.

Applications:

• Field wiring termination for X80 analog input/output modules

• Pre‑wiring of I/O connections to reduce system downtime

• Replacement of damaged terminal blocks

• Standard accessory for Modicon X80 automation systems

Core Specifications:

• Number of pins: 20

• Connection type: Screw‑type cage terminal

• Conductor cross‑section: 1 x 0.34…1 mm² (solid or stranded)

• Stripping length: 9 mm

• Rated voltage: 60 V

• Rated current: 2 A per pin

• Material: Polycarbonate (green)

• Protection rating: IP20

Advanced Specifications:

• Torque: 0.5…0.6 Nm

• Compatible wire types: AWG 22…18

• Operating temperature: -25…70 °C

• Storage temperature: -40…85 °C

• Flammability rating: UL 94 V‑0

System Integration:

• Compatible with Modicon X80 analog modules (BMXAMI, BMXAMO, BMXART, etc.) and digital modules requiring 20‑pin connectors.

• Plugs into the front of X80 I/O modules.

• For modules requiring 40‑pin connection, use BMXFTB4020.

Related Products (upgrade path):

• Lower pin count → BMXFTB2010 (20‑pin spring terminal, no screw)

• Current model → BMXFTB2000 (20‑pin screw cage)

• Higher pin count → BMXFTB4020 (40‑pin screw cage for high‑density modules)

• Accessory → BMXFTW301S (3m shielded cable with 20‑pin connector)
