BMXFTB2010 20-Pin Removable Screw Clamp Terminal Block 1.5mm² | Schneider Electric

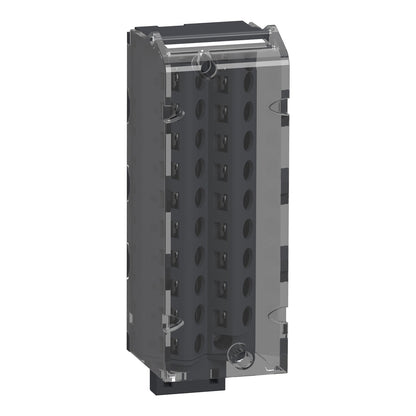

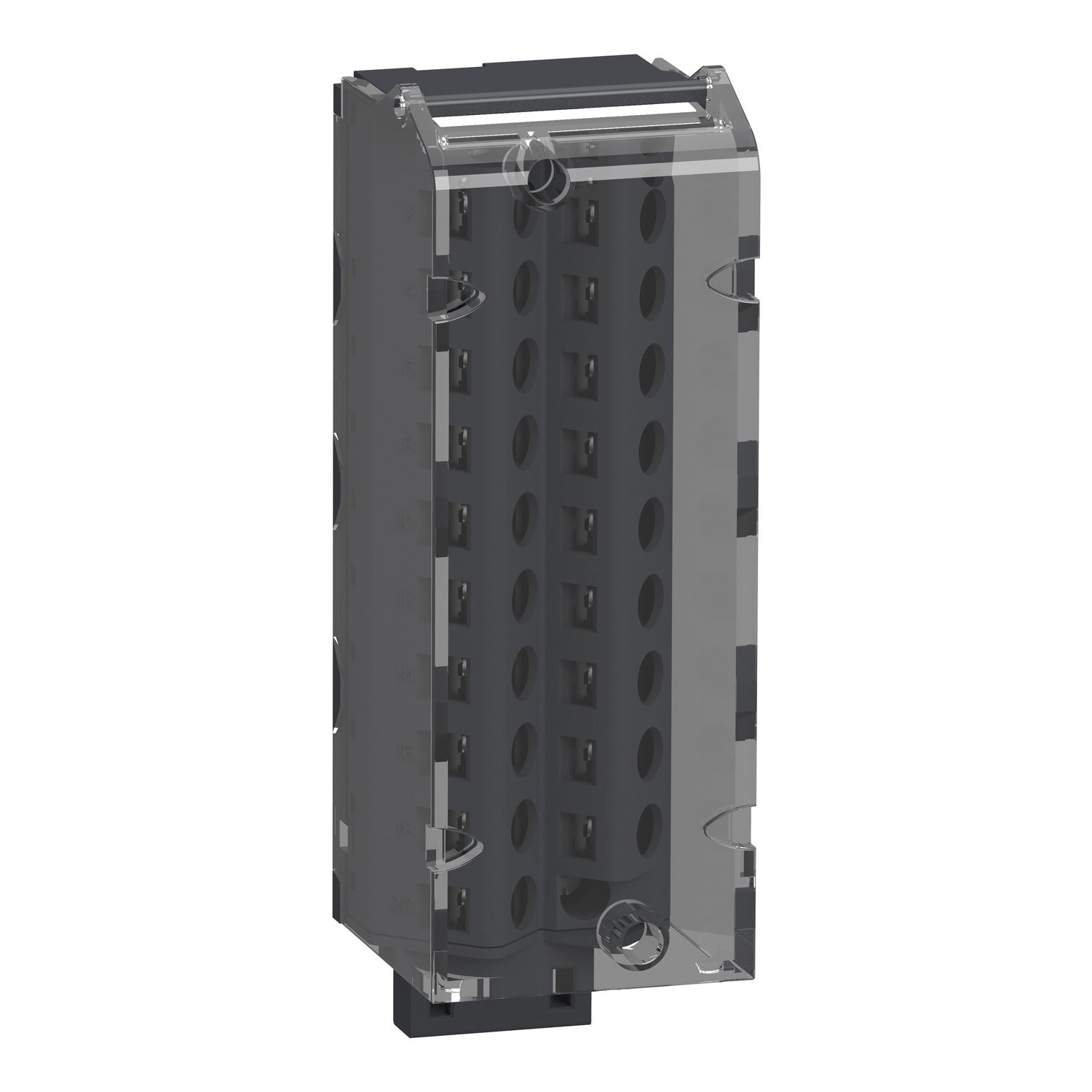

The Original New Schneider Electric BMXFTB2010 is a 20‑pin removable screw clamp terminal block for the Modicon X80 I/O platform, designed to provide a secure and reliable field wiring interface for 20‑pin I/O modules. As part of the common I/O platform for Modicon M340 and M580 Programmable Automation Controllers (PACs), this removable connection block enables pre‑wiring and quick module replacement without disturbing existing field wiring, reducing downtime during maintenance. Its screw clamp technology ensures stable, vibration‑resistant connections for demanding industrial automation applications.

Core Engineering Highlights:
20 removable screw clamp terminals | 1 or 2 x 0.34 to 1.5 mm² wire cross‑section (1 or 2 x AWG 22‑15) | Screw clamp termination for secure, vibration‑resistant connections | 0.5 N·m maximum tightening torque | Removable design for pre‑wiring and fast module replacement | 0.075 kg net weight | Modicon X80 / M340 platform compatibility | 18‑month warranty | RoHS compliant, REACH free of SVHC

Key Features:

• Original New Schneider Electric BMXFTB2010 terminal block

• 20 removable screw clamp terminals for secure and reliable wire connections

• Supports 1 or 2 x 0.34 mm² to 1.5 mm² wire cross‑section (AWG 22‑15)

• Screw clamp technology provides vibration‑resistant, stable connections

• Maximum tightening torque: 0.5 N·m for secure terminations

• Removable design allows pre‑wiring of field devices and fast module replacement

• Designed for use with Modicon X80 and M340 20‑pin I/O modules

• Part of the Modicon X80 common I/O platform, reducing maintenance and training costs

• 18‑month warranty

• REACH free of SVHC, mercury free, toxic heavy metal free

• Green Premium product with minimum 70% recycled cardboard packaging

Applications:

• Field wiring interface for Modicon X80 20‑pin I/O modules

• Pre‑wiring of I/O connections to reduce system downtime

• Replacement of damaged terminal blocks

• Standard accessory for Modicon X80 and M340 automation systems

• Medium to large process applications

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• 20‑pin X80 I/O modules requiring removable terminal block connection

• EcoStruxure Control Expert (formerly Unity Pro) software

• BMXFTB2000 — cage clamp version (1 x 0.34 to 1 mm²)

• BMXFTB2020 — spring clamp version (1 x 0.34 to 1 mm²)

Related Products:

• BMXFTB2000 – 20‑pin removable cage clamp terminal block (1 x 0.34…1 mm²)

• BMXFTB2020 – 20‑pin removable spring clamp terminal block (1 x 0.34…1 mm²)

• BMXFTB2800 – 28‑pin removable screw clamp terminal block

• BMXFTB4020 – 40‑pin removable terminal block for high‑density modules

• BMXDDI1602 – 16‑channel discrete input module

• BMXDDO1602 – 16‑channel discrete output module

• BMXAMI0410 – 4‑channel analog input module

• BMXXBP0400 – 4‑slot X80 backplane

• BMXXBP0800 – 8‑slot X80 backplane

• BMXXBP1200 – 12‑slot X80 backplane

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
