BMXFTB2820 Modicon X80 28-Pin Spring Terminal Block | Schneider Electric

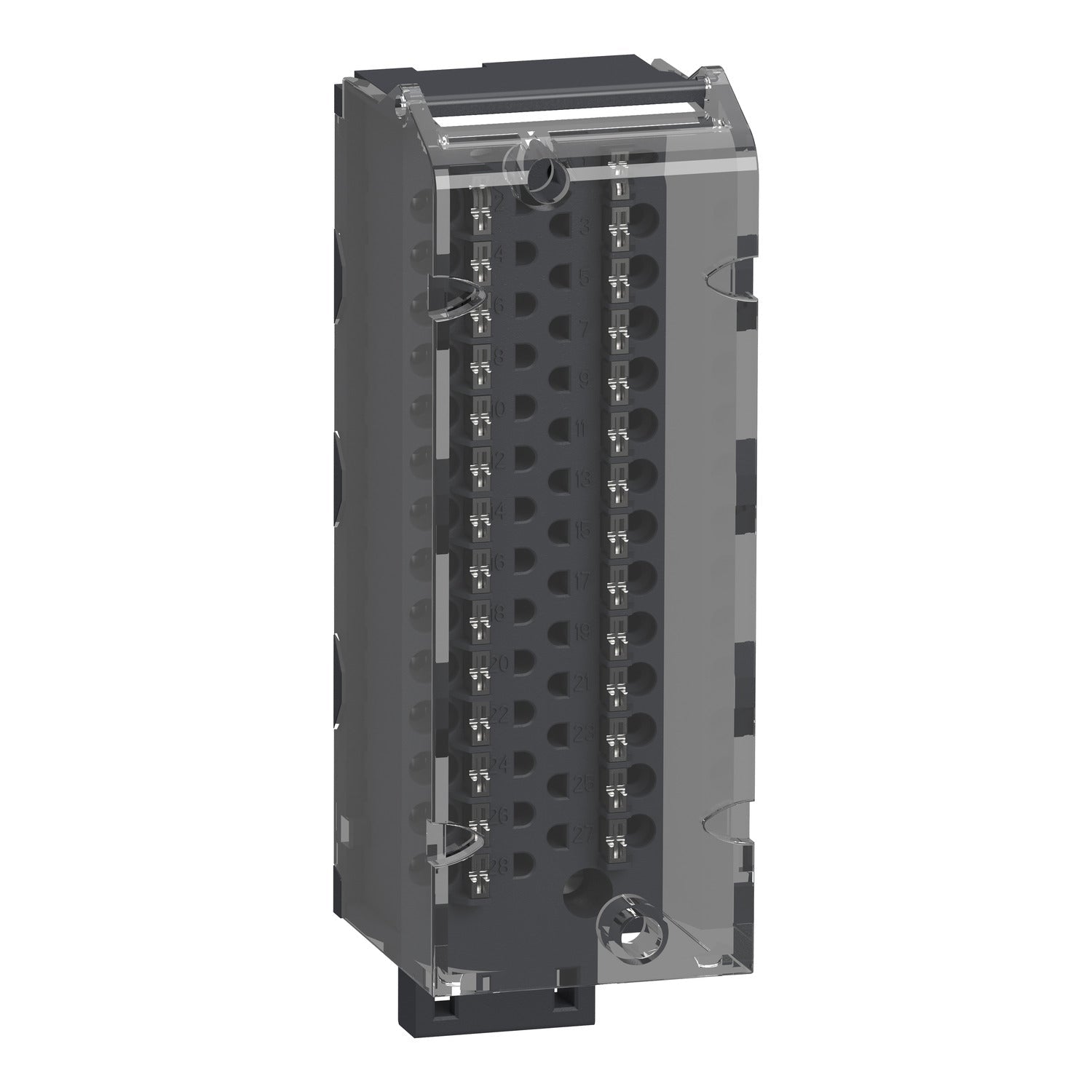

The Original New Schneider Electric BMXFTB2820 is a 28-pin removable spring terminal block for the Modicon X80 I/O platform. Designed for use with M340 and M580 PAC systems, it provides the physical field wiring interface for analog and digital I/O modules equipped with 28-pin connectors. Its spring-clamp mechanism ensures gas-tight, vibration-resistant connections without the need for periodic screw torque verification.

Core Engineering Highlights:
28 removable spring terminals | 1 x 0.34–1 mm² conductor cross-section | Tool‑free spring‑clamp termination | Passive connection (0W power consumption) | Compatible with Modicon X80 28‑pin I/O modules | 0.07 kg (0.15 lb) net weight | Green Premium product (RoHS/REACh compliant) | 18‑month warranty

Key Features:

• Original New Schneider Electric BMXFTB2820 terminal block

• 28 removable spring terminals for field device wiring

• Spring-clamp termination for reliable, tool‑free connections

• Pre‑wiring capability enables quick module replacement without rewiring

• Compatible with Modicon X80 28‑pin I/O modules

• Dual integrated captive retention screws for secure mechanical attachment

• Passive connection interface (0 W power consumption)

• RoHS compliant and REACh compliant (SVHC‑free)

• Green Premium product with environmental profile and end‑of‑life instructions

Applications:

• Field wiring termination for Modicon X80 analog and digital I/O modules

• Pre‑wiring of I/O connections to reduce system downtime

• Replacement of damaged terminal blocks

• Standard accessory for Modicon X80 automation systems

Technical Specifications:

System Compatibility:

• Compatible with Modicon X80 I/O modules equipped with 28‑pin removable terminal block connectors

• Used with Modicon M340 and M580 PAC systems

• Compatible with Modicon X80 backplane architecture

• Alternative to BMXFTB2800 (screw‑type version)

Related Products:

• BMXFTB2800 – 28‑pin removable terminal block (screw‑type)

• BMXFTB2000 – 20‑pin removable terminal block (screw‑type)

• BMXFTB2010 – 20‑pin removable terminal block (screw clamp)

• BMXFTB2820 – 28‑pin removable terminal block (spring‑type, current model)

• BMXFTB4020 – 40‑pin removable terminal block (screw‑type)

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
