BMXNOM0200 2‑Port Serial Link Module RS232/RS485 Modbus | Schneider Electric

The Original New Schneider Electric BMXNOM0200 is a 2‑port serial link communication module for the Modicon X80 I/O platform, designed to enable robust serial connectivity between Modicon M340 and M580 Programmable Automation Controllers (PACs) and field devices such as drives, HMIs, barcode readers, weighing systems, and third‑party instrumentation. The module provides two independent serial channels configurable for RS232 or RS485 with support for both Modbus RTU (master or slave) and Character Mode protocols. It is installed in a standard X80 rack slot and powered via the backplane, making it a simple‑format, dedicated module for building serial communication links in industrial automation systems.

Core Engineering Highlights:
2 independent RS232/RS485 serial ports | Modbus RTU (master/slave) and Character Mode support | RS232 RJ45: 115.2 kbit/s, 8 wires | RS485 RJ45: 57.6 kbit/s, 1 twisted pair | Internal power supply via rack | 80 mA current consumption at 24V DC | 4 diagnostic LEDs | IP20 protection | 0°C to +60°C operating temperature | 0.23 kg | Standard X80 module format

Key Features:

• Original New Schneider Electric BMXNOM0200 module

• 2 independent serial communication channels, each configurable for RS232 or RS485

• RJ45 connectors with different electrical characteristics: RS232 RJ45 (115.2 kbit/s, 8 wires) and RS485 RJ45 (57.6 kbit/s, 1 twisted pair)

• Supports Modbus Serial RTU protocol (master or slave) and Character Mode

• Internal power supply via X80 rack backplane — no external power required

• Simple‑format dedicated module with straightforward integration

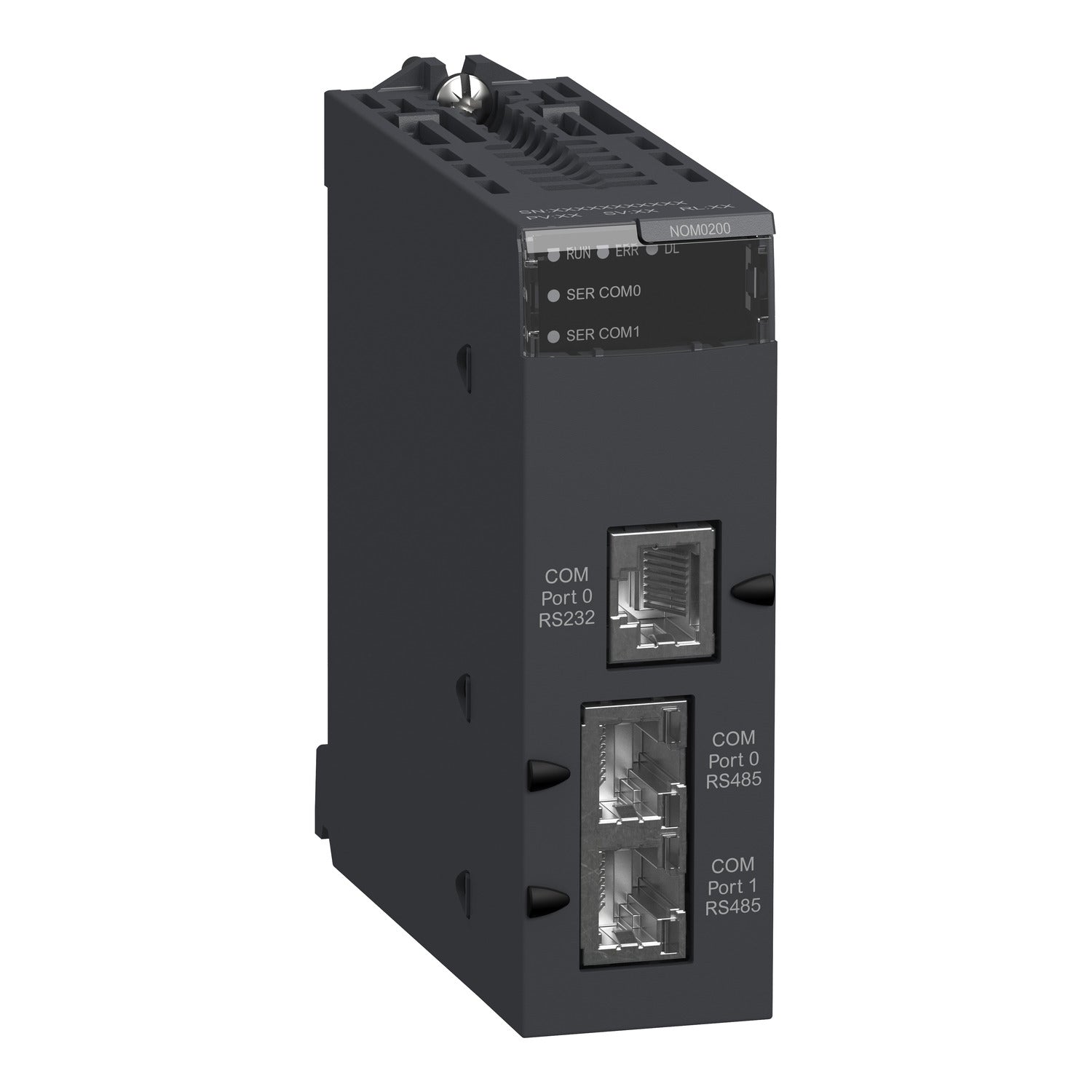

• 4 diagnostic LEDs: RUN (green), ERR (red), SER COM 0 (green), SER COM 1 (green) for quick status monitoring

• Can be configured as Modbus RTU slave on RS‑485 or Modbus/ASCII master on RS‑232 and RS‑485

• Part of the Modicon X80 common I/O platform for M340 and M580 PACs

• Recommended for modem connections and legacy serial device integration

• UL 508 certified

• Conforms to EN 61131‑2, EN 61000‑6‑4, EN 61000‑6‑2, EN 61010‑2‑201

Applications:

• Serial communication between Modicon X80 PACs and field devices (drives, HMIs, barcode readers, weighing systems)

• Connecting Modbus RTU master or slave devices over RS232/RS485 networks

• Integration of legacy serial equipment into modern Modicon X80 automation systems

• Modem connections for remote programming and monitoring

• Process control and factory automation requiring serial data exchange

• Medium to large process applications requiring serial communication expansion

Technical Specifications:

Local Signalling (LEDs):

• 1 LED (green) for module running (RUN)

• 1 LED (red) for module fault (ERR)

• 1 LED (green) for activity on serial link 0 (SER COM 0)

• 1 LED (green) for activity on serial link 1 (SER COM 1)

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• EcoStruxure Control Expert (formerly Unity Pro) software

• Modbus RTU master/slave devices

• Character Mode compatible serial devices

• Third‑party devices supporting RS232 or RS485 serial communication

Related Products:

• BMXNOM0200H – Harsh environment version (severe chemical environment)

• BMXNOE0100 – 1‑port Ethernet network module (Modbus/TCP)

• BMXNOC0401 – 4‑port Ethernet module (EtherNet/IP and Modbus/TCP)

• BMXXBP0400 – 4‑slot X80 backplane

• BMXXBP0800 – 8‑slot X80 backplane

• BMXXBP1200 – 12‑slot X80 backplane

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
