BMXXBE2005 X80 Backplane Extender Kit 2‑Slot Expansion M340/M580 | Schneider Electric

The Original New Schneider Electric BMXXBE2005 is a complete backplane extender kit for the Modicon X80 I/O platform, designed to expand the capacity of Modicon M340 and M580 Programmable Automation Controllers (PACs) by enabling a 2-rack configuration. This kit allows you to add a second rack of I/O or communication modules without replacing the existing main backplane. It includes all necessary components for a reliable and compliant installation: two BMXXBE1000 rack expansion modules, one BMXXBC008K extension cordset (0.8m), and one TSXTLYEX line terminator (set of 2). Part of Schneider Electric's common platform, it reduces maintenance and training costs with compatible modules and consistent training across different PACs.

Core Engineering Highlights:
Enables 2‑rack X80 system configuration | Includes 2 × BMXXBE1000 expansion modules + 0.8m cable + 2 terminators | 0.8m extension cable length | Panel or DIN rail mounting | IP20 protection | 0°C to +60°C operating temperature | ATEX zone 2/22 and IECEx zone 2/22 certified | 18‑month warranty | 0.63 kg weight

Kit Contents:

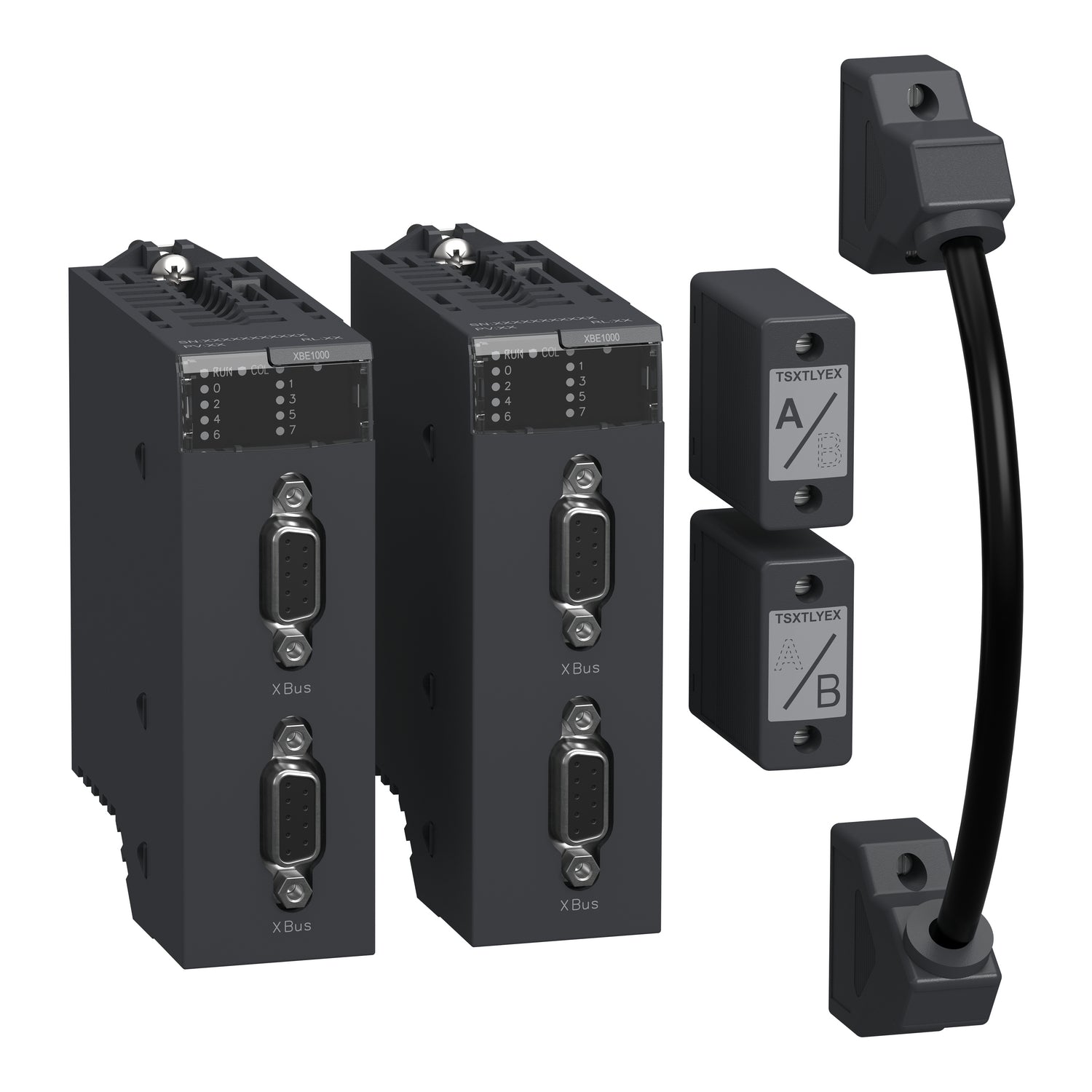

• 2 × BMXXBE1000 rack expansion modules

• 1 × BMXXBC008K extension cordset (0.8 m)

• 1 × TSXTLYEX line terminator (set of 2)

Key Features:

• Original New Schneider Electric BMXXBE2005 kit

• Enables 2‑rack configuration for Modicon X80-based systems

• Includes two BMXXBE1000 rack expansion modules for reliable backplane extension

• 0.8m extension cordset (BMXXBC008K) for flexible rack placement

• TSXTLYEX line terminators (set of 2) for proper bus termination

• Part of the Modicon X80 common platform, compatible with M340 and M580 PACs

• Panel, mounting plate, or 35 mm symmetrical DIN rail mounting options

• Hot‑swappable for most I/O modules, enabling online module replacement without system shutdown

• ATEX zone 2/22 and IECEx zone 2/22 certified for hazardous locations

• CE, UL, CSA, RCM, EAC, Merchant Navy certified

• Green Premium product with RoHS and REACH compliance

• Mercury free

• 18‑month contractual warranty

• Made in France

Applications:

• Expanding Modicon X80 rack capacity by adding a second rack of I/O modules

• Adding new I/O or communication modules without replacing the main backplane

• Retrofitting and upgrading industrial control panels with additional I/O

• Providing scalable, modular system growth for medium to large process applications

• Compact OEM applications needing limited expansion slots

• Hazardous area installations (ATEX zone 2/22, IECEx zone 2/22)

Technical Specifications:

Certifications & Compliance:

• Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC), 2014/34/EU (ATEX)

• Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22

• Standards: EN/IEC 61131‑2, EN/IEC 61010‑2‑201, UL 61010‑2‑201, CSA C22.2 No 61010‑2‑201, IACS E10, EN/IEC 61000‑6‑5, EN/IEC 61850‑3, EN/IEC 60079‑0

• RoHS: Pro‑active compliance (Product out of EU RoHS legal scope)

• REACH: Declaration available

• Mercury Free: Yes

• California Proposition 65: WARNING: Contains lead and lead compounds

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• BMXXBE1000 rack expansion modules

• X80 backplanes (BMXXBP0400, BMXXBP0600, BMXXBP0800, BMXXBP1200)

• EcoStruxure Control Expert (formerly Unity Pro) software

Related Products:

• BMXXBE1000 – Single rack expansion module (can be used as replacement part)

• BMXXBC008K – 0.8m extension cordset (replacement cable)

• TSXTLYEX – Line terminator set (2 pieces) (replacement terminators)

• BMXXBP0400 – 4‑slot X80 backplane

• BMXXBP0800 – 8‑slot X80 backplane

• BMXXBP1200 – 12‑slot X80 backplane

• BMXCPS2000 – 20W AC power supply module for X80

• BMXP342020 – Modicon M340 processor module
