BMXXBP1200 12-Slot Modicon X80 Backplane Panel/DIN Rail | Schneider Electric

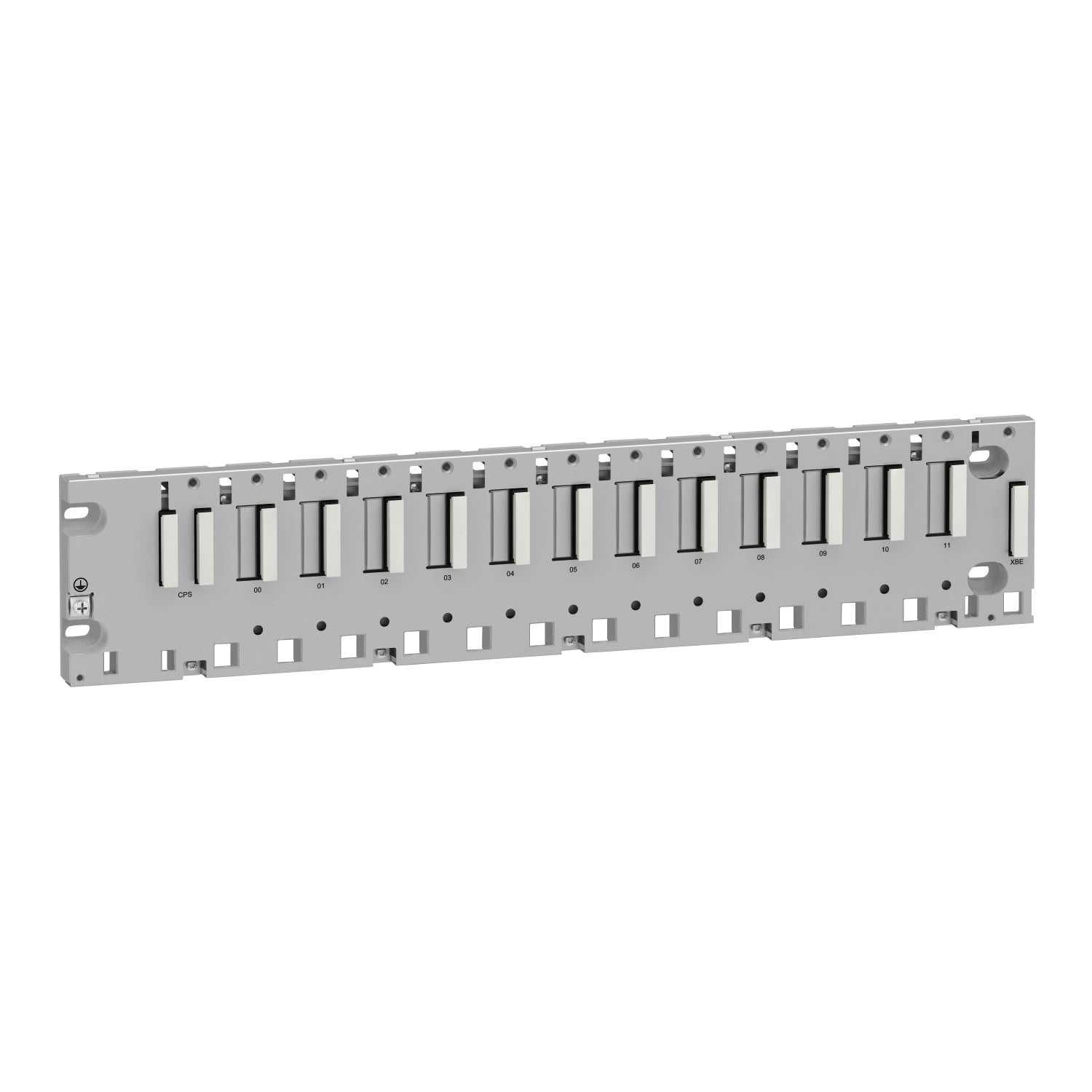

The Original New Schneider Electric BMXXBP1200 is a 12-slot backplane for the Modicon X80 I/O platform, providing the physical and electrical backbone for Modicon M340 and M580 Programmable Automation Controllers (PACs). With 12 bus X slots supporting power supplies, processors, I/O modules, and application-specific modules, this backplane enables flexible, modular system configuration for large-scale automation systems. It offers panel, mounting plate, or DIN rail mounting options to suit diverse cabinet layouts. Part of Schneider Electric's common platform, it reduces maintenance and training costs with compatible modules and consistent training across different PACs.

Core Engineering Highlights:
12 bus X slots | 0.17 W power consumption | Panel / mounting plate / DIN rail mounting | Hot-swappable for most I/O modules | 1.27 kg net weight | IP20 protection | 0°C to +60°C operating temperature | 1 XBE expansion module connector | CE / UL / CSA / RCM / EAC / UKCA certified

Key Features:

• Original New Schneider Electric BMXXBP1200 backplane

• 12 bus X slots — accommodates a wide range of I/O, processor, and application modules for flexible system configuration

• Part of the Modicon X80 common platform, compatible with M340 and M580 PACs

• Three mounting options: panel, mounting plate, or 35 mm symmetrical DIN rail

• Hot-swappable feature for most I/O modules, enabling online module replacement without system shutdown

• Single XBE connector enables rack expansion for larger automation systems

• Ultra-low power consumption: 0.17 W for energy-efficient operation

• Stable in-rack module mounting ensures reliable system performance

• IP20 protection and 0°C to +60°C operating range suit standard industrial control cabinet environments

• Easy Quantum modernization path for legacy system upgrades

• Green Premium product with minimum 70% recycled cardboard packaging

Applications:

• Central backplane for Modicon X80-based automation systems

• Large-scale industrial automation control panels using Modicon M340 / M580 PLC architecture

• Machine control systems requiring modular I/O expansion

• Process automation racks in manufacturing and infrastructure applications

• Control cabinets where DIN rail, panel, or plate mounting flexibility is required

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon X80 I/O platform

• Modicon M340 Programmable Automation Controllers (PACs)

• Modicon M580 Programmable Automation Controllers (PACs)

• BMXP34 processors

• BMXCPS power supplies

• X80 I/O modules and application-specific modules

• EcoStruxure Control Expert (formerly Unity Pro) software

• BMXXBP0400 (4-slot), BMXXBP0600 (6-slot), BMXXBP0800 (8-slot) family for scalable configurations

Related Products:

• BMXXBP0400 – 4-slot X80 backplane (lower density)

• BMXXBP0600 – 6-slot X80 backplane (mid density)

• BMXXBP0800 – 8-slot X80 backplane (higher density)

• BMXXBP1200 – 12-slot X80 backplane (current model)

• BMXCPS2000 – 20W AC power supply module for X80

• BMXCPS2010 – 24V DC power supply module for X80

• BMXP342020 – Modicon M340 processor module

• BMXDDI3202K – 32-channel discrete input module

• BMXDDO3202K – 32-channel discrete output module

• BMXAMI0810 – 8-channel analog input module

• BMXFTB2000 – 20-way terminal block for X80 I/O

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
