HMIGTO5310 Harmony GTO 10.4" Touchscreen HMI 640x480 VGA | Schneider Electric

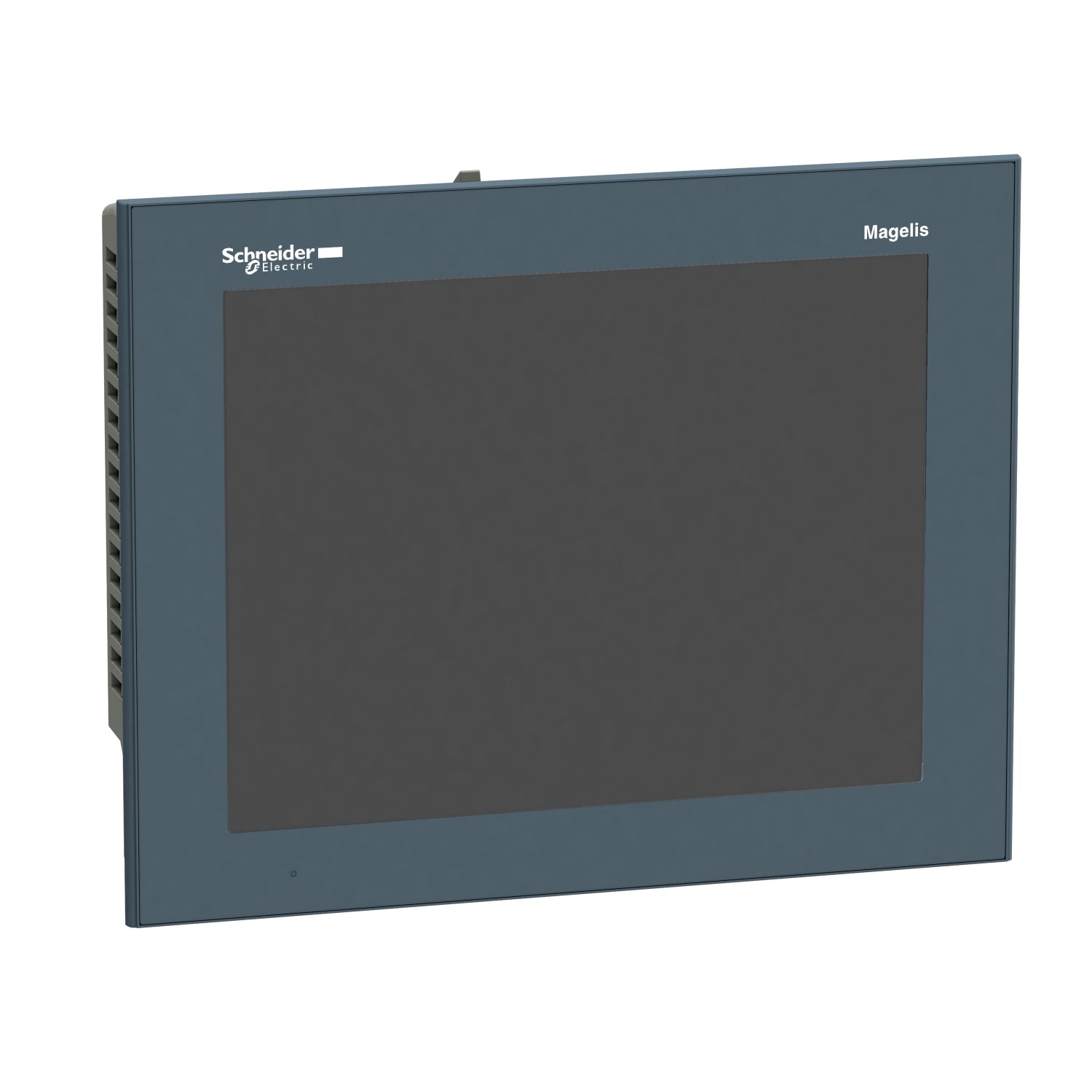

The Original New Schneider Electric HMIGTO5310 is a 10.4-inch advanced touchscreen panel from the Magelis Harmony GTO series, designed for industrial machine control and operator interface applications. Featuring a 640×480 pixel VGA TFT colour display with 65,536 colours and an energy-efficient LED backlight (55% less energy than CCFL equivalents), this HMI delivers clear, vibrant synoptic views for intuitive interaction. Powered by a 333 MHz RISC processor with 96 MB Flash EPROM and 512 KB internal RAM, it provides responsive performance for demanding visualization tasks. Comprehensive connectivity includes Ethernet, dual serial ports (RS232C/RS485 with MPI compatibility), and USB 2.0 (type A + mini‑B), enabling seamless integration with major PLC platforms. Configurable with Vijeo Designer software, the IP65/NEMA 4X front panel protects against dust and water ingress, making it suitable for harsh industrial environments. This product is the direct replacement for the legacy XBTGT5330 and XBTGT5230 models, offering 100% software compatibility and the same cut-out dimensions.

Core Engineering Highlights:
10.4" TFT colour display (640×480 VGA, 65,536 colours) | 333 MHz RISC processor | 96 MB Flash EPROM + 512 KB RAM | Ethernet (10/100BASE-TX) + RS232C + RS485 (MPI compatible) | 2 × USB 2.0 (type A + mini‑B) | SD card slot (≤32 GB) | IP65 front / NEMA 4X | 24V DC | LED backlight (50,000 h) | 0°C to +55°C operating | 2.0 kg | Vijeo Designer V6.1+

Key Features:

• Original New Schneider Electric HMIGTO5310 panel

• 10.4-inch TFT colour display with 640×480 pixel VGA resolution

• 65,536 colours for clear, detailed synoptic views

• Energy-efficient LED backlight with 50,000-hour lifespan and 16-level dimming

• 333 MHz RISC processor for responsive HMI performance

• 96 MB Flash EPROM for application storage

• 512 KB internal RAM (SRAM) for data backup

• SD card slot supporting up to 32 GB SD/SDHC cards for expanded storage and data logging

• Embedded Ethernet port (10/100BASE-TX) for easy IT integration and remote access

• COM1 serial port (RS232C, SUB-D 9)

• COM2 serial port (RS485, RJ45) with MPI compatibility at 187.5 kbps

• 2 × USB 2.0 ports (type A + mini‑B) for peripherals and maintenance

• IP65 front panel protection and NEMA 4X rating for dust-tight and water-resistant operation

• Multi-colour status LED for indicating panel operating mode

• Vijeo Designer V6.1 or higher configuration software

Applications:

• Machine operator interface and control

• Production line visualization and monitoring

• Packaging machinery HMI

• Material handling equipment control

• OEM machine automation systems

• Retrofit of legacy XBTGT5330/XBTGT5230 installations

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340, M580, and other PLCs via Ethernet or serial

• Major third-party PLC protocols: Mitsubishi Melsec, Omron Sysmac, Allen‑Bradley, Siemens Simatic

• Vijeo Designer configuration software (V6.1 or higher)

• USB peripherals for expanded storage and maintenance

Retrofit Information:

• Direct replacement for XBTGT5330 and XBTGT5230

• 100% software compatible with VJD software

• Same communication ports and certifications

• Same cut-out dimensions — no panel modification required

Related Products:

• HMIGTO5315 – Same series with additional features

• HMIGTO5310FW – Coated version for harsh environments

• HMIGTO5310FCW – Coated version without Schneider logo

• Vijeo Designer – Configuration software for Harmony GTO series

• SD card – For expanded storage and data logging
