HMIGTO6310 12.1" Touchscreen HMI 800x600 SVGA 96MB | Schneider Electric

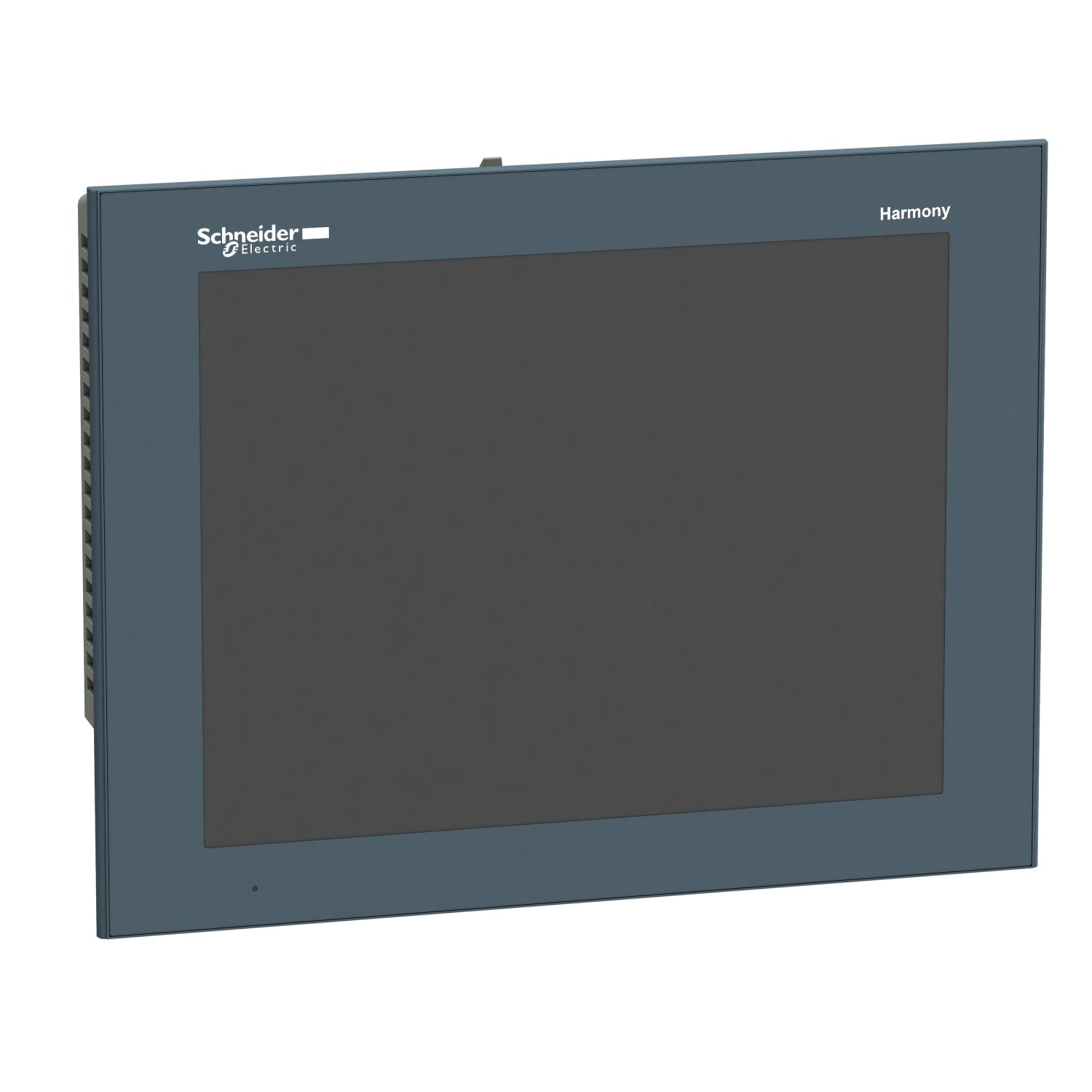

The Original New Schneider Electric HMIGTO6310 is a 12.1-inch advanced touchscreen panel from the Magelis Harmony GTO series, designed for complex machine control and operator interface applications. Featuring an 800×600 pixel SVGA TFT colour display with 65,536 colours and a high-brightness 50,000-hour LED backlight, this HMI delivers clear, detailed synoptic views for demanding industrial environments. Powered by a high-performance RISC processor with 96 MB Flash EPROM and 512 KB internal RAM, it provides responsive performance for large-scale visualization projects. Comprehensive connectivity includes Ethernet (10/100BASE-TX), dual serial ports (RS232C/RS485 with MPI compatibility), and USB 2.0 (type A + mini‑B), enabling seamless integration with major PLC platforms. Configurable with Vijeo Designer software (V6.1 or higher), the IP65/NEMA 4X front panel protects against dust and water ingress, making it suitable for harsh industrial environments. This product is the direct replacement for the legacy XBTGT6330 and XBTG6330 models, offering the same cut-out dimensions for easy retrofit [5†L6-L13].

Core Engineering Highlights:
12.1" TFT colour display (800×600 SVGA, 65,536 colours) | 96 MB Flash EPROM + 512 KB RAM | Ethernet (10/100BASE-TX) + RS232C + RS485 (MPI compatible) | 2 × USB 2.0 (type A + mini‑B) | SD card slot (≤32 GB) | IP65 front / NEMA 4X | 24V DC | LED backlight (50,000 h) | 0°C to +55°C operating | 2.5 kg | Vijeo Designer V6.1+

Key Features:

• Original New Schneider Electric HMIGTO6310 panel

• 12.1-inch TFT colour display with 800×600 pixel SVGA resolution

• 65,536 colours for clear, detailed synoptic views

• High-brightness LED backlight with 50,000-hour lifespan and 16-level dimming

• High-performance RISC processor for responsive HMI performance

• 96 MB Flash EPROM for application storage

• 512 KB internal RAM (SRAM) for data backup

• SD card slot supporting up to 32 GB SD/SDHC cards for expanded storage and data logging

• Embedded Ethernet port (10/100BASE-TX) for IT integration and remote access

• COM1 serial port (RS232C, SUB-D 9)

• COM2 serial port (RS485, RJ45) with MPI compatibility at 187.5 kbps

• 2 × USB 2.0 ports (type A + mini‑B) for peripherals and maintenance

• IP65 front panel protection and NEMA 4X rating for dust-tight and water-resistant operation

• Multi-colour status LED for indicating panel operating mode

• Vijeo Designer V6.1 or higher configuration software

• Direct replacement for legacy XBTGT6330 and XBTG6330 models with same cut-out dimensions [5†L6-L13]

Applications:

• Machine operator interface and control

• Production line visualization and monitoring

• Packaging machinery HMI

• Material handling equipment control

• OEM machine automation systems

• Retrofit of legacy XBTGT6330/XBTG6330 installations

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340, M580, and other PLCs via Ethernet or serial

• Major third-party PLC protocols: Mitsubishi Melsec, Omron Sysmac, Allen‑Bradley, Siemens Simatic

• Vijeo Designer configuration software (V6.1 or higher)

• USB peripherals for expanded storage and maintenance

Retrofit Information:

• Direct replacement for XBTGT6330 and XBTG6330

• 100% software compatible with VJD software

• Same communication ports and certifications

• Same cut-out dimensions — no panel modification required

Related Products:

• HMIGTO6315 – Same specifications with stainless steel bezel for IP67K protection [5†L7-L8]

• HMIGTO6310FW – Conformal coated version for harsh environments

• HMIGTO5310 – 10.4" version (640×480 VGA, 96MB)

• Vijeo Designer – Configuration software for Harmony GTO series

• SD card – For expanded storage and data logging (≤32 GB)

• HMIZG56 – Panel gasket for solid panel mounting [4†L24]

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Magelis, Harmony, and EcoStruxure are trademarks of Schneider Electric SE.
