TM221CE24T Modicon M221 24 I/O Transistor PNP Ethernet Logic Controller | Schneider Electric

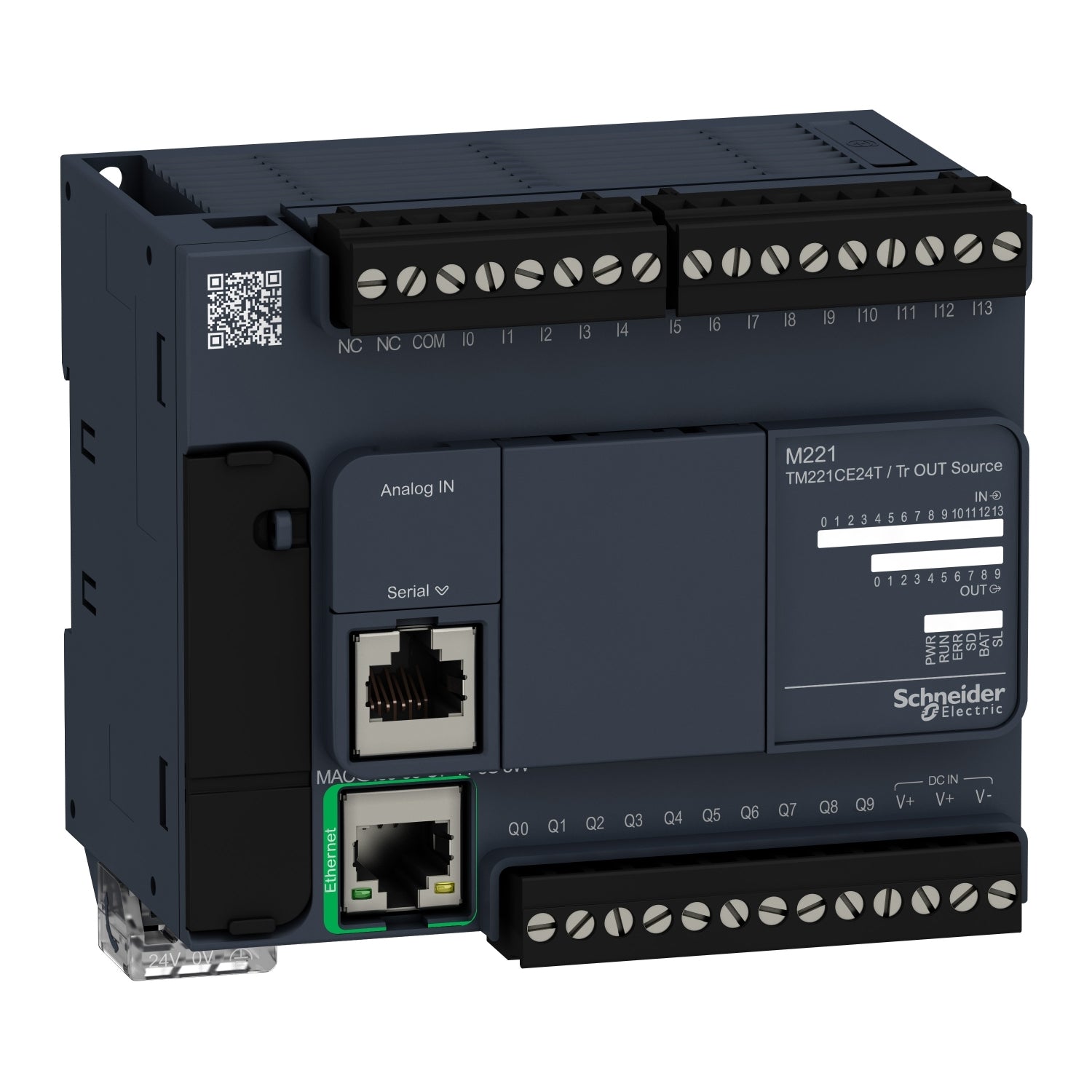

The Original New Schneider Electric TM221CE24T Modicon M221 Logic Controller is a compact, high-performance programmable logic controller (PLC) designed for small to medium machine control applications requiring high-speed output switching and network connectivity. Part of the Modicon M221 range, this nano PLC provides 24 mixed I/O points (14 inputs, 10 transistor PNP outputs) with 2 analog inputs and 4 fast inputs for high-speed counting and interrupt tasks. Featuring 256 KB memory, integrated Ethernet, USB, and serial communication ports, and supporting up to 7 local TM3 expansion modules, the TM221CE24T offers a scalable solution for industrial automation systems. Configured via the free SoMachine Basic software, it delivers benchmark performance with fast transistor outputs for demanding machine control applications.

Core Engineering Highlights:
24 mixed I/O points (14 digital inputs + 10 transistor PNP outputs) | 2 analog inputs (0-10V, 10-bit) | 4 fast inputs (5 µs response) | 2 fast outputs (100 kHz PTO/PWM) | 24V DC | Ethernet (Modbus TCP/EtherNet/IP) + USB + RS232/RS485 | 256 KB memory | Up to 7 local TM3 expansion modules | SD card slot up to 2 GB | 5 µs fast output response | IP20 | 0.395 kg | 110 x 90 x 70 mm | -10°C to +55°C

Key Features:

• Original New Schneider Electric TM221CE24T controller

• 14 discrete inputs (24V DC, sink/source configurable, IEC 61131-2 Type 1) including 4 fast inputs

• 10 transistor PNP outputs (sourcing) including 2 fast outputs (PLS/PWM/PTO/FREQGEN)

• 2 analog inputs (0-10V, 10-bit resolution)

• Fast output response time: 5 µs turn-on / 5 µs turn-off (10mA < I < 100mA)

• Fast input response time: 35 µs turn-off

• Integrated Ethernet port supporting Modbus TCP (server/client/slave) and EtherNet/IP protocols

• USB mini-B port for programming and diagnostics

• Non-isolated serial link (RS232/RS485) via RJ45 connector

• SD card slot (up to 2 GB) for application backup and data logging

• Built-in Run/Stop switch for direct manual control

• Supports up to 7 local I/O expansion modules (TM3 series)

• 256 KB RAM for user application and data, 256 KB built-in flash memory

• Short-circuit and overload protection with 1.3A peak current, auto‑reset every 1s

• Reverse polarity protection

• DIN rail or panel/plate mounting

• IP20 protection for control cabinet environments

• 35 µs fast input response for high-speed counting applications

• 100 kHz maximum output frequency for fast outputs (PLS/PWM/PTO/FREQGEN)

• CE, cULus, CSA, RCM, EAC certified

• Meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards

Applications:

• Small to medium machine automation and OEM control systems

• High-speed conveyor and material handling equipment

• Packaging machinery and assembly lines

• Pick-and-place and positioning systems

• Pump, fan, and HVAC control

• Remote and distributed I/O configurations with Modicon TM3 expansion modules

• Motion control applications requiring 100 kHz PTO/PWM outputs

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221 logic controllers

• Modicon TM3 expansion I/O modules (digital, analog, temperature, safety)

• TM3 bus coupler for remote I/O architectures

• SoMachine Basic / EcoStruxure Machine Expert Basic software (free download)

• Ethernet/IP and Modbus TCP networks

• RS232/RS485 serial communication

• SD cards up to 2 GB for data logging

Related Products:

• TM221CE40T – 40 I/O transistor version with Ethernet (higher capacity)

• TM221CE24R – 24 I/O relay version with Ethernet

• TM221C24T – 24 I/O transistor version without Ethernet

• TM3DI16 – 16-input digital expansion module

• TM3DQ16T – 16-output transistor expansion module

• TM3AI8 – 8-channel analog input module

• TM3AQ4 – 4-channel analog output module

• TM3TI4 – 4-channel temperature input module

• SoMachine Basic – Free programming software download

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
