TM221CE40R Modicon M221 40 I/O Relay Ethernet Logic Controller | Schneider Electric

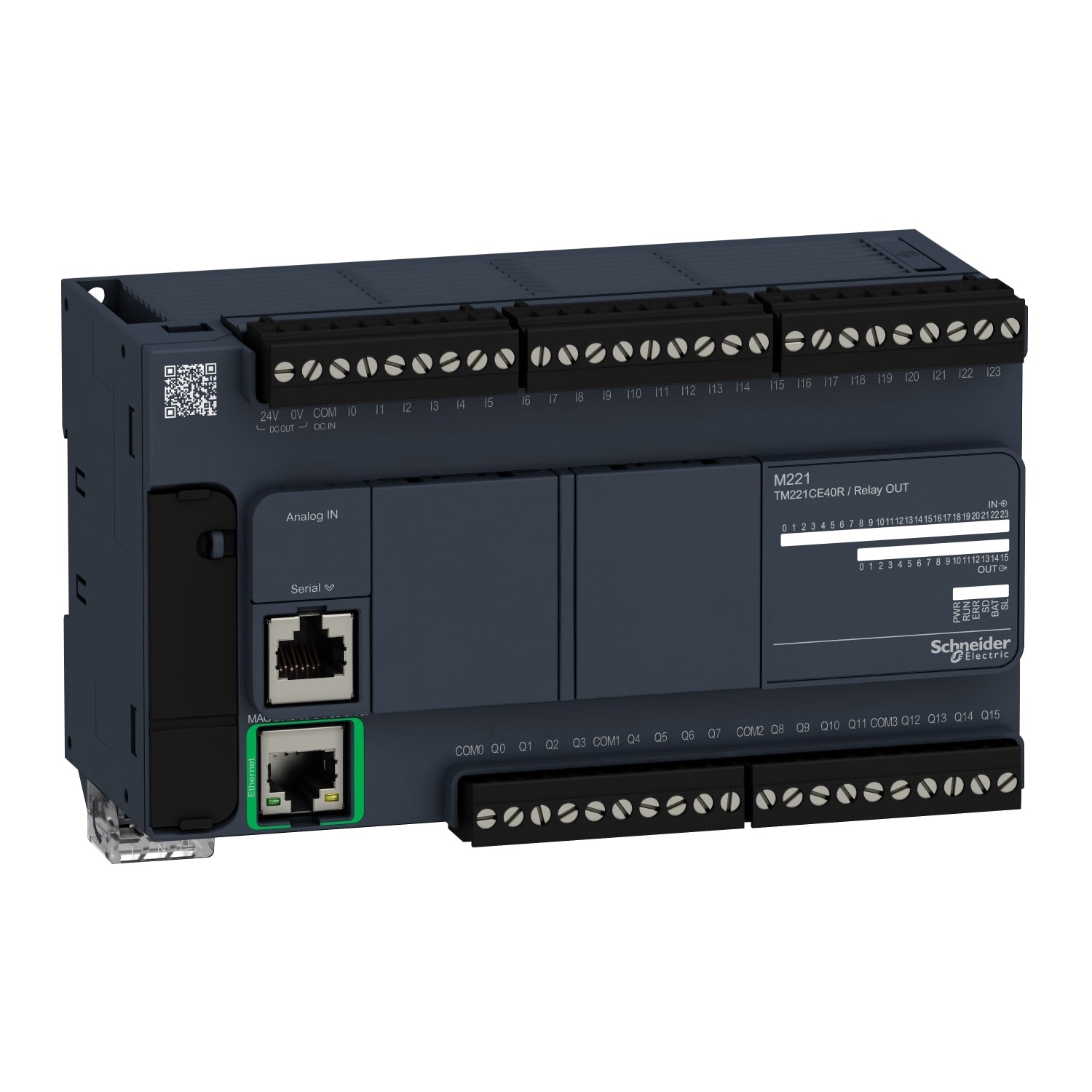

The Original New Schneider Electric TM221CE40R Modicon M221 Logic Controller is a compact, high-performance programmable logic controller (PLC) designed for basic to advanced machine control applications. Part of the Modicon M221 range, this nano PLC provides 40 discrete I/O points (24 inputs and 16 relay outputs) and integrates Ethernet, USB, and serial communication ports. Featuring a built‑in 256 KB memory and supporting up to 7 local or 14 remote TM3 expansion I/O modules, the TM221CE40R offers a scalable solution for industrial automation systems. Configured via the free SoMachine Basic software, it delivers benchmark performance while reducing installation costs.

Core Engineering Highlights:
40 discrete I/O points (24 inputs / 16 relay outputs) | 100‑240V AC power supply | 10‑bit analog input resolution | 256 KB memory (application + data) | Ethernet (Modbus TCP) + USB + RS232/RS485 | Up to 7 local / 14 remote TM3 expansion modules | SD card slot up to 2 GB | Run/Stop switch | IP20 | 0.456 kg | 160 x 90 x 70 mm | EN/IEC 61131‑2 compliant

Key Features:

• Original New Schneider Electric TM221CE40R controller

• 24 discrete inputs (24V DC, sink/source configurable) with 10‑bit analog input resolution

• 16 relay outputs (normally open, 2A per channel)

• Integrated Ethernet port supporting Modbus TCP and Ethernet/IP protocols

• USB mini‑B port for programming and diagnostics

• Non‑isolated serial link (RS232/RS485) via RJ45 connector

• SD card slot (up to 2 GB) for application backup and data logging

• Built‑in Run/Stop switch for direct manual control

• Supports up to 7 local I/O expansion modules or 14 remote I/O modules via TM3 bus

• 256 KB RAM for user application and data, 256 KB built‑in flash memory

• DIN rail mounting for space‑efficient installation

• IP20 protection for control cabinet environments

• CE, cULus, CSA, RCM, EAC, ABS, LR, DNV‑GL certified

• Achieves EN/IEC 61131‑2, EN/IEC 61010‑2‑201 standards

Applications:

• Small to medium machine automation and OEM control systems

• Conveyor and material handling equipment

• Packaging machinery and assembly lines

• Pump, fan, and HVAC control

• Building automation and lighting control

• Remote and distributed I/O configurations with Modicon TM3 expansion modules

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221 logic controllers

• Modicon TM3 expansion I/O modules (digital, analog, temperature, safety)

• TM3 bus coupler for remote I/O architectures

• SoMachine Basic / EcoStruxure Machine Expert Basic software (free download)

• Ethernet/IP and Modbus TCP networks

• RS232/RS485 serial communication

Related Products:

• TM221CE24R – 24 I/O relay version with Ethernet

• TM221C40R – 40 I/O relay version without Ethernet

• TM3DI16 – 16‑input digital expansion module

• TM3DQ16R – 16‑output relay expansion module

• TM3AI8 – 8‑channel analog input module

• TM3AQ4 – 4‑channel analog output module

• TM3TI4 – 4‑channel temperature input module

• TM3BUS – TM3 bus coupler for remote I/O

• SoMachine Basic – Free programming software download
