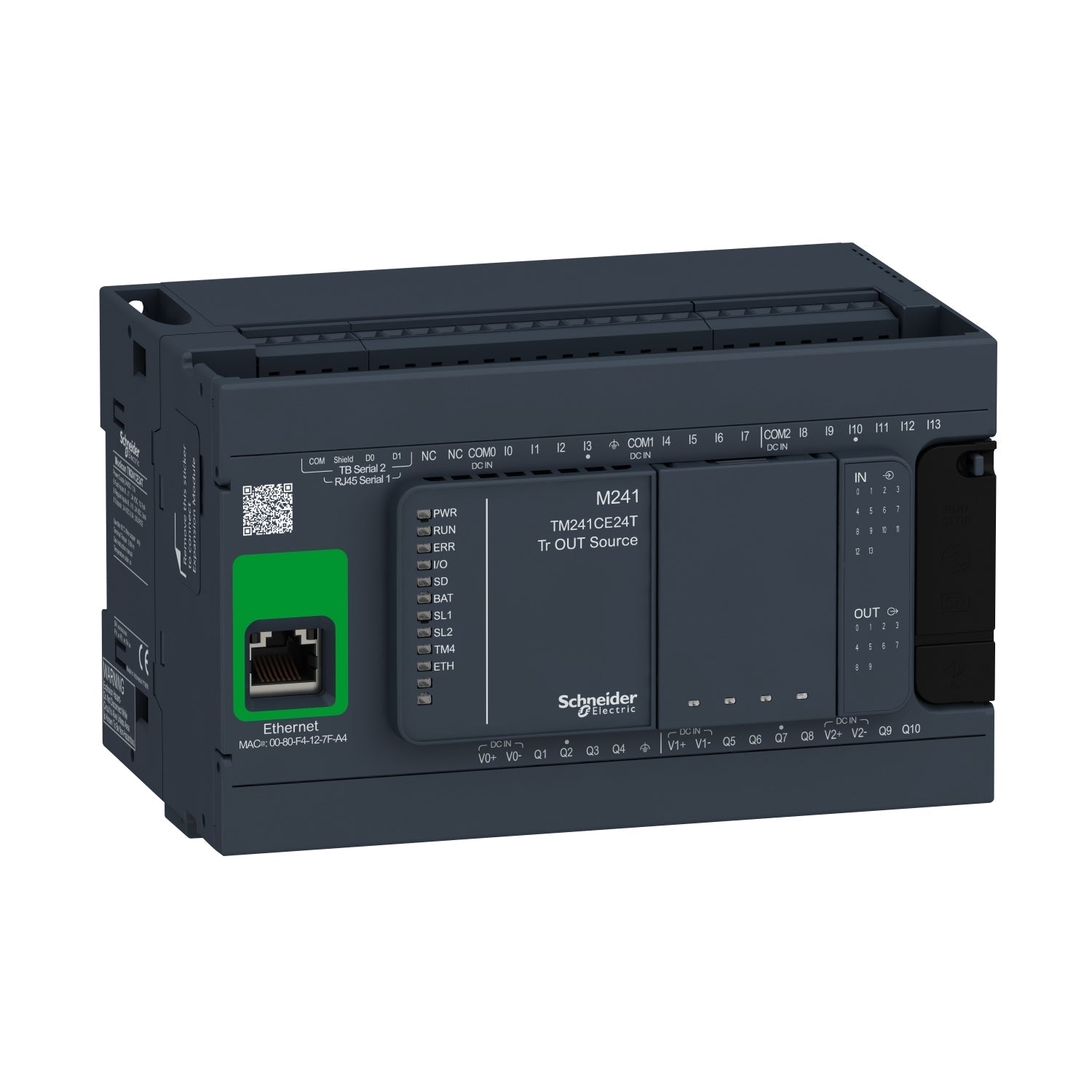

The Original New Schneider Electric TM241CE24T Modicon M241 Logic Controller is a high-performance programmable logic controller (PLC) designed for demanding machine control applications requiring speed, precision, and connectivity. Part of the Modicon M241 range, this compact controller provides 24 mixed I/O points (14 inputs, 10 transistor PNP outputs) with 8 fast inputs and 4 fast outputs for high-speed counting and positioning tasks. Featuring 64 MB system RAM, 128 MB built-in flash memory for user program backup, and an SD card slot (up to 16 GB), it offers scalable memory for complex automation projects. Built-in Ethernet, dual serial ports, and USB programming port provide flexible connectivity, while embedded CANopen supports fieldbus architectures up to 63 devices. Configured via the free EcoStruxure Machine Expert software, it delivers benchmark performance with fast 2 µs response times for demanding motion and positioning applications.

Core Engineering Highlights:
14 discrete inputs (8 fast inputs) + 10 transistor PNP outputs (4 fast outputs) | 64 MB system RAM / 128 MB flash / 16 GB SD card | 24V DC (20.4-28.8V) | Ethernet (Modbus TCP) + 2 serial ports + USB | 7 local / 14 remote TM3 expansion modules | 2 µs fast input/output response | 100 kHz PTO/PWM positioning | CANopen built-in | IP20 | 110 x 90 x 70 mm | 0.39 kg | -10°C to +55°C

Key Features:

• Original New Schneider Electric TM241CE24T controller

• 14 discrete inputs (24V DC, sink/source configurable) including 8 fast inputs for high-speed counting and interrupts

• 10 transistor PNP outputs (sourcing) including 4 fast outputs for high-speed positioning (PTO/PWM)

• 64 MB system RAM and 128 MB built-in flash for user program backup

• SD card slot supporting up to 16 GB for program backup, data logging, and firmware updates

• Integrated Ethernet port supporting Modbus TCP server/client

• Mini-B USB programming port for direct PC connection via EcoStruxure Machine Expert

• Two non-isolated serial links: one RJ45 RS232/RS485, one removable screw terminal RS485

• Embedded CANopen for fieldbus architectures up to 63 devices

• 4-channel PWM/PTO positioning functions up to 100 kHz for motion control applications

• 4 fast input counting channels (HSC mode) for high-speed counting

• Integrated web server for remote access and diagnostics via any mobile device

• Supports up to 7 local I/O expansion modules or 14 remote I/O modules via TM3 bus

• DIN rail mounting for space-efficient installation

• IP20 protection for control cabinet environments

• BR2032 lithium battery for real-time clock backup (4-year life)

• CE, cULus, CSA, RCM certified

• Meets EN/IEC 61131-2, UL 508 standards

• Green Premium product with Better World verification

Applications:

• High-performance compact machine automation and OEM control systems

• Speed and position control applications requiring 100 kHz PTO/PWM outputs

• Packaging machinery and assembly lines

• Pick-and-place and positioning systems

• Conveyor and material handling equipment

• Pump, fan, and HVAC control

• Multi-axis motion control with CANopen fieldbus architecture (up to 63 devices)

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M241 logic controllers

• Modicon TM3 expansion I/O modules (digital, analog, temperature, safety)

• TM3 bus coupler for remote I/O architectures

• EcoStruxure Machine Expert (formerly SoMachine) programming software (free download)

• TM4ES4 Ethernet module (1 expansion + 2 standalone or 3 standalone)

• CANopen fieldbus devices (up to 63 devices)

• Modbus TCP and Modbus RTU/ASCII networks

Typical System Architecture:
24V DC Power Supply
↓
TM241CE24T Modicon M241 Controller
│
├── 14 Discrete Inputs (including 8 fast inputs)
│ └── Sensors, Switches, Encoders (2 µs HSC)
├── 10 Transistor PNP Outputs (including 4 fast outputs)
│ └── Actuators, Drives, Servos (100 kHz PTO/PWM)
├── Ethernet Port → Modbus TCP / Web Server
├── USB Mini-B → Programming (EcoStruxure Machine Expert)
├── Serial Links (RS232/RS485) → Legacy Devices / HMIs
├── CANopen → Up to 63 Devices (Drives, I/O, Sensors)
├── SD Card Slot → Program Backup / Data Logging (up to 16 GB)
├── Up to 7 Local TM3 Expansion Modules
└── Up to 14 Remote TM3 Modules via Bus Coupler
↓
EcoStruxure Machine Expert Software (Programming & Configuration)
↓
High-Performance Machine Control & Automation Applications

Related Products:

• TM3DI16 – 16-input digital expansion module (screw terminal)

• TM3DQ16T – 16-output transistor expansion module (PNP)

• TM3DQ16R – 16-output relay expansion module

• TM3AI8 – 8-channel analog input module

• TM3AQ4 – 4-channel analog output module

• TM3TI4 – 4-channel temperature input module

• TM4ES4 – Ethernet module for M241 expansion

• TM241CE40T – 40 I/O transistor version (higher capacity)

• TM241CE24R – 24 I/O relay version (alternative output type)

• TM241CEC24T – 24 I/O transistor version with CANopen master

• EcoStruxure Machine Expert – Free programming software download

• SD Card – For program backup, data logging, and firmware updates (up to 16 GB)
