TM241CE40T Modicon M241 40 I/O Transistor PNP Ethernet Logic Controller | Schneider Electric

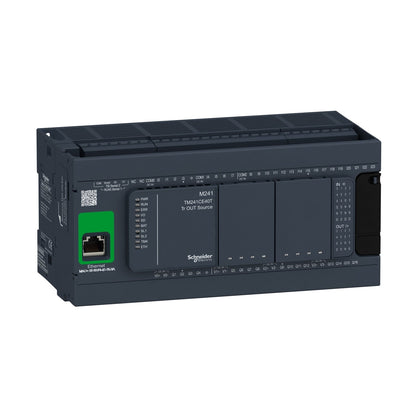

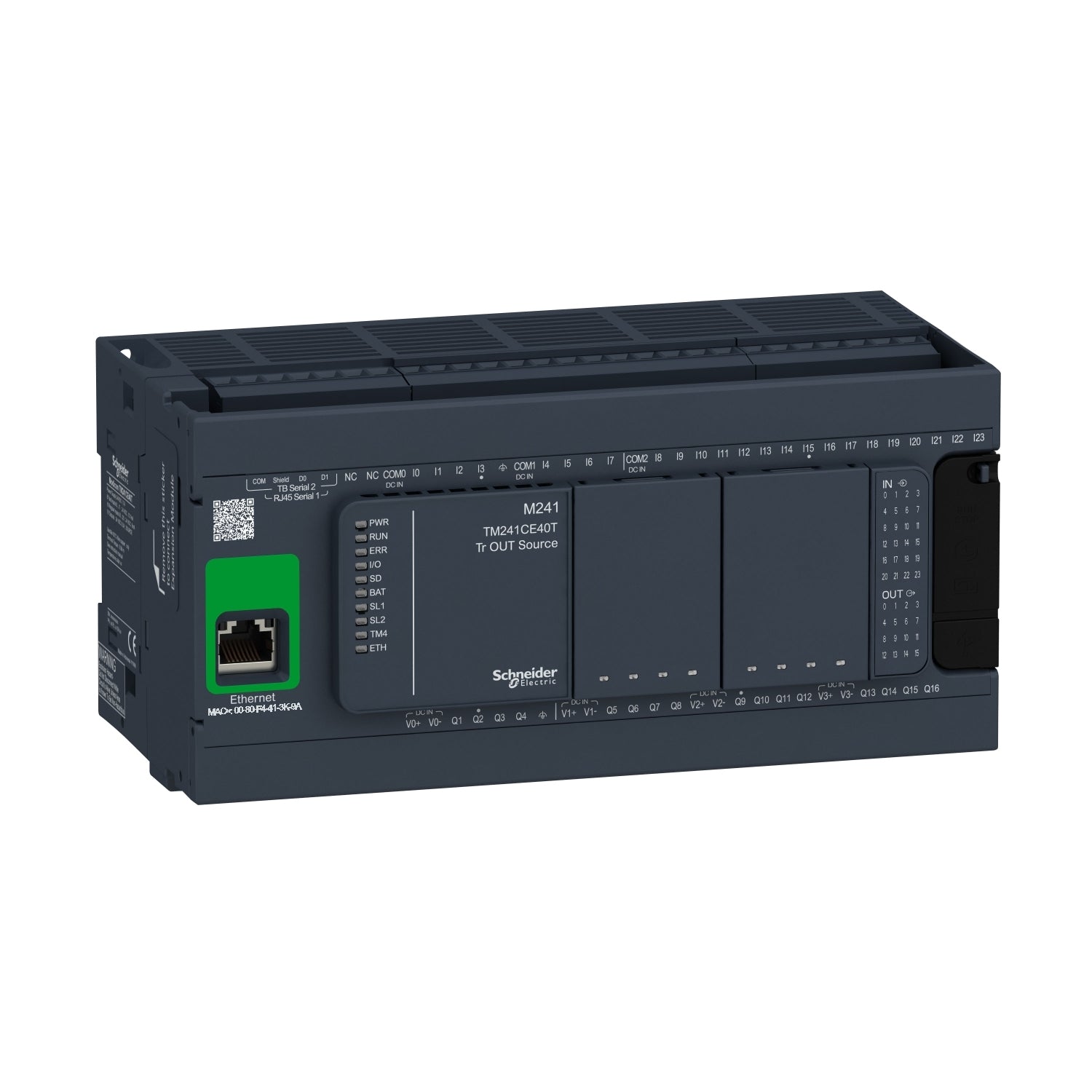

The Original New Schneider Electric TM241CE40T Modicon M241 Logic Controller is a high-performance programmable logic controller (PLC) designed for demanding machine control applications requiring speed, precision, and connectivity. Part of the Modicon M241 range, this compact controller provides 40 mixed I/O points (24 inputs, 16 transistor PNP outputs) with 8 fast inputs and 4 fast outputs for high-speed counting and positioning tasks. Featuring 8 MB program memory, 64 MB RAM, 128 MB built‑in flash memory for user program backup, and an SD card slot (up to 16 GB), it offers scalable memory for complex automation projects. Built‑in Ethernet, dual serial ports, and USB programming port provide flexible connectivity, while embedded CANopen supports fieldbus architectures up to 63 devices. Configured via the free EcoStruxure Machine Expert software, it delivers benchmark performance with fast 2 µs response times for demanding motion and positioning applications.

Core Engineering Highlights:
24 discrete inputs (8 fast inputs) + 16 transistor PNP outputs (4 fast outputs) | 8 MB program memory / 64 MB RAM / 128 MB flash / 16 GB SD card | 24V DC (19.2-28.8V) | Ethernet (Modbus TCP/EtherNet/IP) + 2 serial ports + USB | 7 local / 14 remote TM3 expansion modules | 2 µs fast input/output response | 100 kHz PTO/PWM positioning | CANopen built‑in | IP20 | 190 x 90 x 95 mm | 0.62 kg | -10°C to +50°C

Key Features:

• Original New Schneider Electric TM241CE40T controller

• 24 discrete inputs (24V DC, sink/source configurable) including 8 fast inputs for high‑speed counting and interrupts

• 16 transistor PNP outputs (sourcing) including 4 fast outputs for high‑speed positioning (PTO/PWM)

• 8 MB program memory (128k Boolean instructions) + 64 MB system RAM + 128 MB built‑in flash for user program backup

• SD card slot supporting up to 16 GB for program backup, data logging, and firmware updates

• Integrated Ethernet port supporting Modbus TCP server/client and EtherNet/IP protocols

• Mini‑B USB programming port for direct PC connection via EcoStruxure Machine Expert

• Two non‑isolated serial links: one RJ45 RS232/RS485, one removable screw terminal RS485

• Embedded CANopen for fieldbus architectures up to 63 devices

• 4‑channel PWM/PTO positioning functions for motion control applications

• 4 fast input counting channels (HSC mode) for high‑speed counting

• Integrated web server for remote access and diagnostics via any mobile device

• Supports up to 7 local I/O expansion modules or 14 remote I/O modules via TM3 bus

• DIN rail mounting for space‑efficient installation

• IP20 protection for control cabinet environments

• BR2032 lithium battery for real‑time clock backup

• CE, cULus, CSA, RCM, IACS E10, Marine (LR, ABS, DNV, GL) certified

• Meets EN/IEC 61131‑2, UL 508, CSA C22.2 No 142 standards

Applications:

• High‑performance compact machine automation and OEM control systems

• Speed and position control applications requiring 100 kHz PTO/PWM outputs

• Packaging machinery and assembly lines

• Pick‑and‑place and positioning systems

• Conveyor and material handling equipment

• Pump, fan, and HVAC control

• Multi‑axis motion control with CANopen fieldbus architecture

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M241 logic controllers

• Modicon TM3 expansion I/O modules (digital, analog, temperature, safety)

• TM3 bus coupler for remote I/O architectures

• EcoStruxure Machine Expert (formerly SoMachine) programming software (free download)

• TM4ES4 Ethernet module (1 expansion + 2 standalone or 3 standalone)

• CANopen fieldbus devices (up to 63 devices)

• Ethernet/IP and Modbus TCP networks

Typical System Architecture:
24V DC Power Supply
↓
TM241CE40T Modicon M241 Controller
│
├── 24 Discrete Inputs (including 8 fast inputs)
│ └── Sensors, Switches, Encoders (up to 100 kHz HSC)
├── 16 Transistor PNP Outputs (including 4 fast outputs)
│ └── Actuators, Drives, Servos (100 kHz PTO/PWM)
├── Ethernet Port → Modbus TCP / EtherNet/IP / Web Server
├── USB Mini‑B → Programming (EcoStruxure Machine Expert)
├── Serial Links (RS232/RS485) → Legacy Devices / HMIs
├── CANopen → Up to 63 Devices (Drives, I/O, Sensors)
├── SD Card Slot → Program Backup / Data Logging (up to 16 GB)
├── Up to 7 Local TM3 Expansion Modules
└── Up to 14 Remote TM3 Modules via Bus Coupler
↓
EcoStruxure Machine Expert Software (Programming & Configuration)
↓
High‑Performance Machine Control & Automation Applications

Related Products:

• TM3DI16 – 16‑input digital expansion module (screw terminal)

• TM3DQ16T – 16‑output transistor expansion module (PNP)

• TM3DQ16R – 16‑output relay expansion module

• TM3AI8 – 8‑channel analog input module

• TM3AQ4 – 4‑channel analog output module

• TM3TI4 – 4‑channel temperature input module

• TM4ES4 – Ethernet module for M241 expansion

• TM241CE40R – 40 I/O relay version (alternative output type)

• TM241C40T – 40 I/O transistor version without Ethernet

• EcoStruxure Machine Expert – Free programming software download

• SD Card – For program backup, data logging, and firmware updates (up to 16 GB)

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
