Schneider TM3AI4 Analog Input Module 4 Channels 24V DC Screw

Overview

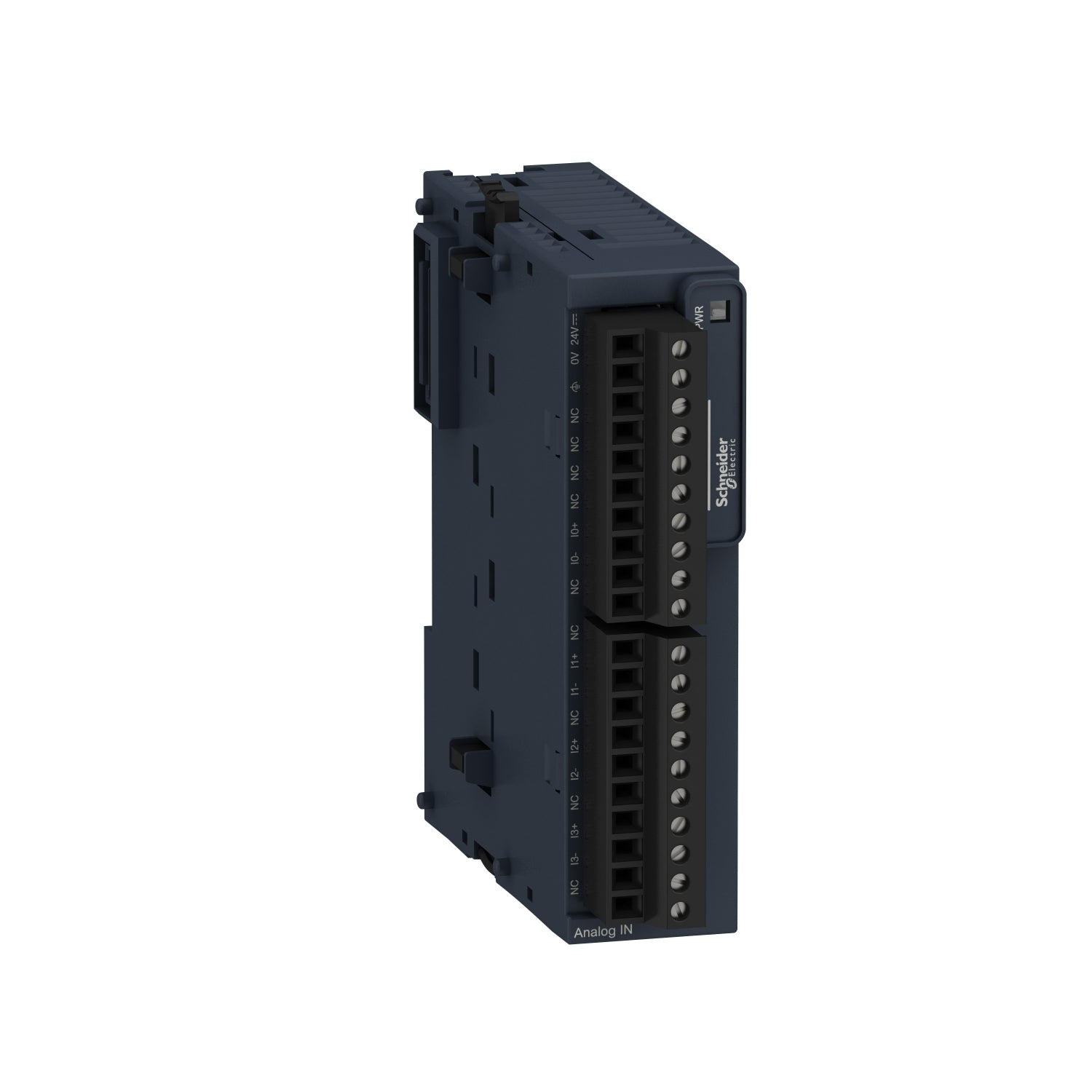

The Schneider Electric TM3AI4 is a high-precision analog input module from the Modicon TM3 expansion range, designed to enhance the analog input capabilities of Modicon M221, M241, M251, and M262 logic controllers. Featuring 4 fully configurable analog input channels with 12-bit resolution (11 bits + sign effective), this module provides accurate measurement of voltage or current signals from a wide range of field devices. Each channel supports multiple input types including 0…10 V, -10…+10 V, 0…20 mA, and 4…20 mA, making the TM3AI4 ideal for controlling variable speed drives, sensors, or any device equipped with a current or voltage input. The module features 1500 V AC isolation between input and supply and 500 V AC between input and internal logic for robust noise immunity. The removable screw terminal block with 3.81 mm pitch simplifies wiring and maintenance. With IP20 protection and a compact 23.6 mm width, the TM3AI4 mounts easily on DIN rail conforming to IEC 60715 and integrates seamlessly via a simple interlocking assembly mechanism.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine Schneider Electric component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• 4 configurable analog input channels – 4 analog input channels with 12‑bit resolution (11 bits + sign effective), enabling precise measurement of a wide range of industrial sensors and field devices.

• Multiple input type support (voltage/current) – Software‑configurable inputs support 0…10 V, -10…+10 V, 0…20 mA, and 4…20 mA on a per‑channel basis, eliminating the need for separate modules for different signal types.

• High accuracy with 1 ms sampling – Absolute accuracy error of ±0.1% of full scale at 25 °C, repeat accuracy of ±0.5% FS, and 1 ms sampling duration with 1 ms conversion time per channel for responsive and reliable measurement.

• Removable screw terminal block – Furnished with a removable screw terminal block with 3.81 mm pitch, simplifying wiring, troubleshooting, and module replacement without re‑terminating field wires.

• High isolation for noise immunity – 1500 V AC isolation between input and supply, and 500 V AC between input and internal logic, protecting the module and connected PLC from electrical faults and noise.

• Wide compatibility with Modicon TM3 controllers – Seamlessly compatible with Modicon M221, M241, M251, and M262 logic controllers via simple interlocking assembly mechanism and bus expansion connector.

• Robust environmental protection (IP20) – Rated IP20, operating temperature range of -10…55 °C (horizontal installation) or -10…35 °C (vertical installation), and storage temperature of -25…70 °C, suitable for industrial control cabinet installations.

• Comprehensive diagnostic LED – Green PWR LED for clear visual indication of module power status, simplifying commissioning and troubleshooting.

• High reliability with Green Premium certification – Certified CE, UKCA, RCM, EAC, cULus, and cULus HazLoc, meeting EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. Green Premium product compliant with RoHS, REACh, and China RoHS regulations.

Technical Specifications

Applications

• Analog signal acquisition from sensors and transmitters in factory automation and packaging machinery.

• Controlling variable speed drives or any device equipped with a current or voltage input.

• Process monitoring in water and wastewater treatment, chemical processing, and food & beverage industries.

• Expanding analog input capacity of Modicon M221, M241, M251, and M262 logic controllers in existing control systems.

• Machine monitoring and data acquisition in material handling, conveying, and assembly systems.

Package Includes

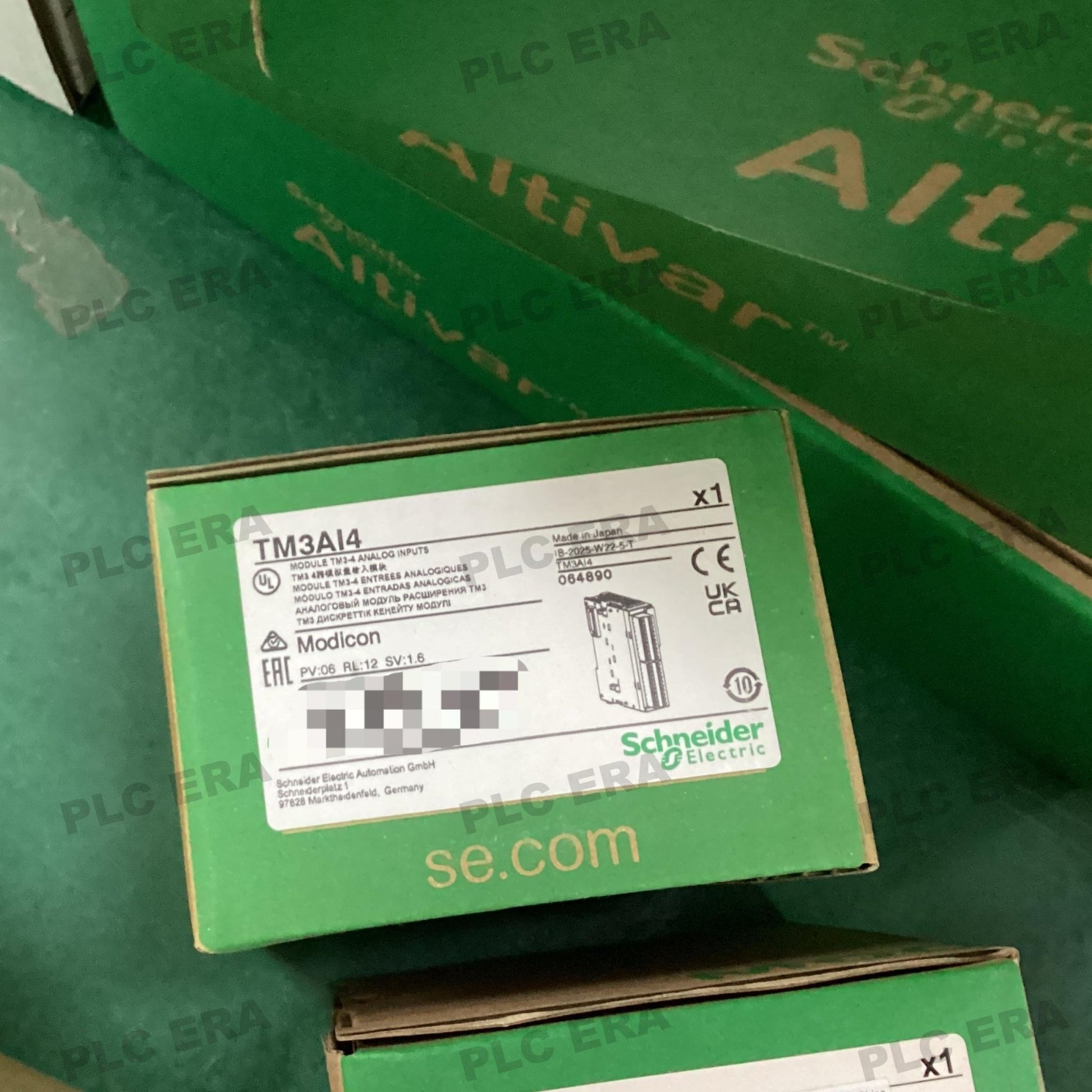

• 1 × Schneider Electric TM3AI4 analog input module

• Removable screw terminal block (pre‑installed)

• Standard documentation (user manual available from Schneider Electric)
