TM3AI8 8-Channel Analog Input Module 24V DC Screw Terminal | Schneider Electric

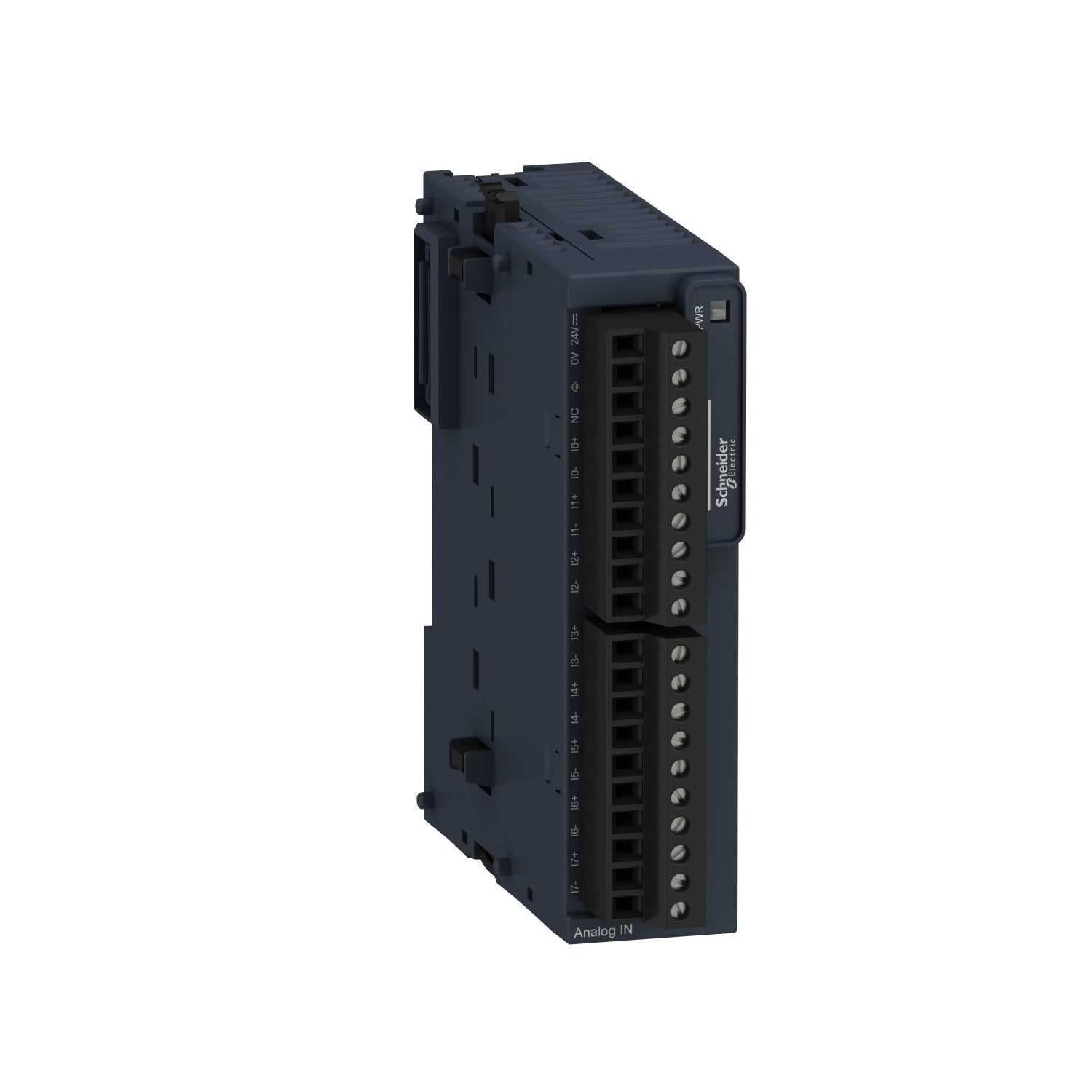

The Original New Schneider Electric TM3AI8 is an 8-channel analog input module for the Modicon TM3 I/O system, designed to expand the analog input capacity of Modicon M221, M241, M251, and M262 logic controllers. It provides 8 configurable channels for voltage (0-10V, ±10V) or current (0-20mA, 4-20mA) signals. A removable screw terminal block ensures secure field wiring. Part of the Modicon TM3 expansion family, it features a simple interlocking assembly mechanism for quick DIN rail mounting.

Core Engineering Highlights:
8 analog input channels (voltage/current) | 12-bit resolution (11 bits + sign) | Configurable input ranges: 0-10V, ±10V, 0-20mA, 4-20mA | 1 ms + 1 ms per channel conversion time | Removable screw terminal block (3.81 mm pitch) | 1500V AC isolation between input and supply | IP20 protection | –10°C to +55°C operating temperature | 23.6 mm width

Key Features:

• Original New Schneider Electric TM3AI8 module

• 8 analog input channels individually configurable for voltage or current

• Supported input ranges: 0-10V, ±10V, 0-20mA, 4-20mA

• 12-bit resolution (11 bits + sign) for precise measurement

• 1 ms + 1 ms per channel conversion time

• 1500V AC isolation between input and supply

• 500V AC isolation between input and internal logic

• Removable screw terminal block for secure and easy wiring

• Green LED for module power status indication

• Simple interlocking assembly with Modicon TM3 controllers

• DIN rail mounting (35 mm, TH35-7.5 or TH35-15)

Applications:

• Analog signal acquisition from pressure, flow, and level sensors

• Voltage and current signal monitoring in industrial automation

• Process control and data acquisition systems

• Packaging machinery and material handling equipment

• OEM equipment requiring Modicon TM3 analog I/O expansion

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221 logic controllers

• Modicon M241 logic controllers

• Modicon M251 logic controllers

• Modicon M262 logic controllers

• EcoStruxure Machine Expert (formerly SoMachine) programming software

• Modicon TM3 I/O expansion bus

Related Products:

• TM3AI8G – 8-channel analog input module (spring terminal version)

• TM3AI4 – 4-channel analog input module

• TM3AQ4 – 4-channel analog output module

• TM3TI4 – 4-channel temperature input module

• TM3DI16 – 16-channel discrete input module

• TM3DQ16T – 16-channel transistor output module

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
