TM3AQ4 4-Channel Analog Output Module 0-10V/4-20mA Screw Terminal | Schneider Electric

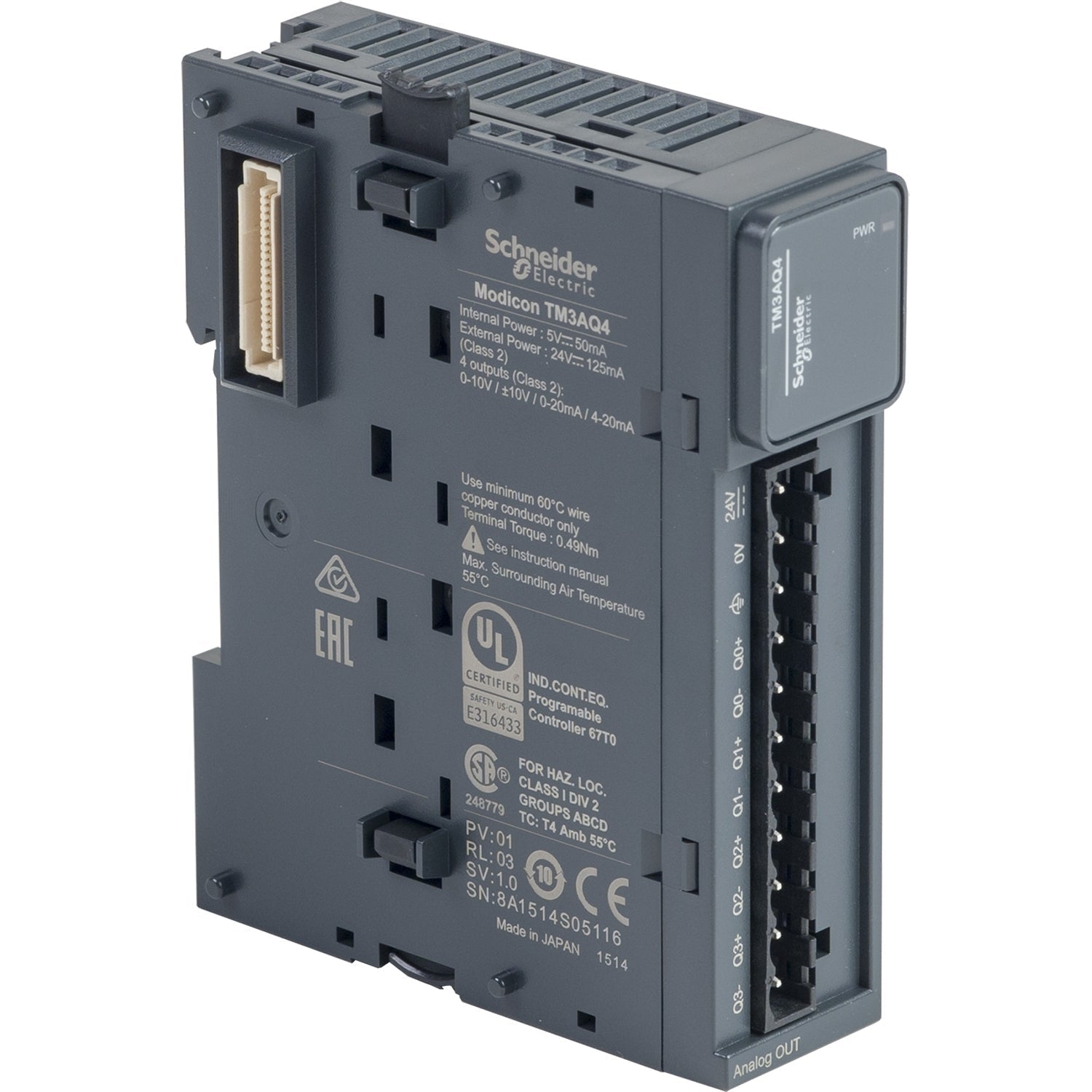

The Original New Schneider Electric TM3AQ4 is a 4-channel analog output module for the Modicon TM3 I/O system, designed to expand the analog output capacity of Modicon M221, M241, M251, and M262 logic controllers. It provides 4 configurable analog output channels for voltage (0-10V, ±10V) or current (0-20mA, 4-20mA) signals. A removable screw terminal block ensures secure field wiring. Part of the Modicon TM3 expansion family, it features a simple interlocking assembly mechanism for quick DIN rail mounting. This module enables precise analog control of actuators, valves, drives, and other field devices in industrial automation applications.

Core Engineering Highlights:
4 analog output channels | Voltage (0-10V, ±10V) and Current (0-20mA, 4-20mA) configurable | 12-bit resolution (11 bits + sign) | 1 ms stabilization time + 1 ms per channel conversion time | Removable screw terminal block (5.08 mm pitch) | 1500V AC isolation (output to supply) / 500V AC isolation (output to logic) | IP20 protection | 23.6 mm width | 0.115 kg weight

Key Features:

• Original New Schneider Electric TM3AQ4 module

• 4 analog output channels individually configurable for voltage or current

• Supported output ranges: 0-10V, ±10V, 0-20mA, 4-20mA

• 12-bit resolution (11 bits + sign) for precise analog control

• 1 ms stabilization time + 1 ms per channel conversion time

• Removable screw terminal block (11 x 2.5 mm², pitch 5.08 mm)

• 1500V AC isolation between output and supply

• 500V AC isolation between output and internal logic

• Green LED for module power status indication

• Simple interlocking assembly with Modicon TM3 controllers

• DIN rail mounting (35 mm, TH35-7.5 or TH35-15)

• IP20 protection with protective cover in place

• CE certified, meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards

Applications:

• Speed reference control for variable frequency drives and servo drives

• Positioning of proportional valves and electric actuators

• Analog control for SCR power controllers and process valves

• Process control signal generation for 4-20mA current loops

• OEM equipment requiring Modicon TM3 analog output expansion

• Machine automation and industrial control systems

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221 logic controllers

• Modicon M241 logic controllers

• Modicon M251 logic controllers

• Modicon M262 logic controllers

• EcoStruxure Machine Expert (formerly SoMachine) programming software

• Modicon TM3 I/O expansion bus

Related Products:

• TM3AQ4G – Spring terminal version of the 4-output analog module

• TM3AQ2 – 2-channel analog output module (lower density)

• TM3AI4 – 4-channel analog input module (voltage/current)

• TM3TI4 – 4-channel temperature input module

• TM3DI16 – 16-channel discrete input module

• TM3DQ16T – 16-channel transistor output module
