TM3AQ4G Modicon TM3 4-Channel Analog Output Module Spring Terminal | Schneider Electric

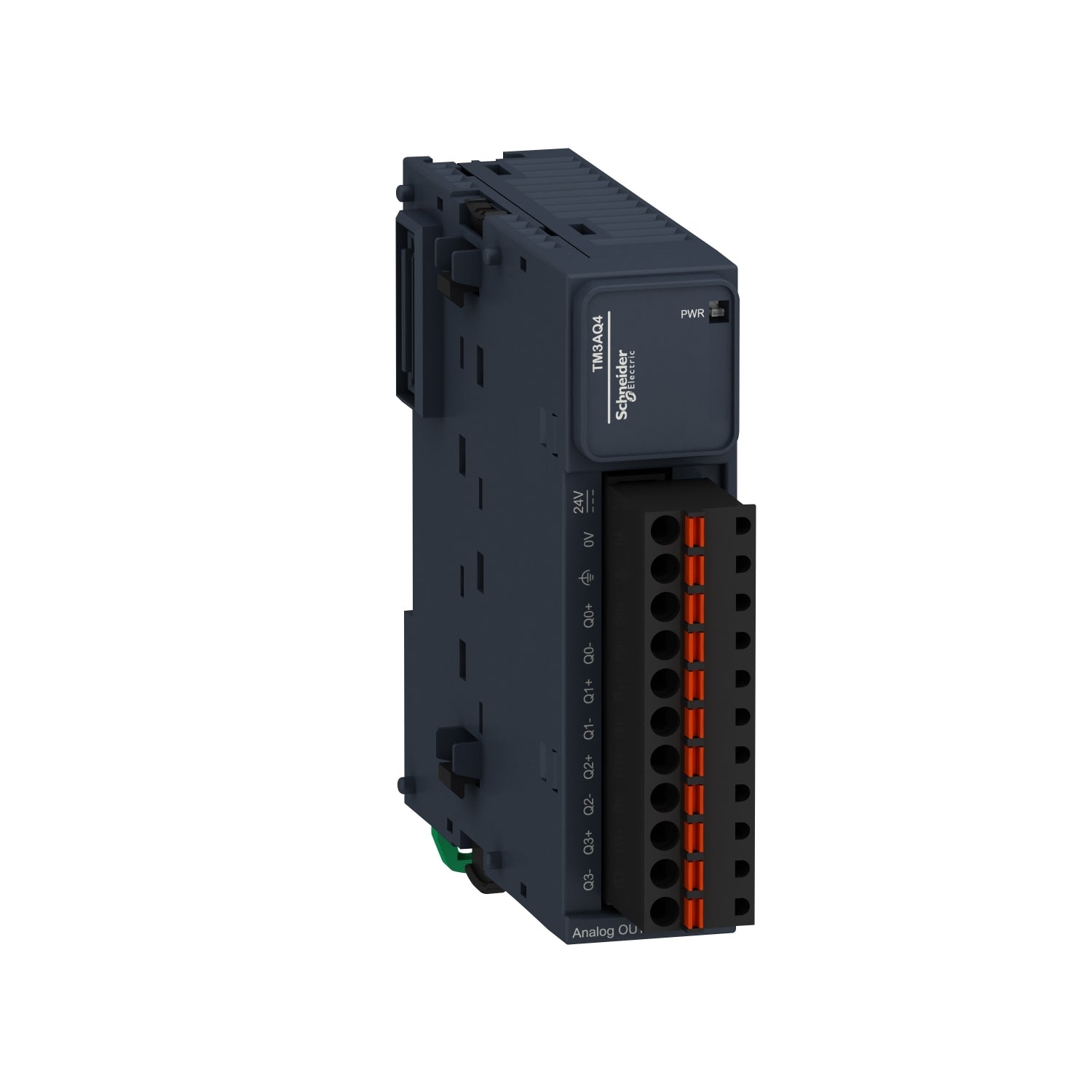

The Original New Schneider Electric TM3AQ4G Modicon TM3 Analog Output Module is a 4-channel analog output expansion module for the Modicon TM3 I/O system. Designed for use with M221, M241, M251, and M262 controllers, it provides precise voltage (0–10 V, –10…+10 V) or current (0–20 mA, 4–20 mA) signals for controlling variable speed drives, valves, actuators, and other analog devices. The spring terminal block enables tool‑free wiring, reducing installation time. Part of the Modicon TM3 series, it delivers reliable analog control for machine automation and industrial applications.

Core Engineering Highlights:
4 analog output channels (voltage/current configurable) | 12‑bit or 11‑bit + sign resolution | 0–10 V, –10…+10 V, 0–20 mA, 4–20 mA output ranges | 1 ms settling time | ±0.2% accuracy at 25°C | Removable spring terminal block (5.08 mm pitch) | IP20 protection | 24 V DC | 100 g weight

Key Features:

• Original New Schneider Electric TM3AQ4G module

• 4 analog output channels, individually configurable for voltage or current

• Output ranges: 0–10 V, –10…+10 V, 0–20 mA, 4–20 mA

• 12‑bit resolution (11‑bit + sign for bipolar ranges)

• Removable spring terminal block for tool‑free wiring

• 1 ms settling time for responsive control

• ±0.2% of full scale accuracy at 25°C

• Short‑circuit and open‑circuit protection on outputs

• 1500 V AC isolation between output and supply

• 500 V AC isolation between output and internal logic

• Green PWR LED for module status indication

• Shielded twisted‑pair cable support (max 30 m)

Applications:

• Speed reference control for variable speed drives

• Valve and actuator positioning

• Analog signal generation for process control

• Machine automation and OEM equipment

• SCADA system analog output expansion

• 4–20 mA current loop control

Technical Specifications:

System Compatibility:

• Compatible with Modicon M221 Logic Controller

• Modicon M241 Machine PLC

• Modicon M251 Logic Controller

• Modicon M262 Motion Controller

• Modicon TM3 I/O expansion system

Related Products:

• TM3AQ2 – 2-channel analog output module (lower density)

• TM3AQ4 – 4-channel analog output module (screw terminal version)

• TM3AQ4G – 4-channel analog output module (spring terminal, current model)

• TM3AI4 – 4-channel analog input module

• TM3AI8 – 8-channel analog input module

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
