TM3DQ32TK 32-Channel Transistor Output Module PNP 0.1A HE10 | Schneider Electric

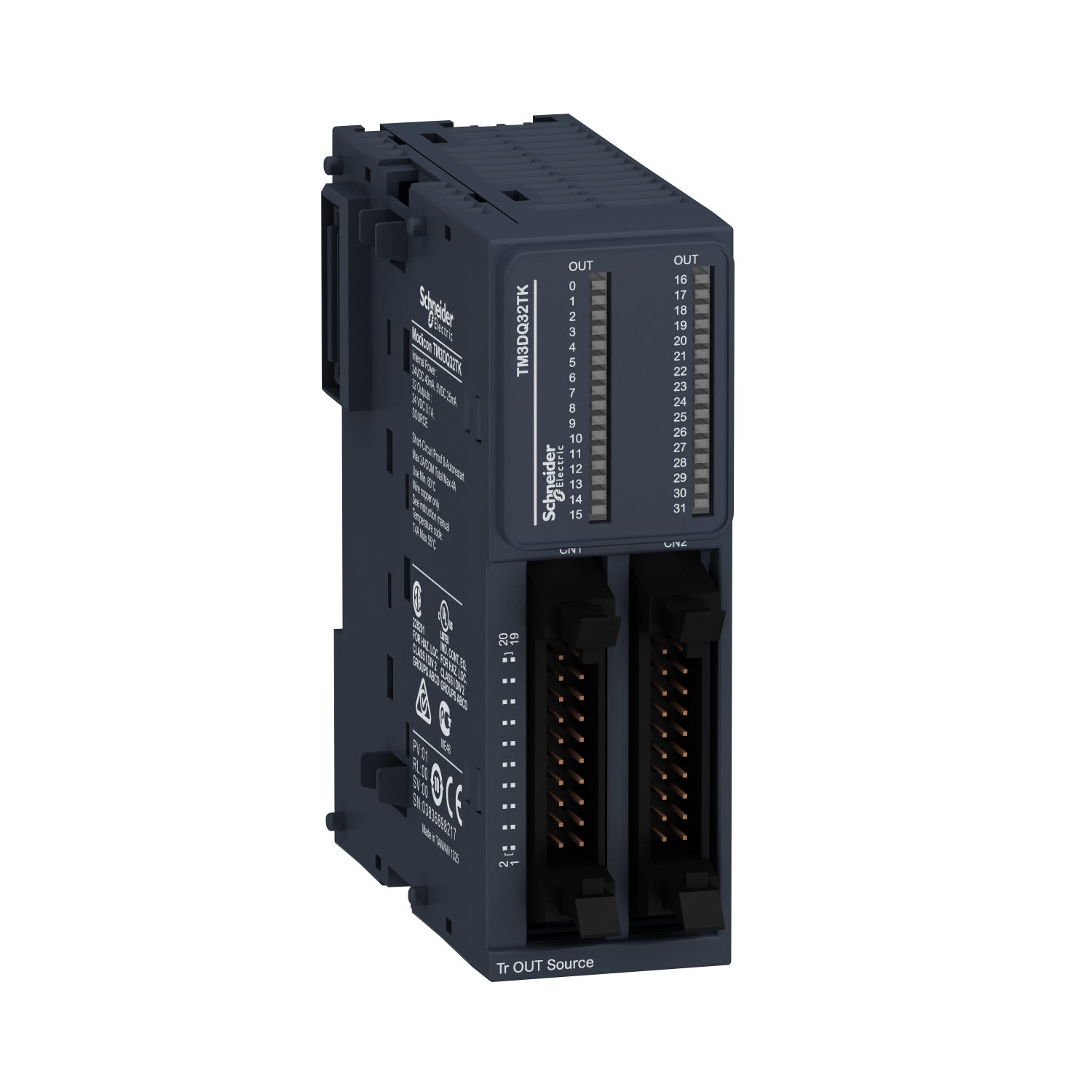

The Original New Schneider Electric TM3DQ32TK is a 32-channel discrete output module for the Modicon TM3 I/O system, designed to expand the digital output capacity of Modicon M221, M241, M251, and M262 logic controllers. It provides 32 transistor outputs with source (PNP, positive) logic for 24V DC loads at 0.1A per channel [6†L11-L12]. The module uses two HE10 (MIL 20) connectors for high-density wiring, making it suitable for machine automation, conveyor control, and OEM applications where space and cost efficiency are important.

Core Engineering Highlights:
32 PNP transistor outputs (source logic) | 0.1A per channel / 2A per group | 24V DC (19.2‑28.8V) | 450µs ON/OFF response time | 2 groups of 16 channels with common per group | HE10 (MIL 20) connectors | Short-circuit protection with auto‑reset | Reverse polarity protection | 500V AC isolation (output to logic) | 33.5mm width | IP20 | 0.112kg | –10°C to +55°C

Key Features:

• Original New Schneider Electric TM3DQ32TK module

• 32 transistor outputs (PNP, source logic)

• 24V DC rated output voltage (19.2–28.8V range)

• 0.1A output current per channel, 2A per group (2 groups of 16 channels)

• 450µs turn-on / 450µs turn-off response time

• Short-circuit protection with auto‑reset after overload

• Reverse polarity protection

• Clamping voltage: typically 50V DC

• Maximum tungsten load: <1.2W per channel

• Leakage current: 0.1mA max when OFF

• Voltage drop: <0.4V

• 500V AC isolation between output and internal logic

• HE10 (MIL 20) connectors for high-density wiring

• Green LED per channel for output status indication

• Simple interlocking assembly with Modicon TM3 controllers

• DIN rail mounting (35mm, TH35-7.5 or TH35-15)

• IP20 protection with protective cover in place

• 0.112kg net weight

Applications:

• High-density actuator, solenoid, and relay control in machine automation

• Conveyor and material handling systems

• Packaging machinery and assembly lines

• Signal conversion to 24V DC loads

• OEM equipment requiring Modicon TM3 output expansion with HE10 connectors

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221 logic controllers

• Modicon M241 logic controllers

• Modicon M251 logic controllers

• Modicon M262 logic controllers

• EcoStruxure Machine Expert (formerly SoMachine) programming software

• Modicon TM3 I/O expansion bus

• HE10 (MIL 20) connector cables

Related Products:

• TM3DI32K – 32-channel discrete input module (HE10 connector)

• TM3DQ32TK – 32-channel transistor output module (current model)

• TM3DQ32UK – 32-channel transistor output module (NPN version)

• HE10 connector cables – For high-density wiring to field devices

• TM3DI16 – 16-channel discrete input module

• TM3DQ16T – 16-channel transistor output module (PNP, screw terminal)
