TM3DQ8T 8-Channel Transistor Output Module PNP 0.5A Screw | Schneider Electric

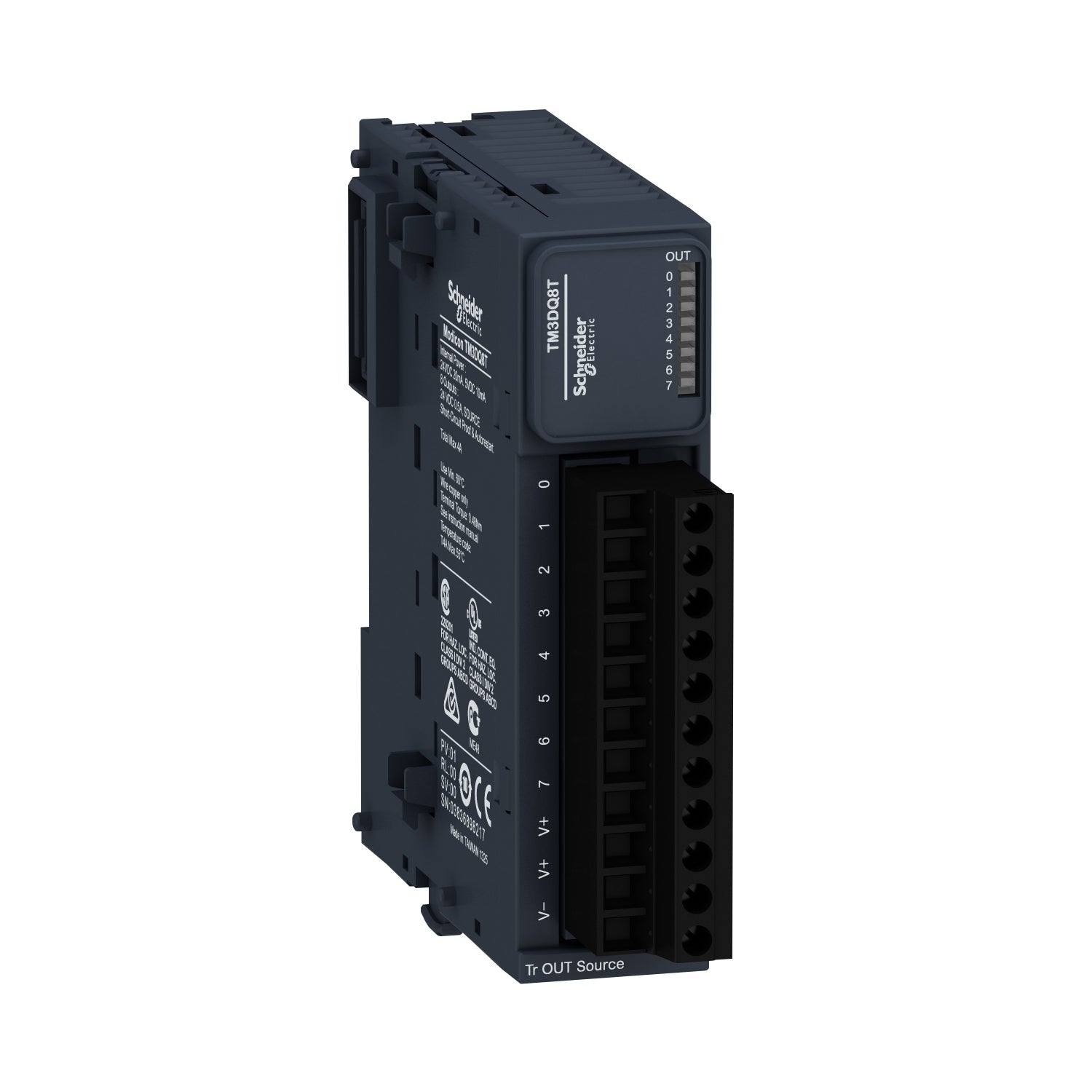

The Original New Schneider Electric TM3DQ8T is an 8-channel discrete output module for the Modicon TM3 I/O system, designed to expand the digital output capacity of Modicon M221, M241, M251, and M262 logic controllers. It provides 8 transistor outputs with source (PNP, positive) logic for 24V DC loads at 0.5A per channel [6†L11-L15]. A removable screw terminal block ensures secure field wiring [6†L23]. Part of the Modicon TM3 expansion family, it features a simple interlocking assembly mechanism for quick DIN rail mounting and is suitable for machine automation, conveyor control, and OEM applications.

Core Engineering Highlights:
8 PNP transistor outputs (source logic) | 0.5A per channel / 4A per group | 24V DC (19.2-28.8V) [6†L13-L14] | 450 µs ON/OFF response time [6†L17-L18] | Short-circuit protection with auto‑reset [6†L18-L20] | Reverse polarity protection [6†L21] | 500V AC isolation (output to logic) [6†L22] | Removable screw terminal block (5.08 mm pitch) [8†L14] | IP20 protection | –10°C to +55°C horizontal operation [8†L35]

Key Features:

• Original New Schneider Electric TM3DQ8T module

• 8 transistor outputs (PNP, source logic)

• 24V DC rated output voltage (19.2–28.8V range)

• 0.5A output current per channel, 4A per group (1 group of 8 channels)

• 450 µs turn-on / 450 µs turn-off response time [6†L17-L18]

• Short-circuit protection with auto‑reset after overload [6†L18-L20]

• Reverse polarity protection [6†L21]

• Clamping voltage: typically 50V DC [6†L21]

• Maximum tungsten load: <12W [6†L16]

• Leakage current: 0.1mA max when OFF [6†L15-L16]

• Voltage drop: <0.4V [6†L15]

• 500V AC isolation between output and internal logic [6†L22]

• Removable screw terminal block (11 x 2.5 mm², pitch 5.08 mm) [8†L14]

• Green LED per channel for output status indication [8†L13]

• Simple interlocking assembly with Modicon TM3 controllers

• DIN rail mounting (35 mm, TH35-7.5 or TH35-15) [8†L18]

• IP20 protection with protective cover in place [8†L38]

• Unshielded cable length: <30m [8†L15-L16]

Applications:

• Actuating solenoids, relays, and indicator lights in machine control

• Conveyor and material handling equipment

• Packaging machinery and assembly lines

• Controlling variable speed drives or devices with current/voltage inputs

• OEM equipment requiring Modicon TM3 output expansion

• Factory automation and process control systems

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221 logic controllers [8†L3]

• Modicon M241 logic controllers [8†L3]

• Modicon M251 logic controllers [8†L3]

• Modicon M262 logic controllers [8†L3]

• EcoStruxure Machine Expert (formerly SoMachine) programming software

• Modicon TM3 I/O expansion bus

Installation Notes:

• For inductive DC loads, connect a free-wheeling diode in parallel to each load

• For inductive AC loads, use an RC snubber in parallel to each load

• Refer to Schneider Electric's output protection guidelines for inductive load applications [6†L27-L30]

• The module uses 1 common line for all 8 channels — all outputs share the same common [6†L12]

• Do not exceed the total group current of 4A per group [6†L14-L15]

Related Products:

• TM3DQ8TG – Spring terminal version of the 8-output transistor module

• TM3DQ16T – 16-channel transistor output module (PNP, 0.5A)

• TM3DQ8R – 8-channel relay output module

• TM3DI16 – 16-channel discrete input module

• TM3AI8 – 8-channel analog input module

• TM3AQ4 – 4-channel analog output module
