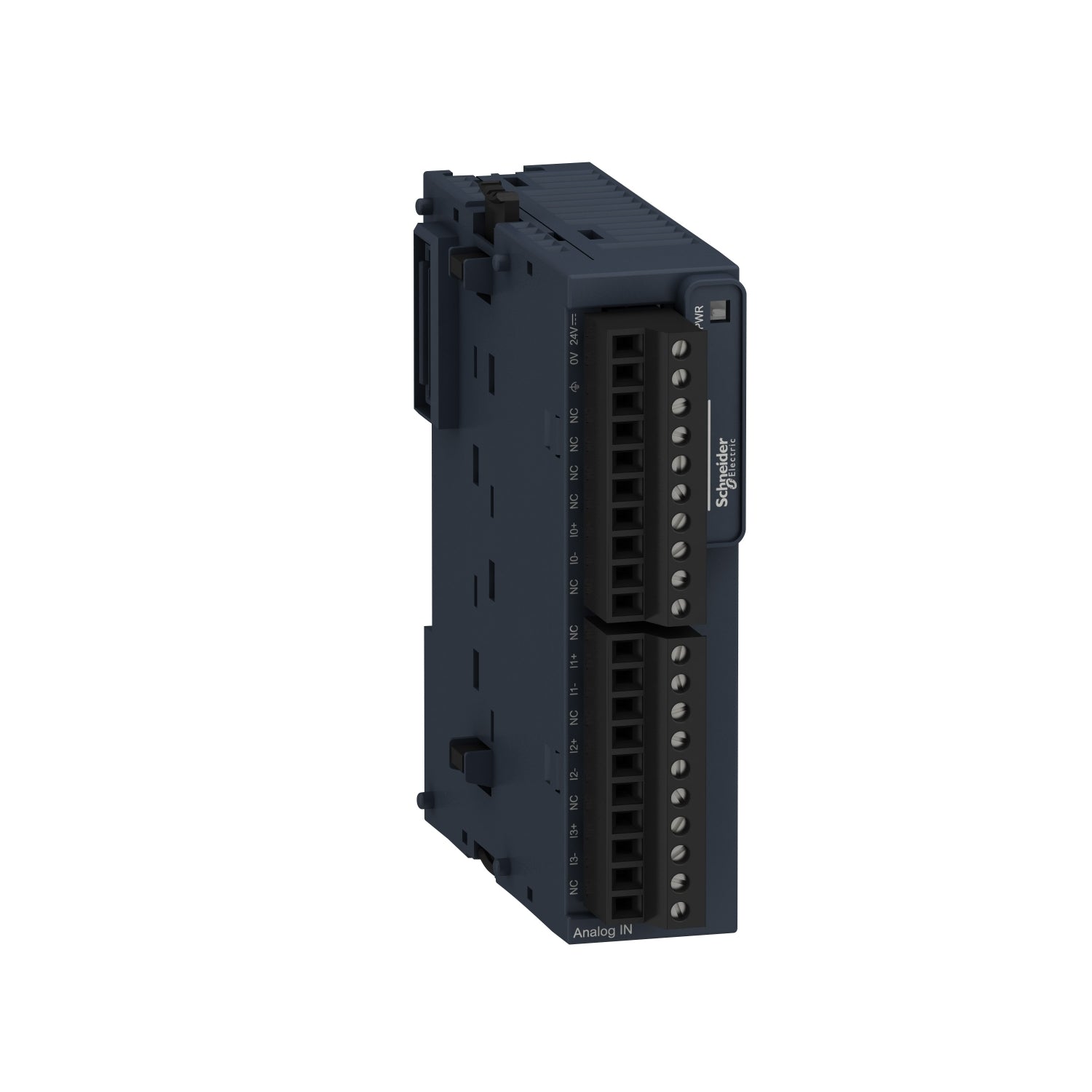

The Original New Schneider Electric TM3TI4 is a 4-channel analog input module for the Modicon TM3 I/O system, designed to expand the analog measurement capability of Modicon M221, M241, M251, and M262 logic controllers. It provides 4 configurable input channels supporting voltage (±10V, 0-10V), current (0-20mA, 4-20mA), thermocouple (types K, J, R, S, B, E, T, N, C), and 3-wire RTD (Pt100, Pt1000, Ni100, Ni1000) signals. A removable screw terminal block ensures secure field wiring. Part of the Modicon TM3 expansion family, it features a simple interlocking assembly mechanism for quick DIN rail mounting.

Core Engineering Highlights:
4 configurable analog input channels | Voltage (±10V, 0-10V), Current (0-20mA, 4-20mA), Thermocouple (K, J, R, S, B, E, T, N, C), RTD (Pt100, Pt1000, Ni100, Ni1000) | 16-bit resolution (15 bits + sign) | 1500V AC isolation (external power supply to inputs) | Removable screw terminal block (3.81 mm pitch) | IP20 protection | –10°C to +55°C operating temperature | 23.6 mm width

Key Features:

  • Original New Schneider Electric TM3TI4 module

  • 4 input channels individually configurable for voltage, current, thermocouple, or RTD

  • Supported input types: Thermocouple K, J, R, S, B, E, T, N, C; RTD Pt100, Pt1000, Ni100, Ni1000

  • 16-bit resolution (15 bits + sign) for high-precision measurement

  • 1500V AC isolation between external power supply and inputs

  • 500V AC isolation between inputs and internal logic circuits

  • Sample duration time software-configurable: 10 ms or 100 ms per enabled channel

  • Removable screw terminal block for secure and easy wiring

  • Single-ended input with isolated thermocouple support

  • Green LED for module power status indication

  • Simple interlocking assembly with Modicon TM3 controllers

  • DIN rail mounting (35 mm, TH35-7.5 or TH35-15)

  • IP20 protection with protective cover in place

Applications:

  • Multi-zone temperature monitoring with thermocouple or RTD sensors

  • Analog signal acquisition from pressure, flow, and level transmitters

  • Process control and industrial automation systems

  • Packaging machinery and material handling equipment

  • OEM equipment requiring Modicon TM3 analog input expansion

Technical Specifications:



Attribute Specification
Catalog Number TM3TI4
Product Family Modicon TM3
Product Type Analog input module
Number of Channels 4
Input Types Voltage: 0-10V, ±10V; Current: 0-20mA, 4-20mA; Thermocouple: K, J, R, S, B, E, T, N, C; RTD: Pt100, Pt1000, Ni100, Ni1000
Resolution 16 bits, or 15 bits + sign (65536 points)
Input Impedance Voltage: ≥1 MΩ; Current: ≤50 Ω; Thermocouple/RTD: ≥1 MΩ
Sample Duration Voltage/Current: 10 ms or 100 ms per enabled channel; Thermocouple/RTD: 100 ms per enabled channel
Conversion Time Thermocouple/RTD: 100 ms + 100 ms per channel + 1 controller cycle time; Voltage/Current: 10 ms + 10 ms per channel + 1 controller cycle time
Accuracy at 25°C ±0.2% of full scale (voltage/current/RTD); ±0.2% of full scale (thermocouple, varies by type)
Temperature Drift ±0.01% of full scale per °C
Repeatability ±0.5% of full scale
Non-linearity ±0.2% of full scale
Isolation External supply to inputs: 1500V AC; Inputs to internal logic: 500V AC
Rated Supply Voltage 24V DC
Supply Voltage Limits 20.4…28.8V
Current Consumption 45-50mA at 5V DC via bus; 35-40mA at 24V DC via external supply
Cable Type Twisted shielded pairs, max 30m
Electrical Connection 10 x 1.5 mm² removable screw terminal block, pitch 3.81 mm
Width 23.6 mm
Height 90 mm
Depth 70 mm
Net Weight 0.11 kg (110 g)
Protection Rating IP20
Mounting DIN rail TH35-7.5 or TH35-15 (IEC 60715)
Operating Temperature –10°C to +55°C (horizontal); –10°C to +35°C (vertical)
Storage Temperature –25°C to +70°C
Standards IEC 61131-2, EN/IEC 61010-2-201
Certifications CE, cULus, UKCA, RCM, EAC
EAN 3606480611285

System Compatibility:

  • Schneider Electric Modicon M221 logic controllers

  • Modicon M241 logic controllers

  • Modicon M251 logic controllers

  • Modicon M262 logic controllers

  • EcoStruxure Machine Expert (formerly SoMachine) programming software

  • Modicon TM3 I/O expansion bus

Related Products:

  • TM3TI4G – Spring terminal version of the 4-input temperature module

  • TM3TI8T – 8-channel temperature input module

  • TM3AI4 – 4-channel analog input module (voltage/current only)

  • TM3AQ4 – 4-channel analog output module

  • TM3DI16 – 16-channel discrete input module

  • TM3DQ16T – 16-channel transistor output module

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Modicon, and EcoStruxure are trademarks of Schneider Electric SE.
