TM3TI8T 8-Channel Temperature Input Module TC/RTD/NTC Screw Terminal | Schneider Electric

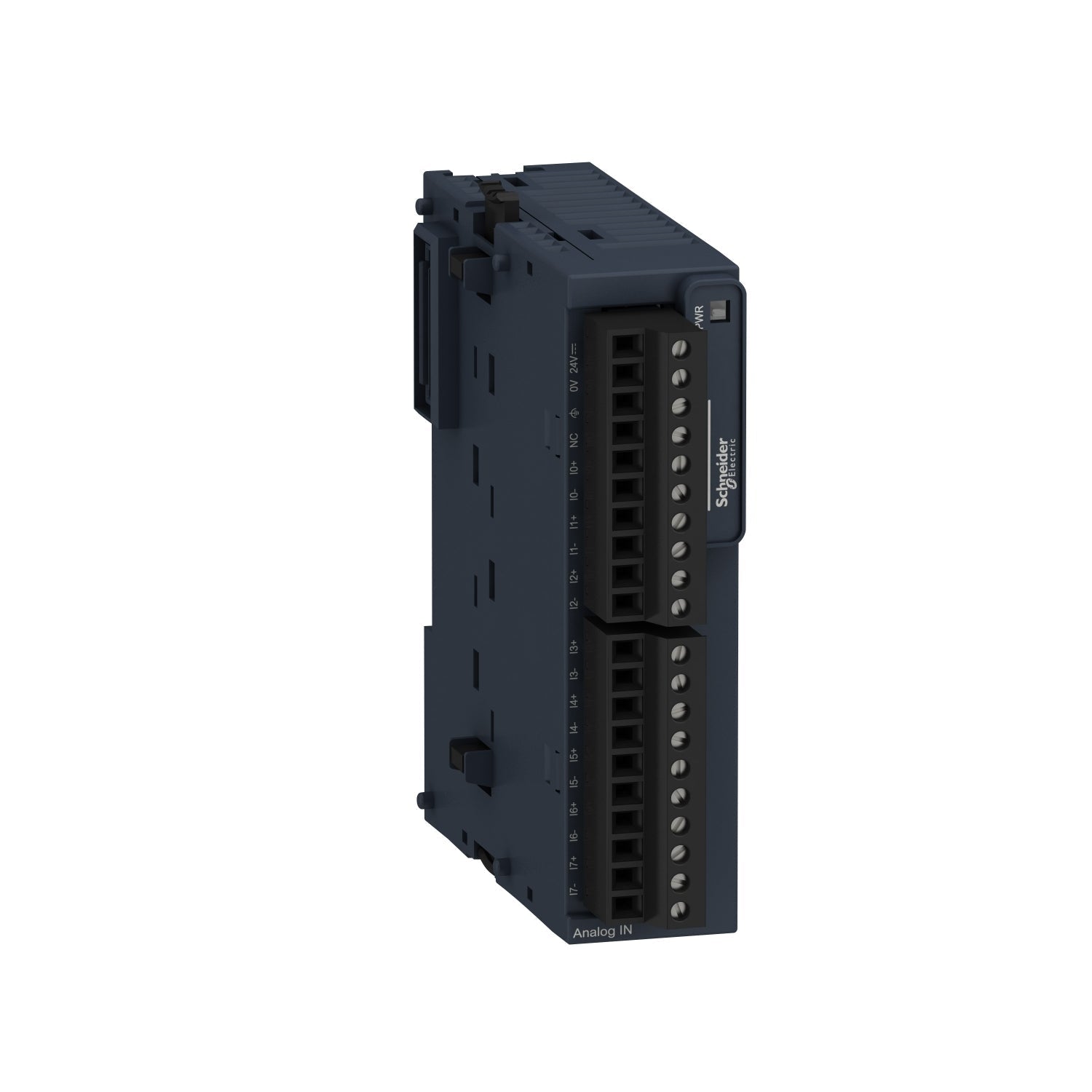

The Original New Schneider Electric TM3TI8T is an 8‑channel analog input module for the Modicon TM3 I/O system, designed to expand the temperature measurement capability of Modicon M221, M241, M251, and M262 logic controllers. It provides 8 configurable input channels supporting thermocouple (types B, C, E, J, K, N, R, S, T), NTC/PTC thermistor, and resistance (ohmmeter) sensors with 16‑bit resolution (15 bits + sign). A removable screw terminal block ensures secure field wiring. Part of the Modicon TM3 expansion family, it features a simple interlocking assembly mechanism for quick DIN rail mounting.

Core Engineering Highlights:
8 configurable temperature input channels | Thermocouple (B, C, E, J, K, N, R, S, T), NTC/PTC thermistor, and resistance sensors | 16‑bit resolution (15 bits + sign) | 100 ms sampling duration per enabled channel | 1500V AC isolation (external supply to inputs) | Removable screw terminal block (3.81 mm pitch) | IP20 protection | –10°C to +55°C operating temperature | 23.6 mm width | 0.11 kg weight

Key Features:

• Original New Schneider Electric TM3TI8T module

• 8 input channels configurable for thermocouple, thermistor, or resistance measurement

• Supports thermocouple types: B, C, E, J, K, N, R, S, T

• Supports NTC thermistor: 100 Ω…200 kΩ (–90…150 °C)

• Supports PTC thermistor: 100 Ω…10 kΩ

• Supports resistance measurement: 100 Ω…32 kΩ

• 16‑bit resolution (15 bits + sign) for high‑precision measurement

• 100 ms sampling duration per enabled channel

• 1500V AC isolation between external power supply and inputs

• 500V AC isolation between inputs and internal logic circuits

• Input filter configurable: 0…10 s (per 0.01 s unit)

• Removable screw terminal block (10 x 1.5 mm², pitch 3.81 mm)

• Green LED for module power status indication

• Simple interlocking assembly with Modicon TM3 controllers

• DIN rail mounting (35 mm, TH35-7.5 or TH35-15)

• IP20 protection with protective cover in place

• Use only isolated thermocouples

• Cable type: twisted shielded pairs, <30 m

Applications:

• Multi‑zone temperature monitoring with thermocouples or RTD sensors

• Industrial furnace and oven temperature control

• HVAC system temperature measurement

• Machine condition monitoring (bearings, windings, hydraulic systems)

• Process control and data acquisition systems

• OEM equipment requiring Modicon TM3 temperature input expansion

Technical Specifications:

Input Types & Ranges:

Accuracy & Performance:

Power & Physical:

System Compatibility:

• Schneider Electric Modicon M221 logic controllers

• Modicon M241 logic controllers

• Modicon M251 logic controllers

• Modicon M262 logic controllers

• EcoStruxure Machine Expert (formerly SoMachine) programming software

• Modicon TM3 I/O expansion bus

Installation Notes:

• Use only isolated thermocouples

• All shields of sensor cables must be referenced to the logic controller ground

• The module operates in self‑scan mode with Sigma‑Delta ADC conversion

• Thermocouple R and S accuracy: ±6°C at 0…200°C

• Thermocouple B: Not available at 0…300°C

• Thermocouple K, J, E, T, N: ±0.4% of full scale under 0°C

Related Products:

• TM3TI8TG – Spring terminal version of the 8‑input temperature module

• TM3TI4 – 4‑channel temperature input module (screw terminal)

• TM3AI8 – 8‑channel analog input module (voltage/current)

• TM3AQ4 – 4‑channel analog output module

• TM3DI16 – 16‑channel discrete input module

• TM3DQ16T – 16‑channel transistor output module
