VW3A3627 PROFINET Communication Module 2xRJ45 100Mbps | Schneider Electric

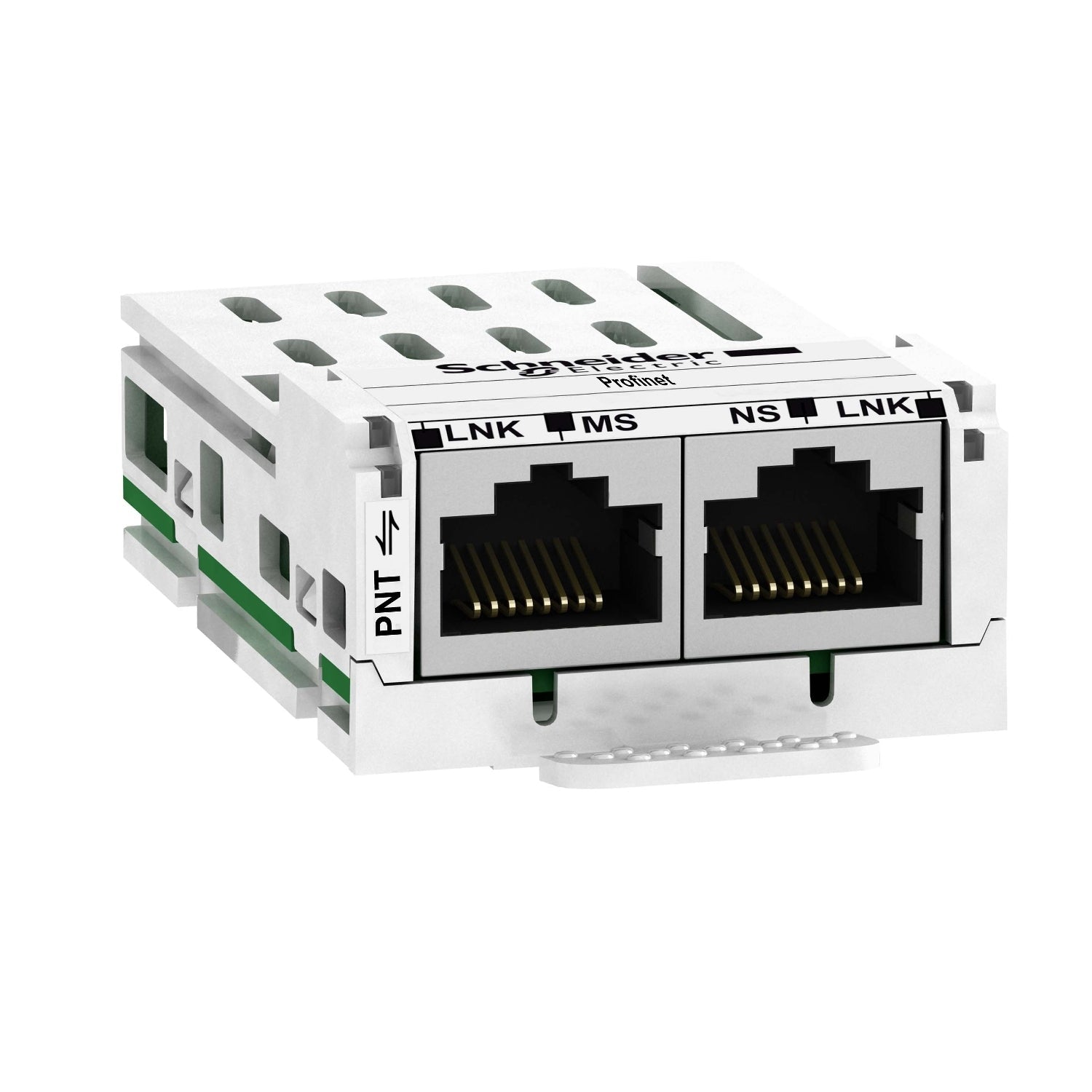

The Original New Schneider Electric VW3A3627 is a PROFINET communication module designed for Altivar series variable speed drives, enabling seamless integration into PROFINET industrial networks. Featuring a dual-port RJ45 switch for line and ring topologies, it supports 100 Mbps transmission rates and PROFIdrive bus profile for standardized drive communication. The removable module allows flexibility in selecting the drive communication protocol at the last moment, facilitating installation project management.

Core Engineering Highlights:
PROFINET communication protocol | 2 x RJ45 Ethernet connectors with integrated switch | 100 Mbps transmission rate | PROFIdrive bus profile | Embedded web server for configuration and monitoring | 4 diagnostic LEDs (Module Status, Network Status, TX/RX port 1 & 2) | Removable module design | 0.3 kg net weight | IP20 protection | 0°C to +60°C operating temperature

Key Features:

• Original New Schneider Electric VW3A3627 module

• PROFINET communication protocol with PROFIdrive bus profile

• Dual RJ45 ports with integrated switch supports line and ring topologies (with MRP)

• 100 Mbps transmission rate for high-speed data exchange

• Embedded web server with data editor, drive monitor, drive parameters, drive recorder, Ethernet statistics, iPar client settings, and Save/Restore drive configuration

• Removable module allows last-minute decisions on drive communication protocol

• 4 diagnostic LEDs: MS (Module Status), NS (Network Status), TX/RX (Transmit/Receive port 1), TX/RX (Transmit/Receive port 2)

• Supports Media Redundancy Protocol (MRP) for ring topology networks

• Standardized communication via PROFIdrive profile

• Green Premium product with RoHS compliance

• IP20 protection for control cabinet installation

Applications:

• Connecting Altivar drives to PROFINET industrial networks

• Integration with Siemens SIMATIC S7-1200, S7-1500, and other PROFINET controllers

• Factory automation and process control systems

• Multi-drive networks with line or ring topology

• OEM equipment requiring PROFINET communication

• Retrofit and upgrade of existing Altivar drives for PROFINET connectivity

Technical Specifications:

System Compatibility:

• Schneider Electric Altivar Process ATV600 (ATV630, ATV650)

• Altivar Process ATV900 (ATV930, ATV950)

• Altivar Machine ATV320

• Altivar Machine ATV340 (except Sercos drives)

• Altivar 32

• Altivar Process Modular

Related Products:

• VW3A3608 – CANopen communication module for Altivar

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A3627 – PROFINET communication module (current model)

• VW3A9533 – EMC conformity kit for Altivar drives

• PROFINET GSDML file – Available for download from Schneider Electric

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Altivar, and EcoStruxure are trademarks of Schneider Electric SE.
