SICK GTB6-P4211 1052438 Photoelectric Proximity Sensor PNP

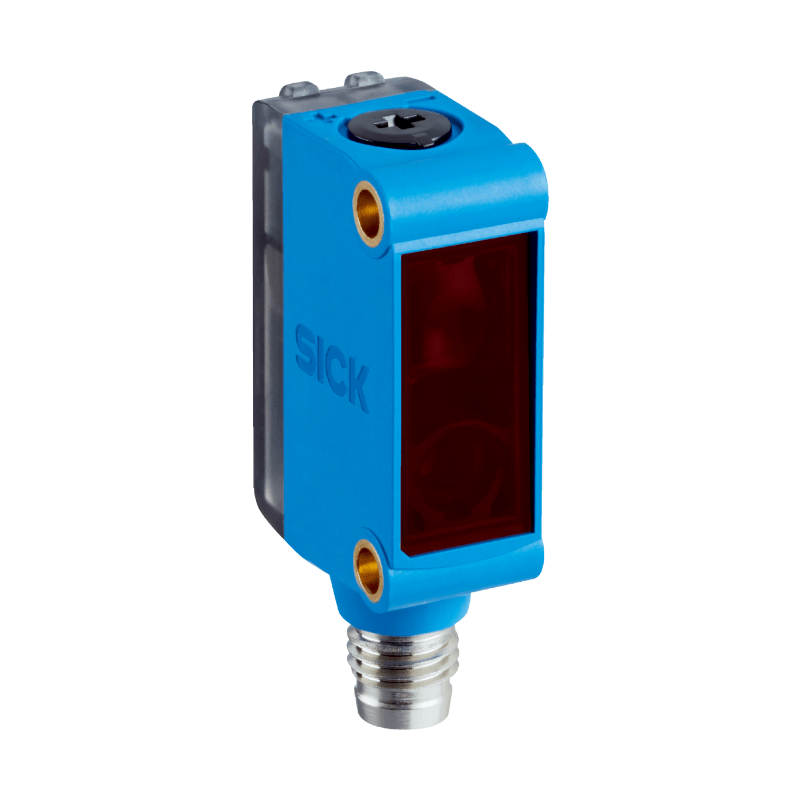

SICK GTB6-P4211 is a miniature photoelectric proximity sensor with background suppression from the G6 series. Using PinPoint LED technology (visible red light, 650 nm wavelength) with a precise Ø6 mm light spot at 100 mm, it reliably detects objects from 5 mm to 250 mm maximum. Equipped with a PNP output switchable between light‑on and dark‑on through an onboard selector, an M8 4-pin male connector for electrical interface, and an IP67 housing, this sensor is suitable for factory automation, material handling, and packaging applications.

Applications:

• Automated production lines and assembly systems

• Material handling and conveyor systems for object presence detection

• Quality control stations in manufacturing

• Packaging, printing, and bottling machinery

• Process automation and logistics applications

Core Specifications:

• Functional principle: Photoelectric proximity sensor with background suppression

• Supply voltage UB: 10–30 V DC (with ±10 % ripple)

• Current consumption: ≤ 30 mA (no‑load)

• Output type: PNP, light/dark switching (selectable)

• Output current Imax.: ≤ 100 mA

• Response time: < 625 µs

• Switching frequency: 1,000 Hz

• Housing material: Plastic (ABS/PC), front screen PMMA

• Connection: Male connector M8, 4-pin

• Enclosure rating: IP67

• Dimensions (W × H × D): 12 mm × 31.5 mm × 21 mm

• Weight: 20 g

Advanced Specifications:

• Sensing range max.: 5 mm … 250 mm (with 90 % reflectance white)

• Sensing range: 35 mm … 140 mm (for reliable background suppression)

• Light source: PinPoint LED, visible red light

• Wave length: 650 nm

• Light spot size (distance): approx. Ø6 mm at 100 mm

• Adjustment: Mechanical spindle, 5 turns

• Circuit protections: A (reverse polarity of input/output), B (reverse protection of all electrical connections), D (output overcurrent and short‑circuit protection)

• Ambient operating temperature: –25 °C … +55 °C

• Storage temperature: –40 °C … +70 °C

• UL File No.: NRKH.E348498 & NRKH7.E348498

• RoHS compliant

System Integration:

• Part of the SICK G6 series of miniature photoelectric sensors. Mounting holes are spaced 1 inch (25.4 mm) apart for compatibility with standard industrial brackets.

• For electrical integration, wire the M8 4-pin male connector to a compatible PLC input (PNP), selecting light‑on or dark‑on operation as required via the DIP switch.

• Adjust the sensing threshold by turning the mechanical spindle (5 turns). The yellow LED indicates output switching state.

Standards & Compliance:
CE certified, cULus recognized, UL (NRKH.E348498 & NRKH7.E348498), RoHS compliant. Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• GTB6-N1211 – NPN output variant, M8 4-pin connector, for sinking input PLCs

• GTE6-P4211 – Through‑beam photoelectric sensor pair, PNP output, same housing and connection type

• GRL6S-P2436 – Retro‑reflective photoelectric sensor for longer ranges up to 10 m

• DOL-0804-G02M – M8 4‑pin female connector cable (2 m, straight)
