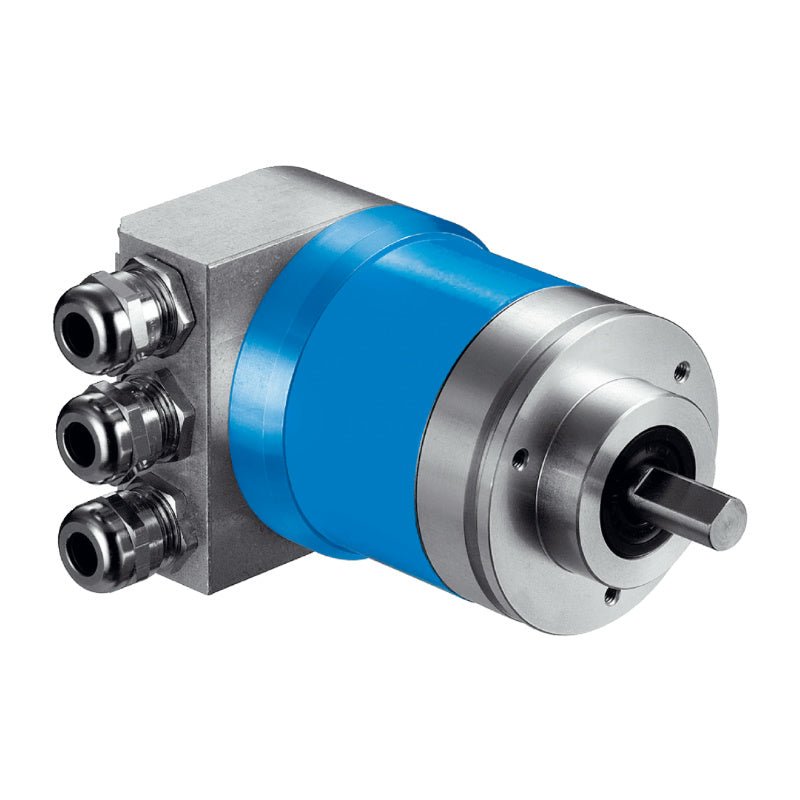

SICK ATM60-P4H13X13 PROFIBUS DP Absolute Multiturn Encoder

SICK ATM60-P4H13X13 (1030013) is a rugged multiturn absolute encoder with a PROFIBUS DP interface and a 13-bit x 13-bit (8192 x 8192) resolution, providing a total of 26 bits for precise position feedback. The heavy‑duty aluminium housing (IP67) uses a contactless, wear‑free magnetic measurement principle for reliable operation under vibration and shock. It is powered by a 10‑32 V DC supply and suitable for material handling, packaging machinery, robotics, and rotary tables.

Applications:

• Material handling and conveyor systems

• Packaging and production machinery

• Rotary tables and press machines

• Robotic axis control

• Positioning of crane and lifting systems

Core Specifications:

• Functional principle: Multiturn absolute encoder (13 bit ST / 13 bit MT)

• Total resolution: 26 bit (8192 steps/revolution × 8192 revolutions)

• Interface: PROFIBUS DP (DPV0), automatic baud rate detection (9.6 kBaud … 12 MBaud)

• Supply voltage: 10 … 32 V DC, reverse polarity protected, power consumption ≤ 2 W

• Status indicators: LED green (operation), LED red (bus activity)

• Measuring step: 0.043°, repeat accuracy 0.1°, error limits ±0.25°

• Electronic adjustment: via PRESET push button or fieldbus protocol

• MTTFd (mean time to dangerous failure): 150 years

Advanced Specifications:

• Mechanical design: Solid shaft, face mount flange

• Shaft diameter × length: 10 mm × 19 mm, stainless steel

• Max. mechanical speed: 6000 rpm (full IP rating maintained up to max. speed)

• Shaft loading capacity: radial 300 N, axial 50 N

• Starting torque: 2.5 Ncm (with shaft seal) / 0.5 Ncm (without shaft seal)

• Bearing lifetime: 3.6 × 10^9 revolutions

• Moment of inertia of rotor: 35 gcm²

• Housing material: Die‑cast aluminium, flange material: aluminium

• Weight: 0.59 kg (with male connector)

• Dimensions (L×W×H): 10.0 × 6.5 × 6.5 cm

• Protection rating: IP67 (IEC 60529)

• Vibrations: 20 g (10 Hz … 2000 Hz), shocks: 100 g (6 ms)

• Ambient operating temperature: –20 °C … +85 °C

The bus adapter for PROFIBUS DP must be ordered separately. For easy commissioning, the encoder can be set to zero or a user‑programmed value via the on‑device PRESET button or software.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• 6026902 – SICK PROFIBUS bus adapter with cable gland (PG)

• 6026912 – SICK PROFIBUS bus adapter (M12)

• 6026810 – SICK PROFIBUS terminating resistor
