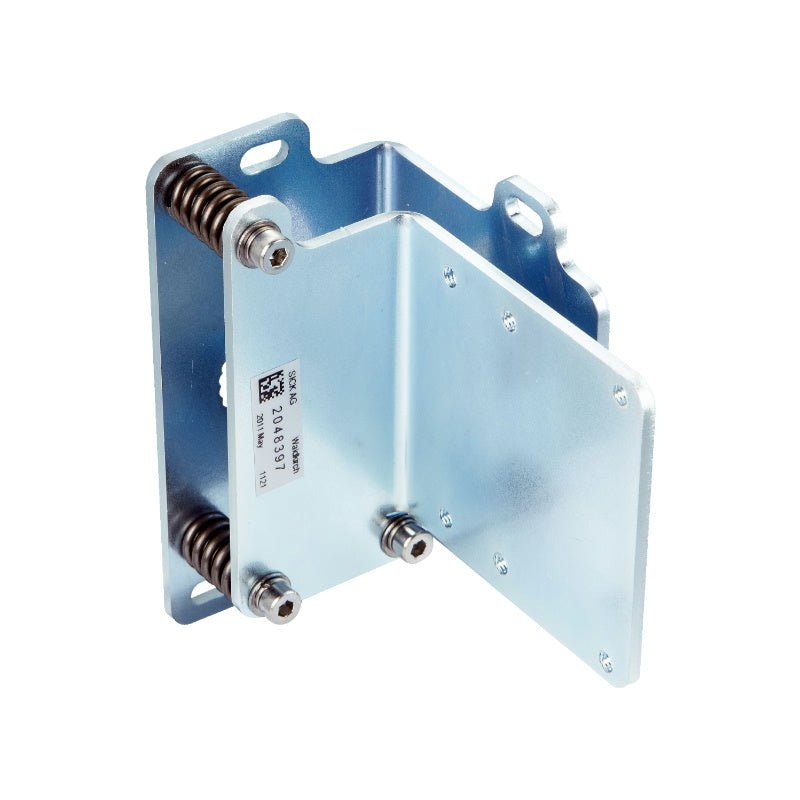

The Original New SICK BEF-AH-DX50 (Part No. 2048397) is a fine‑adjustment mounting bracket designed to precisely align SICK Dx‑series distance sensors in industrial automation installations. Manufactured from zinc‑plated steel, it provides a stable platform for the sensor while allowing controlled angular adjustment in both horizontal and vertical planes. The bracket is supplied with the necessary mounting hardware for the sensor, simplifying installation and ensuring a secure, repeatable setup. It is compatible with a range of distance sensors including the Dx35, Dx50, Dx50‑2, and Dx80 series, as well as the DT20 Hi model.

Core Engineering Highlights:
Zinc‑plated steel construction | Fine‑adjustment alignment unit | Horizontal adjustment approx. ±5° / vertical approx. ±3° | Includes mounting hardware for the sensor | Compatible with Dx35, Dx50, Dx50‑2, Dx80, and DT20 Hi distance sensors | Rod‑fixing / universal bar clamp mounting (5 mm rod diameter) | Dimensions approx. 54 × 114.9 mm | Weight approx. 0.352 kg

Key Features:

  • Original New SICK BEF‑AH‑DX50 alignment bracket (Part No. 2048397)

  • Provides fine angular adjustment for precise sensor alignment

  • Horizontal adjustment capability: approximately ±5° to the center line

  • Vertical adjustment capability: approximately ±3°

  • Robust zinc‑plated steel material for industrial durability

  • Includes mounting hardware for attaching the sensor to the bracket

  • Designed for universal bar clamp mounting (rod fixing, 5 mm diameter)

  • Compatible with multiple SICK Dx series distance sensor models

  • Compact footprint suitable for space‑constrained installations

Applications:

  • Precise alignment of Dx35, Dx50, Dx50‑2, and Dx80 distance sensors

  • Fine‑tuning sensor angle in material handling and positioning systems

  • Mounting of distance sensors on rod‑based fixtures and machine frames

  • Industrial automation setups requiring stable, adjustable sensor placement

  • Installation of DT20 Hi distance sensors where angular adjustment is needed

Technical Specifications:



Attribute Specification
Catalog Number BEF‑AH‑DX50
Part Number 2048397
Product Family SICK BEF Series (Mounting Systems)
Accessory Type Alignment bracket / mounting bracket
Description Adjustment unit
Material Steel, zinc‑plated
Items Supplied Mounting hardware for the sensor included
Mounting Type Alignment unit; universal bar clamp mounting (rod fixing)
Rod Diameter (Mounting) 5 mm
Compatible Sensors Dx35, Dx50, Dx50‑2, Dx80, DT20 Hi
Horizontal Adjustment Angle (Guide) Approx. ±5° to the center line
Vertical Adjustment Angle (Guide) Approx. ±3°
Dimensions (W × H) Approx. 54 mm × 114.9 mm
Weight Approx. 0.352 kg
RoHS Status ROHS3 Compliant

System Compatibility:

  • Designed for use with SICK Dx35, Dx50, Dx50‑2, and Dx80 mid‑range distance sensors.

  • Also compatible with the DT20 Hi distance sensor.

  • Mounts via a universal bar clamp (rod fixing) with a 5 mm rod diameter.

  • Sensor‑specific mounting hardware is included in the scope of delivery.
