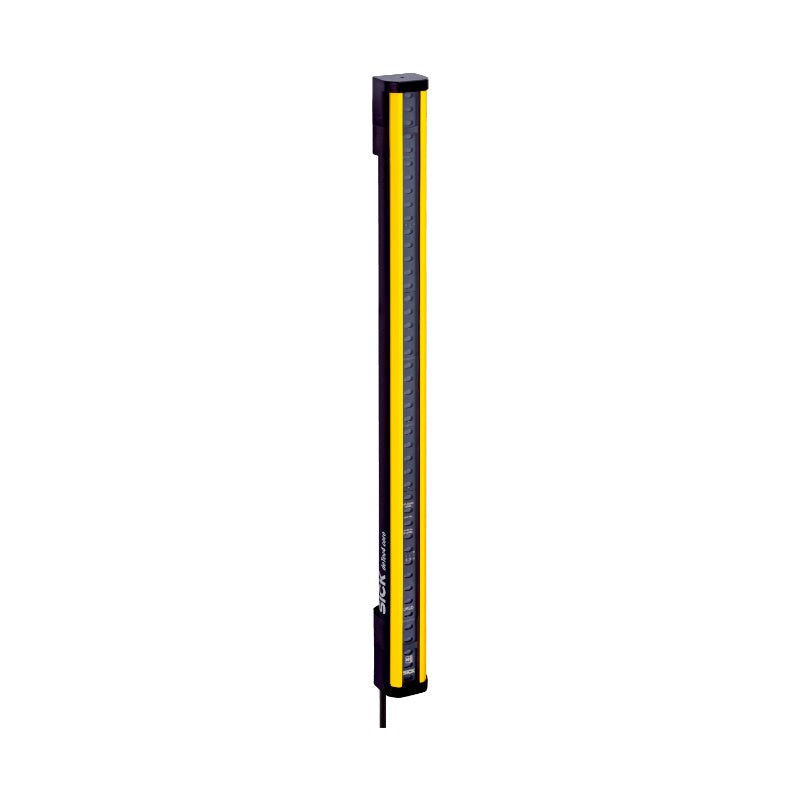

SICK C4C-EA04510A10000 deTec4 Core Safety Light Curtain Receiver 14mm 450mm

SICK C4C‑EA04510A10000 is a Type 4 safety light curtain receiver from the deTec4 Core series. 14 mm resolution for finger protection. Protective field height 450 mm, scanning range 10 m. M12 5‑pin male connector. IP65/IP67 rated aluminium housing. Operating temperature –30 °C … +55 °C. Must be used with compatible sender C4C‑SA04510A10000 (1211469).

Applications:

• Hazardous area access guarding on machinery and production lines

• Finger and hand protection on small to medium access points

• Packaging machinery and material handling system safeguarding

• Automated assembly stations and robot workcell entry monitoring

• Conveyor systems and logistics equipment safety integration

Technical Specifications:

Core Specifications:

• System part: Receiver

• Compatible sender: 1211469 (C4C‑SA04510A10000)

• Resolution: 14 mm (finger detection)

• Protective field height: 450 mm

• Scanning range: 10 m

• Response time: 12 ms

• No blind zones: Yes

• Synchronisation: Optical synchronisation (no cable between sender and receiver)

• Supply voltage: 24 V DC (19.2 V … 28.8 V)

• Power consumption: ≤ 2.16 W

• Outputs: 2 × PNP semiconductors, short‑circuit protected, cross‑circuit monitored

Safety Ratings:

• Type: 4 (IEC 61496‑1)

• Safety integrity: SIL3 (IEC 61508) / SILCL3 (IEC 62061)

• Category: 4 (EN ISO 13849‑1)

• Performance level: PL e (EN ISO 13849‑1)

• PFHD: 3.7 × 10⁻⁹

• Mission time TM: 20 years

Advanced Specifications:

• Enclosure rating: IP65 / IP67 (IEC 60529)

• Housing material: Aluminium extruded profile

• Connection: M12 male connector, 5‑pin

• Cable length from connector: 150 mm (sensor to M12 connector)

• Ambient operating temperature: –30 °C … +55 °C

• Storage temperature: –30 °C … +70 °C

• Air humidity: 15 % … 95 %, non‑condensing

• Vibration resistance: 5 g, 10 Hz … 55 Hz (IEC 60068‑2‑6)

• Shock resistance: 10 g, 16 ms (IEC 60068‑2‑27)

• Protection class: III (IEC 61140)

• Weight: approx. 0.734 kg

System Integration:

• This receiver belongs to the SICK deTec4 Core series of safety light curtains.

• Must be used with compatible sender C4C‑SA04510A10000 (1211469); the two devices form a functional safety light curtain system.

• Optical synchronisation eliminates the need for a synchronisation cable between sender and receiver.

• Automatic calibration of the protective field width simplifies installation.

• OSSD outputs connect directly to safety‑rated machine control inputs (e.g., safety relay or safety PLC).

• For detailed installation, alignment and wiring instructions, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (CE, cULus, TÜV, UKCA, KCCs, GB, RoHS).

Related Products:

• C4C‑SA04510A10000 (1211469) – deTec4 Core sender (transmitter), 450 mm height, 14 mm resolution, 10 m range

• C4C‑EA06010A10000 – deTec4 Core receiver, 600 mm height, 14 mm resolution

• C4C‑EA04530A10000 – deTec4 Core receiver, 450 mm height, 30 mm resolution, 15 m range

• YF2A15‑xxxUB5M2A15 – M12 straight female connector cable, 5‑pin, various lengths, PVC

• YG2A15‑xxxUB5M2A15 – M12 angled female connector cable, 5‑pin, various lengths
