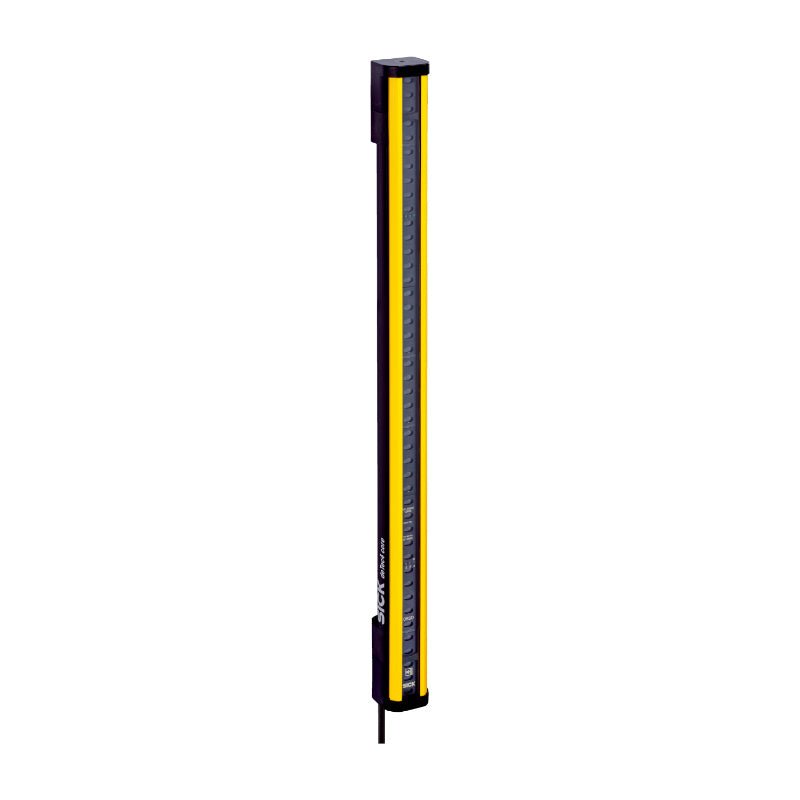

SICK C4C-EA12010A10000 1211479 deTec4 Core Safety Light Curtain Receiver 14mm 1200mm

SICK C4C-EA12010A10000 is a Type 4 safety light curtain receiver from the deTec4 Core series. 14 mm beam resolution for finger protection. 1200 mm protective field height, 10 m scanning range. Requires compatible sender C4C-SA12010A10000 (1211478). For access guarding and machine protection in normal industrial environments.

Applications:

• Machine access guarding and hazardous area protection

• Handling and assembly workstations

• Packaging machinery and food & beverage processing

• Palletising systems and material handling equipment

• Robot workcell perimeter protection

Core Specifications:

• Safety rating: Type 4 (IEC 61496-1), SIL3 (IEC 61508), SILCL3 (IEC 62061), Category 4 (ISO 13849-1), PL e (ISO 13849-1)

• Detection capability / resolution: 14 mm (finger detection)

• Protective field height: 1,200 mm

• Scanning range: 0 m … 10 m

• Response time: ≤ 16 ms

• Supply voltage: 24 V DC (19.2 V … 28.8 V)

• Outputs: 2 × PNP OSSD safety outputs, short-circuit protected, cross-circuit monitored

• Output current: ≤ 300 mA per OSSD

• Connection: M12 male connector, 5-pin

• Synchronisation: Optical (no cable between sender and receiver)

• Enclosure rating: IP65 / IP67

• Ambient operating temperature: –30 °C … +55 °C

• Housing material: Aluminium extruded profile

• Dimensions (excl. cable): length 1,213 mm, width 34 mm, height 30.7 mm

• Weight: approx. 1.2 kg

Advanced Specifications:

• PFHD (probability of dangerous failure per hour): 3.7 × 10⁻⁹

• Mission time: 20 years (ISO 13849-1)

• Power consumption typical: 3.36 W

• OSSD ON voltage: 24 V DC (VS – 2.25 V DC … VS)

• OSSD OFF voltage: ≤ 2 V DC

• No blind zones: yes (continuous protection over full height)

• Automatic calibration of protective field width

• Cable bend radius (stationary): > 12 × cable diameter

• Cable bend radius (flexible): > 15 × cable diameter

• Storage temperature: –30 °C … +70 °C

• Air humidity: 15 % … 95 %, non-condensing

• Vibration resistance: 5 g, 10 Hz … 55 Hz (IEC 60068-2-6)

• Shock resistance: 10 g, 16 ms (IEC 60068-2-27)

• Certifications: CE, cULus, TÜV, UKCA, China RoHS

Items supplied:

• Receiver C4C-EA12010A10000

• Test rod (diameter = resolution, 14 mm)

• Safety instruction

• Mounting instructions

• Operating instructions (download)

System Integration:

• Part of the SICK deTec4 Core series. Must be used with compatible sender C4C-SA12010A10000 (1211478).

• Mounting system: innovative bracket system allows any bracket position on the housing; half‑rounded contour enables flexible installation.

• Integrated LED display for fast commissioning and diagnostics.

• Automatic calibration reduces installation time and maintenance costs.

• Flexi Loop compatible for cascading multiple safety light curtains.

• OSSD outputs connect to safety-rated machine inputs. Optical synchronisation eliminates wiring between sender and receiver.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.
