SICK C4C-PA10530A10000 deTec4 Core Safety Light Curtain Set 1050mm 30mm PL e

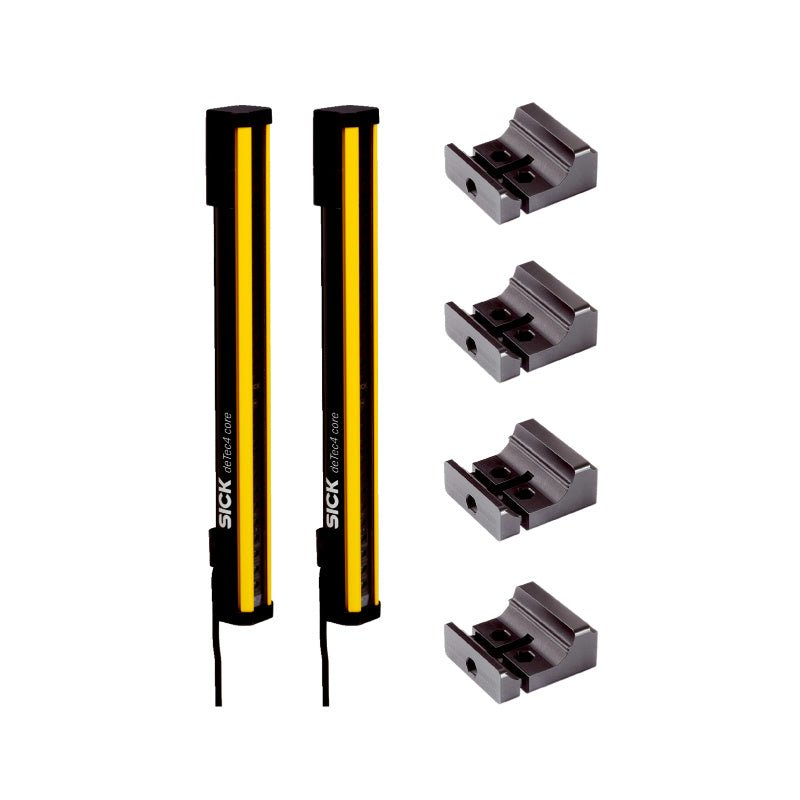

SICK deTec4 Core C4C-PA10530A10000 is a Type 4 safety light curtain set for hazardous area access guarding, point protection, and perimeter safeguarding in industrial environments. The set includes the sender (C4C-SA10530A10000) and receiver (C4C-EA10530A10000) as a matched pair. 30 mm resolution for hand and arm detection. Protective field height 1050 mm, scanning range 0 … 15 m. Compact aluminium housing rated IP65/IP67. Compliant with PL e (ISO 13849‑1), SIL 3 (IEC 61508), and Type 4 (IEC 61496‑1). Integrated alignment aid, LED diagnostic indicators, and optional NFC‑based configuration via SICK Safety Assistant App.

Applications:

• Hazardous area access guarding on machinery and production lines

• Robot workcell perimeter protection and safety zone monitoring

• Packaging machinery and material handling system guarding

• Automated assembly stations and logistics equipment

• Palletising systems and warehouse automation safety

Core Specifications:

• System part: Complete safety light curtain set (sender + receiver)

• Series: deTec4 Core

• Resolution: 30 mm (hand/arm detection)

• Protective field height: 1050 mm

• Scanning range: 0 … 15 m

• Safety rating: Type 4 (IEC 61496‑1), SIL 3 (IEC 61508), PL e (ISO 13849‑1)

• Supply voltage: 24 V DC (PELV/SELV)

• Enclosure rating: IP65 / IP67

• Housing material: Aluminium extruded profile

• Ambient operating temperature: –30 °C … +55 °C

• Storage temperature: –30 °C … +70 °C

• Electrical connection: Sender M12 5‑pin male, receiver M12 8‑pin male

Advanced Specifications:

• PFHD (probability of dangerous failure per hour): 3.7 × 10⁻⁹ (typical for deTec4 series)

• Mission time (TM): 20 years (ISO 13849‑1)

• Response time: ≤ 16 ms

• OSSD safety outputs: 2 × PNP, short‑circuit protected, cross‑circuit monitored

• Output current: ≤ 300 mA per OSSD

• Optical synchronisation, no cable between sender and receiver

• Integrated LED diagnostics and alignment aid

• NFC‑capable for configuration via SICK Safety Assistant App

System Integration:

• Belongs to the SICK deTec4 Core series of safety light curtains.

• Mounting system allows flexible bracket positions along the housing; semicircular housing contour enables easy installation.

• Optical synchronisation eliminates the need for a synchronisation cable between sender and receiver.

• Align optically; OSSD outputs connect to safety‑rated machine control inputs.

• Configuration and diagnostics performed via integrated LED display, optional Safety Designer software, or SICK Safety Assistant App.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details (CE, cULus, TÜV, RoHS).

Related Products:

• C4C‑SA10530A10000 – deTec4 Core sender unit (transmitter)

• C4C‑EA10530A10000 – deTec4 Core receiver unit

• YF2A15‑xxxUB5M2A15 series – M12 5‑pin connection cables (sender)

• YF2A18‑xxxUA5M2A15 series – M12 8‑pin connection cables (receiver)

• BEF‑K4‑X – mounting bracket for deTec4 series
