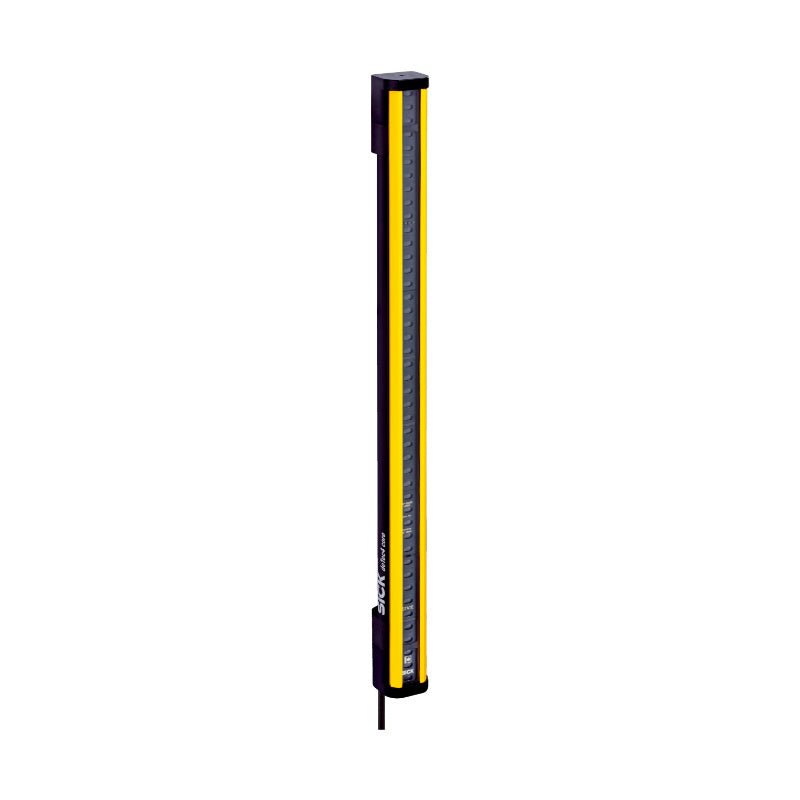

SICK C4C-SA04510A10000 deTec4 Core Safety Light Curtain Sender 450mm 14mm 10m

SICK C4C‑SA04510A10000 is the sender (transmitter) unit of a Type 4 (IEC 61496) electro‑sensitive protective device (ESPE). As part of the deTec4 Core safety light curtain system, it generates a parallel infrared light beam curtain for finger protection (14 mm resolution) for hazardous area access guarding and machine protection in normal industrial environments. The device emits a 10 m scanning range, has a protective field height of 450 mm and is powered via an M12 5‑pin male connector. Operating temperature: –30 °C … +55 °C, IP65/IP67 ingress protection (IEC 60529) for dust‑tight protection and water resistance. The sender must be used with a suitable deTec4 Core receiver (e.g. C4C‑EA04510A10000) to form a functional safety light curtain system.

Applications:

• Finger and hand protection on hazardous machine access points

• Packaging machinery guarding and automation equipment

• Material handling and logistics system safety perimeter enforcement

• Robotic workcell entry monitoring

• Assembly line and production machine safeguarding

Technical Specifications:

• Sub‑product family: deTec4 Core

• System part: Sender (transmitter) unit

• Resolution: 14 mm (finger detection)

• Protective field height: 450 mm

• Scanning range: 10 m

• Safety type (IEC 61496‑1): Type 4

• Safety integrity: PL e (ISO 13849‑1), SIL 3 (IEC 62061/IEC 61508)

• Enclosure rating: IP65 / IP67

• Ambient operating temperature: –30 °C … +55 °C

• Storage temperature: –30 °C … +70 °C

• Supply voltage: 24 V DC (PELV/SELV)

• Electrical connection: M12 male connector, 5‑pin

• Housing material: Aluminium extrusion profile

• Dimensions: approx. length 513 mm, width 34 mm, height 30.7 mm

• Weight: approx. 0.5 kg

Compatibility information:

• This sender belongs to the SICK deTec4 Core series of safety light curtains.

• Must be mounted opposite a compatible deTec4 Core receiver (e.g. C4C‑EA04510A10000).

• Operating instructions contain the information required during the life cycle of the safety light curtain. The safety light curtain must be connected to the control such that the machine cannot start while persons are in the hazardous area. The sender should only be used within the limits of the prescribed and specified technical data and operating conditions at all times.

• For software configuration and diagnostics, additional functions can be set up via Safety Designer. For detailed installation, optic alignment and commissioning, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products:

• C4C‑EA04510A10000 (1211470) – deTec4 Core receiver, 450 mm height, 14 mm resolution, 10 m range

• C4C‑SA03010A10000 (1211468) – deTec4 Core sender, 300 mm height, 14 mm resolution, 10 m range

• C4C‑SA06010A10000 – deTec4 Core sender, 600 mm height, 14 mm resolution, 10 m range

• M12 5‑pin connection cable (e.g. YF2A15‑xxxUB5M2A15) – Pre‑assembled female connector cable
