SICK C4MT-04814ABB04DE0 1048874 miniTwin4 Safety Light Curtain 14mm 480mm

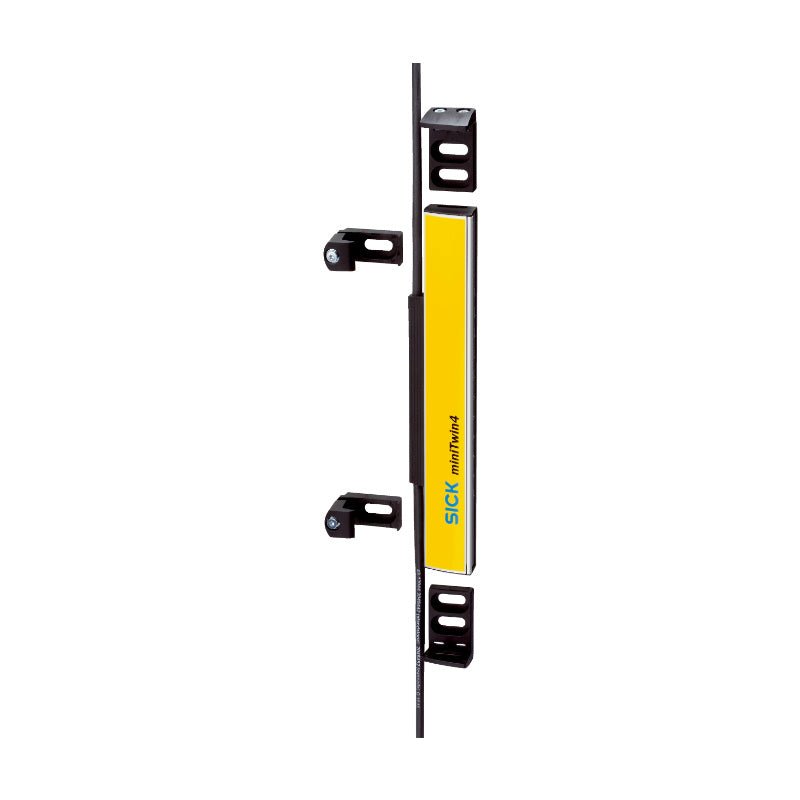

SICK C4MT‑04814ABB04DE0 is a miniature safety light curtain from the miniTwin4 series for finger and hand protection at small access points. The integrated system combines transmitter and receiver in one compact housing, eliminating the need for a separate control unit. Resolution 14 mm, protective field height 480 mm, scanning range 3 m. Type 4 (IEC 61496‑1), PL e (EN ISO 13849‑1). IP65 / IP67 enclosure. M12 4‑pin male connector.

Applications:

• Access guarding on small machinery, packaging machines and assembly stations

• Hand and finger protection on process automation equipment

• Material handling systems and conveyor access guarding

• Robotics workcell entry monitoring

• Replacing hinged or removable guards on automated equipment

Technical Specifications:

• System part: Integrated transmitter and receiver (one device)

• Resolution: 14 mm (finger detection)

• Protective field height: 480 mm

• Scanning range: 0 … 3 m

• Response time: depends on configuration (refer to product manual)

• Safety rating: Type 4 (IEC 61496‑1), PL e (EN ISO 13849‑1), SIL 3 (IEC 61508)

• Supply voltage: 24 V DC (PELV/SELV)

• Enclosure rating: IP65 / IP67

• Housing material: Aluminium

• Connection type: M12 male connector, 5‑pin (receiver)

• Ambient operating temperature: –30 °C … +55 °C

• Storage temperature: –30 °C … +70 °C

• Dimensions (H × W × D): 480 mm × 15 mm × 45 mm

System Integration:

• Belongs to SICK miniTwin4 series of miniature safety light curtains.

• Optical synchronisation between two devices (sender + receiver functions are integrated).

• OSSD outputs connect directly to the machine's safety control circuit (e.g., safety relay).

• Configuration and diagnostics via integrated LEDs or optional software.

• For detailed wiring and mounting instructions, refer to the product manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• C4MT‑03014ABB04DE0 – miniTwin4 safety light curtain, 14 mm resolution, 300 mm height

• C4MT‑09014ABB04DE0 – miniTwin4 safety light curtain, 14 mm resolution, 900 mm height

• YF2A15‑xxxUB5M2A15 – M12 straight female connector cable, 5‑pin, various lengths

• YG2A15‑xxxUB5M2A15 – M12 angled female connector cable, 5‑pin, various lengths
