DFS60B-S4PK10000 Incremental Encoder 10000 PPR HTL/TTL | SICK

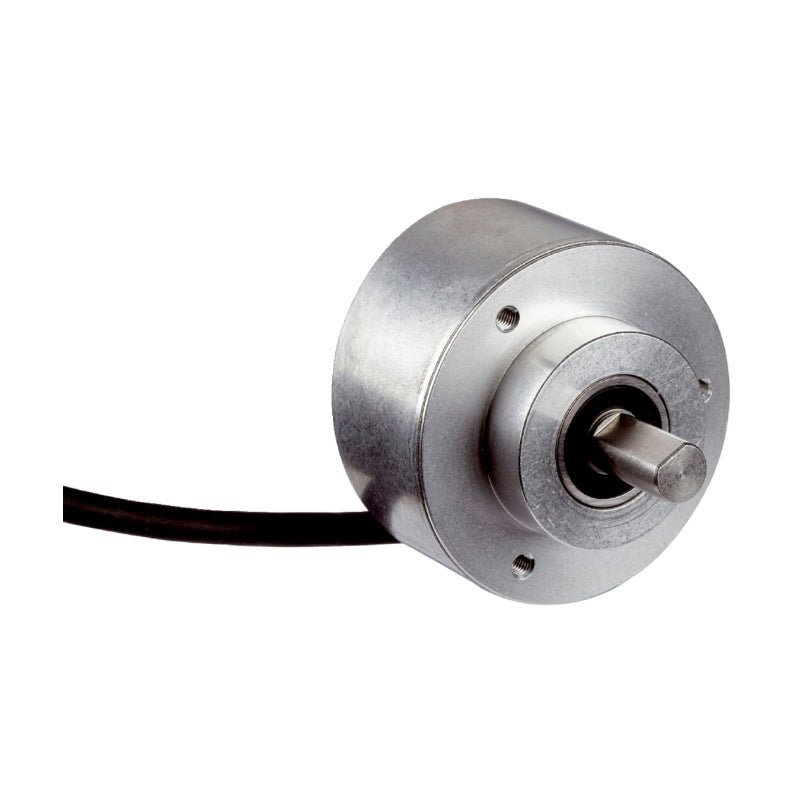

The Original New SICK DFS60B-S4PK10000 (Part No. 1036722) is a high-resolution incremental encoder from the DFS60 series, designed for precise position and speed feedback in industrial automation. Featuring 10,000 pulses per revolution, a 10 mm solid shaft with a 36 mm clamping flange, and a programmable TTL/HTL electrical interface, it delivers reliable performance across a wide range of motion control applications. The 6-channel output with a 90° electrically gated zero pulse enables accurate referencing, while the 8-wire universal cable and IP65 protection ensure dependable operation in demanding environments.

Core Engineering Highlights:
10,000 pulses per revolution | TTL/HTL programmable electrical interface (factory set to TTL) | 6 signal channels | 10 mm solid shaft with flat, 36 mm clamping flange | 8-wire universal shielded cable, 1.5 m | IP65 protection (shaft side) | Supply voltage 4.5–32 V DC | Output frequency ≤ 600 kHz | –30°C to +100°C operating temperature

Key Features:

• Original New SICK DFS60B-S4PK10000 encoder (Part No. 1036722)

• 10,000 pulses per revolution for high-resolution feedback

• Programmable TTL/HTL electrical interface (factory setting: TTL)

• 6 signal channels with 1 reference signal, 90° electrically gated with A and B

• 10 mm solid shaft (with flat) and 36 mm clamping flange for secure mounting

• 8-wire universal shielded cable (1.5 m) for flexible routing

• Reverse polarity and short-circuit protection

• MTTFd: 300 years (EN ISO 13849-1)

• High output frequency up to 600 kHz

• Low power consumption ≤ 0.7 W (without load)

• Initialization time: 32 ms (30 ms with mechanical zero pulse width)

• Measuring step deviation ±0.01°, error limits ±0.05°

Applications:

• Speed and position feedback on servo drives and motors

• CNC machine tool axis feedback

• Packaging machinery and material handling systems

• Printing presses and converting equipment

• Robotics and automated assembly lines

• General industrial motion control applications

Technical Specifications:

System Compatibility:

• Compatible with standard industrial controllers and drives accepting incremental TTL/HTL encoder signals.

• Programmable via SICK PGT-08-S USB programming unit (sold separately) for output level and pulse count configuration.

• 8-wire universal cable supports both radial and axial routing without bending.

• Suitable for use with servo amplifiers, motion controllers, and PLC high-speed counter modules.

Related Products:

• PGT-08-S – USB programming unit for SICK programmable encoders (DFS60, AFS60, AFM60 series)

• DFS60B-S4PK00500 – 500 PPR variant (lower resolution)

• DFS60B-S4PK02048 – 2048 PPR variant (mid-range resolution)

• DFS60B-S4PK10000 – 10,000 PPR variant (current model)

• STE-2312-G01 – M23 field-attachable connector, 12-pin, straight

• BEF-WM-DFS60 – Mounting bracket for DFS60 series
