SICK DFS60B-S4PM10000 1036724 Incremental Encoder 10000 PPR HTL/TTL IP65

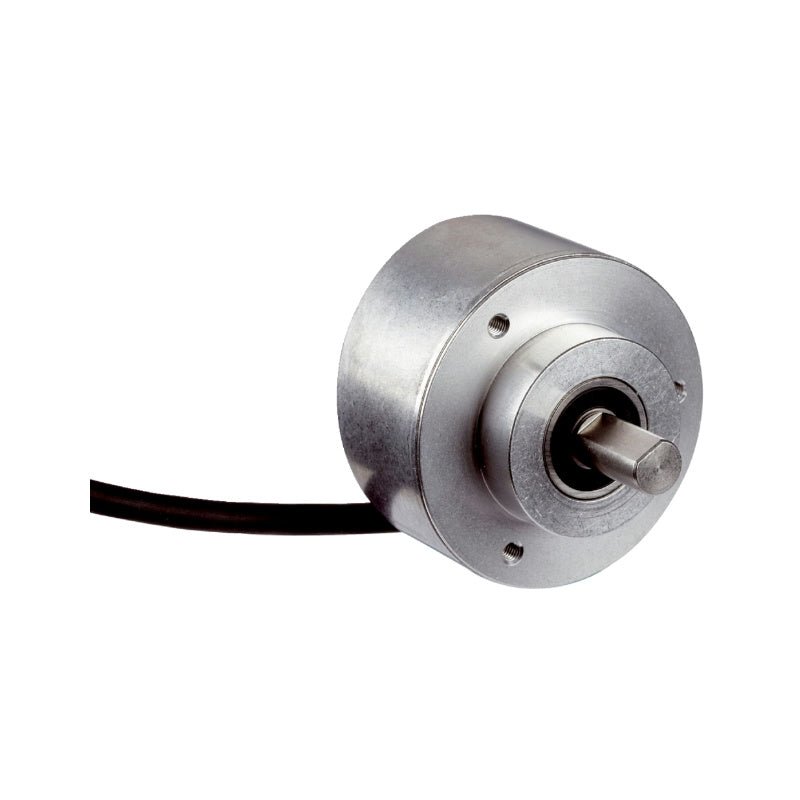

SICK DFS60B incremental encoder with 60 mm diameter, customer‑programmable pulses per revolution (resolution) up to 10,000 PPR. The actual PPR is set at the factory to the required value between 1 and 10,000 before delivery. For the‑S4PM10000 model, the 10 mm solid shaft is equipped with a flat face, a 36 mm clamping flange and a 5 m shielded 8‑wire cable. Output driver and signal levels are factory‑set for TTL (5 V) as standard; the unit can alternatively be programmed for HTL (10 … 30 V) push‑pull. A 90° electrically gated index pulse is included. Aluminium housing rated IP65 (shaft side) / IP67 (cable side). Supply voltage range 4.5 … 32 V DC. Power consumption ≤ 0.7 W. Operating temperature –30 °C … +100 °C and shock resistance 70 g qualify the encoder for use in harsh industrial environments.

Applications:

• Speed and position feedback on servo drives in packaging machinery

• Printing press registration and web tension control

• Material handling and conveyor position monitoring

• Woodworking, textile and converting equipment

• Heavy‑duty applications with high mechanical loads (shock, vibration, high temperature)

Technical Specifications:

• Series: DFS60 (60 mm encoder)

• Performance level: Basic (B)

• Resolution: factory‑programmable 1 … 10,000 PPR

• Factory setting: 10,000 PPR

• Output signals: TTL (5 V) / HTL (10 … 30 V) customer‑programmable Push‑pull

• Output frequency: ≤ 600 kHz

• Reference signal: 1 index pulse, 90°, electrically gated with A and B

• Supply voltage: 4.5 … 32 V DC

• Power consumption: ≤ 0.7 W (without load)

• Load current: ≤ 30 mA

• Electrical connection: 8‑wire universal shielded cable, 5 m length

• Shaft type: solid shaft, 10 mm diameter × 19 mm length, with flat

• Flange type: face mount flange, 36 mm clamping diameter

• Housing material: aluminium die‑cast

• Shaft material: stainless steel

• Flange material: aluminium

• Start‑up torque: 0.5 Ncm (+20 °C)

• Operating torque: 0.3 Ncm (+20 °C)

• Permissible shaft loading (radial / axial): 80 N / 40 N

• Bearing lifetime: 3.6 × 10¹⁰ revolutions

• Moment of inertia of rotor: 6.2 g·cm²

• Angular acceleration: ≤ 500,000 rad/s²

• Operating speed: ≤ 9,000 rpm

• EMC: according to EN 61000‑6‑2 and EN 61000‑6‑3

• Enclosure rating: IP67 (housing side) / IP65 (shaft side) per IEC 60529

• Vibration resistance: 30 g, 10 … 2000 Hz (EN 60068‑2‑6)

• Shock resistance: 70 g, 6 ms (EN 60068‑2‑27)

• Permissible relative humidity: 90 %, no condensation

• Operating temperature range: –30 °C … +100 °C (cable version)

• Storage temperature range: –40 °C … +100 °C (without package)

• Initialisation time: 32 ms

• MTTFd: 300 years (EN ISO 13849‑1)

• Weight: approx. 0.3 kg

Compatibility information:

• This encoder belongs to the SICK DFS60 Basic (B) family of incremental encoders.

• The device is pre‑programmed to the customer’s required resolution and output voltage before delivery.

• Connections must be made according to the product documentation (cable colour code).

• For detailed installation and electrical wiring, refer to the product hardware manual.

Product Status:
Active product. The encoder is programmed at the factory to the user‑defined pulse count (1 to 10,000 PPR) and output level (TTL or HTL) before shipping. Pre‑programming to a different resolution or output voltage is required before the encoder is supplied.
