DL50-P1123 Laser Distance Sensor 200-50000mm Analog PNP | SICK

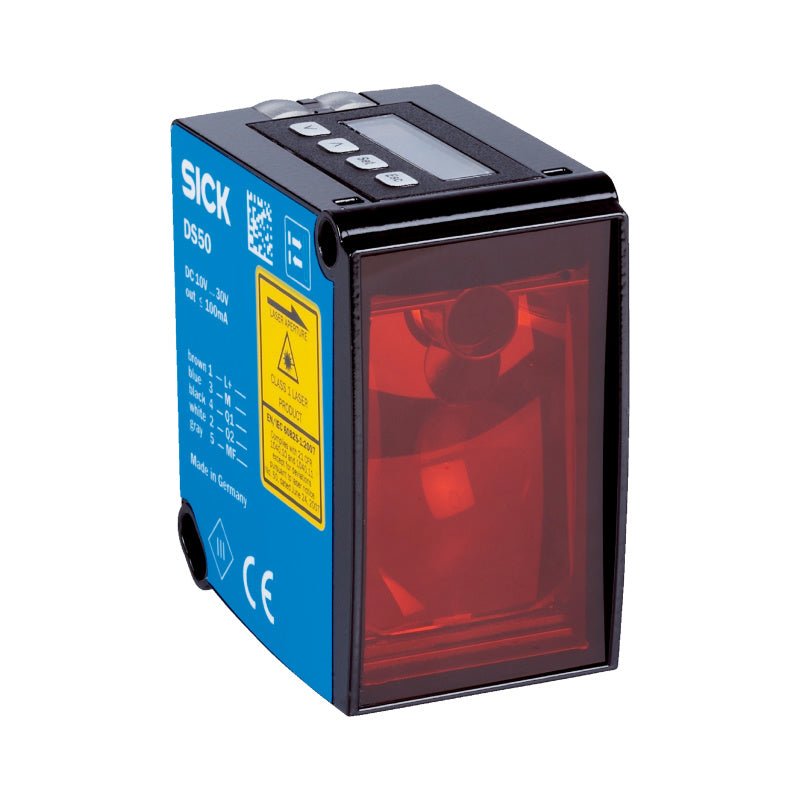

The Original New SICK DL50-P1123 (1047361) is a mid-range laser distance sensor from the Dx50 series, designed for precise, non-contact distance measurement in automated industrial applications. Using time-of-flight measurement with a visible red laser (Class 1, 658 nm), it achieves a measuring range of 200 mm to 50,000 mm on “Diamond Grade” reflective tape, with 1 mm resolution and ± 7 mm accuracy. The sensor provides one PNP digital output and one analog output (4–20 mA or 0–10 V), and supports teach-in, parameterisation, and invertible output functions. Housed in a rugged enclosure rated IP65/IP67, it is suitable for logistics, material handling, and positioning tasks where optical challenges such as ambient light are present. The sensor includes an LC display for on-site configuration and connects via an M12 5-pin connector.

Core Engineering Highlights:
Measuring range 200 mm … 50,000 mm (on reflective tape) | 1 mm resolution | Repeatability ≥ 2 mm | Accuracy ± 7 mm | Response time 15 ms / 30 ms (selectable) | Visible red laser, Class 1 (658 nm) | PNP digital output ≤ 100 mA | Analog output 4–20 mA / 0–10 V | 10–30 V DC supply voltage | IP65 / IP67 enclosure | –30°C to +65°C operating temperature

Key Features:

• Original New SICK DL50-P1123 distance sensor (part no. 1047361)

• Time-of-flight laser measurement for precise, non-contact distance detection

• Measuring range up to 50 m on “Diamond Grade” reflective tape

• 1 mm resolution and ≥ 2 mm repeatability for consistent measurement

• Accuracy of ± 7 mm

• Selectable response time: 15 ms or 30 ms

• Visible red laser (Class 1, 658 nm) for easy alignment

• One PNP digital output (≤ 100 mA) with teach-in, parameterisation, and invertible function

• One analog output (4–20 mA or 0–10 V) with teach-in, parameterisation, and invertible function

• Switch mode: Distance to Object (DtO)

• Adjustable hysteresis and sliding averaging (fast/slow)

• Multifunctional input: Laser off / external teach / deactivated

• LC display for on-site configuration and diagnostics

• Keypad lock to prevent unintended parameter changes

• Factory reset function

• Rugged housing rated IP65/IP67

• M12 5-pin connector

• Up to 40 klx ambient light immunity

Applications:

• Logistics and warehouse automation: high-speed horizontal and vertical positioning of stacker cranes and shuttle vehicles

• Material handling: collision avoidance and position monitoring

• Automated guided vehicles (AGVs) and mobile platforms: distance measurement and positioning

• Industrial automation: non-contact distance measurement in optically challenging environments

• Crane and hoist positioning

Technical Specifications:

Footnotes:
¹ On “Diamond Grade” reflective tape.
² Corresponds to 1 σ.
³ Depending on set averaging: fast/slow.
⁴ Lateral entry of object into measuring range.
⁵ Continuous change of distance to object within measuring range.
⁶ Do not stare intentionally into the laser beam. Do not direct the laser beam at people's eyes. Wavelength: 658 nm; max. power: 120 mW; pulse duration: 2.5 ns; duty cycle: 1/400.

System Compatibility:

• Compatible with standard industrial controllers accepting PNP digital inputs and analog signals (4–20 mA or 0–10 V).

• M12 5-pin connector mates with standard M12 female cordsets.

• Requires “Diamond Grade” reflective tape for maximum 50 m range.

• Configuration via on-device LC display and keypad; no proprietary software required for basic setup.

• Multifunctional input supports external teach, laser off, or deactivation.

Related Products:

• PL240DG – “Diamond Grade” reflective tape for maximum 50 m range

• PL560DG – Large “Diamond Grade” reflective tape for extended coverage

• DOL-1205-G02M – M12 5-pin connection cable, 2 m

• DOL-1205-G05M – M12 5-pin connection cable, 5 m

• DL50-N1123 – NPN output variant, same measuring range

• DL50-P2225 – Alternative Dx50 model with SSI interface

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. SICK and Dx50 are trademarks of SICK AG.
