DOS-1205-G M12 5-Pin Field-Wireable Female Connector IP67 | SICK

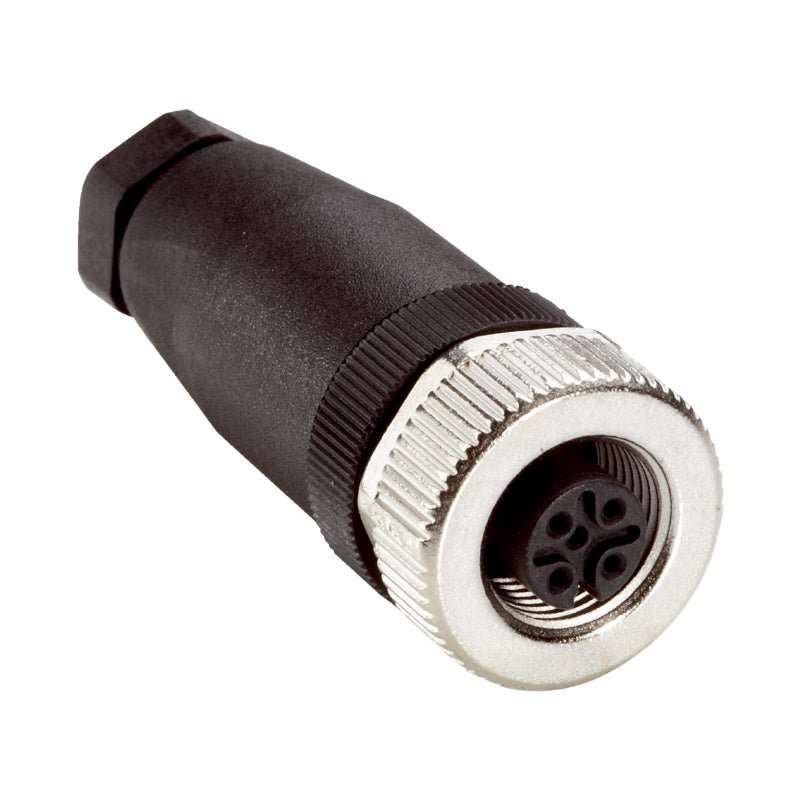

The Original New SICK DOS-1205-G (Part No. 6009719) is a field-wireable M12 5-pin straight female connector designed for on-site assembly of sensor and actuator cables in industrial automation. The screw-type terminal connection enables rapid, solder-free termination of unshielded cables with diameters from 4 mm to 6 mm, eliminating the need for factory-molded cable assemblies and reducing spare-parts inventory. Its nickel-plated brass locking nut with mechanical end-stop provides a secure, vibration-resistant seal rated IP67, protecting the connection against dust and water ingress in harsh industrial environments.

Core Engineering Highlights:
M12 5-pin straight A-coded female connector | Screw-type terminal connection | Permitted cable diameter 4–6 mm | Permitted conductor cross-section ≤ 0.75 mm² | Rated voltage ≤ 125 V / rated current 4 A | IP67 protection (assembled) | Operating temperature –40°C to +85°C | Nickel-plated brass locking nut, 0.6 Nm tightening torque | Unshielded | Black PA connector body

Key Features:

• Original New SICK DOS-1205-G field-wireable connector (Part No. 6009719)

• M12 5-pin straight female socket, A-coded

• Screw-type terminals for secure on-site conductor termination

• Accepts unshielded cables with 4–6 mm outer diameter and ≤ 0.75 mm² conductor cross-section

• Nickel-plated brass (CuZn) locking nut with mechanical end-stop to protect the O-ring

• Rated for ≤ 125 V reference voltage and 4 A current loading

• IP67 enclosure rating when fully assembled and mated

• Wide operating temperature range: –40°C to +85°C

• Black polyamide (PA) connector body

• UL File No. E335179

• Suitable for oils and coolants resistance (typical of the DOS series)

Applications:

• On-site assembly and repair of M12 sensor/actuator cables

• Custom cable length preparation for industrial control cabinets

• Replacement of damaged connectors without replacing the entire cable

• Service and maintenance of SICK and third-party M12-equipped sensors

• Industrial automation, material handling, and packaging machinery

Technical Specifications:

System Compatibility:

• Compatible with standard M12 A-coded male connectors on sensors, actuators, and industrial devices

• Suitable for unshielded cables within the specified diameter and cross-section range

• Field assembly requires standard wire stripping and screw terminal termination tools

• Compatible with SICK DOS series accessories and standard M12 cordsets

Related Products:

• DOS-1205-GQ – M12 5-pin B-coded variant

• DOS-1205-W – M12 5-pin angled female connector

• STE-1205-G – M12 5-pin straight male field-wireable connector

• YF2A15-xxxUB5M2A15 series – Pre-assembled M12 female cordsets (various lengths)

• DOL-1205-G02M – Pre-assembled M12 female angled connector with 2 m cable

• BEF-W100-A – Mounting bracket for sensor positioning

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. SICK and DOS are trademarks of SICK AG.
