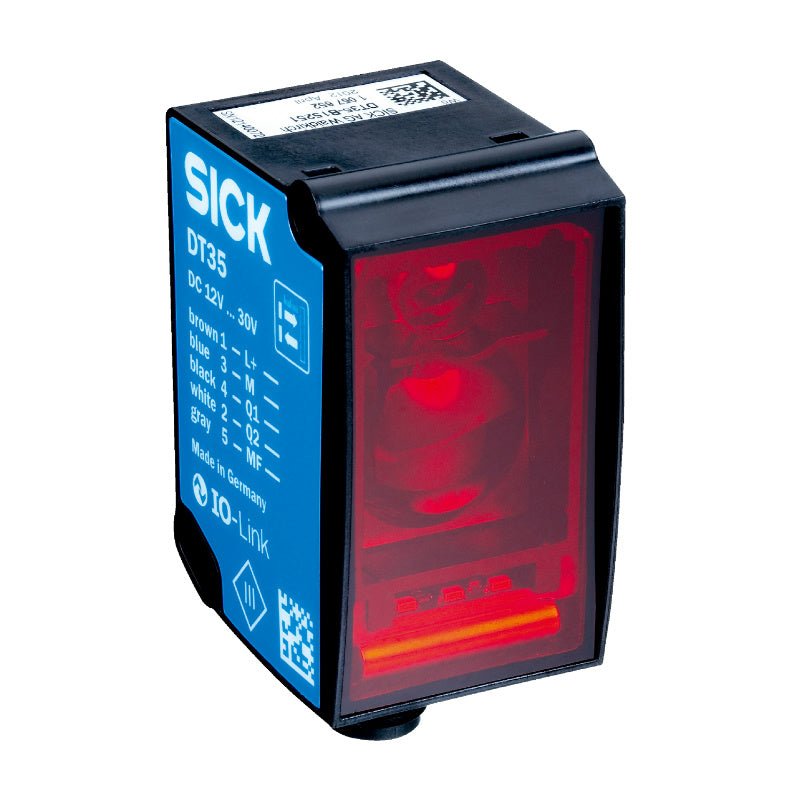

SICK DT35-B15251 1057652 Laser Distance Sensor Dx35

SICK DT35-B15251 is a mid-range distance sensor from the Dx35 series based on HDDM+ technology. The red laser source (class 2, λ=658 nm) with a light spot of 15 mm×15 mm at 2 m provides precise, non‑contact distance measurements on natural objects even under adverse conditions. A high level of immunity to ambient light, flexible speed/range/repeatability settings and the compact housing make the sensor suitable for demanding automation tasks in factory automation, fill‑level monitoring and logistics.

Applications:

• Distance measurement in conveyor systems and automated storage

• Fill‑level monitoring of silos, bulk goods and tanks

• Positioning of stacked goods, pallets and mobile parts

• Collision monitoring on automated guided vehicles (AGV)

Core Specifications:

• Series: Dx35

• Typical light spot size: 15 mm × 15 mm (at 2 m)

• Measurement range (90 % remission): 0.05 … 12 m

• Measurement range (18 % remission): 0.05 … 5.3 m

• Measurement range (6 % remission): 0.05 … 3.1 m

• Resolution: 0.1 mm

• Repeatability: ≥ 0.5 mm

• Accuracy: typ. ± 10 mm

• Response time: selectable (2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms)

• Light source: laser, red (visible red light, λ = 658 nm)

• Laser class: 2 (IEC 60825‑1:2014, EN 60825‑1:2014)

Advanced Specifications:

• Supply voltage Uv: DC 12 V … 30 V

• Residual ripple: ≤ 5 Vss

• Power consumption without load (at +20 °C): ≤ 1.7 W

• Output type: PNP/NPN configurable, push‑pull

• Output current IA: ≤ 100 mA

• Digital outputs: 1…2 configurable (reversing pulse: PNP/NPN)

• Analog output: configurable (4…20 mA, ≤ 450 Ω / 0…10 V, ≥ 50 kΩ)

• Analog output resolution: 12 bit

• Multifunction input: 1× (laser off / external teach / deactivated)

• Hysteresis: 0 … 11,950 mm (selectable)

• Connection: male connector, M12, 5‑pin

• Housing material: plastic (ABS/PC)

• Window material: plastic (PMMA)

• Enclosure rating: IP65 / IP67 (EN 60529)

• Protection class: III

• Dimensions (W × H × D): 32 mm × 58.67 mm × 42.7 mm

• Weight: approx. 65 g

System Integration:

• The sensor belongs to the SICK Dx35 series of mid‑range distance sensors.

• The 5‑pin M12 male connector (wiring diagram) supports connection to standard industrial control systems.

• Speed, range and repeatability can be flexibly adapted to the application via configurable parameters.

• IO‑Link V1.1 (process data, parameter setting and diagnostics, data retention) is available on the shared analog/digital line.

• Additional functions include teach‑in of the analog output with invertible function, switching of output Q2 between current/voltage/digital output, and switching modes for distance measurement: DtO (Distance to Object), switching window or object between sensor and background (ObSB).

Compatibility:

• Suitable for standard industrial controllers (PNP/NPN inputs) via the configurable push‑pull output.

• For parameter setting and diagnostics, an IO‑Link master and appropriate engineering software (e.g. SICK SOPAS) are required.
