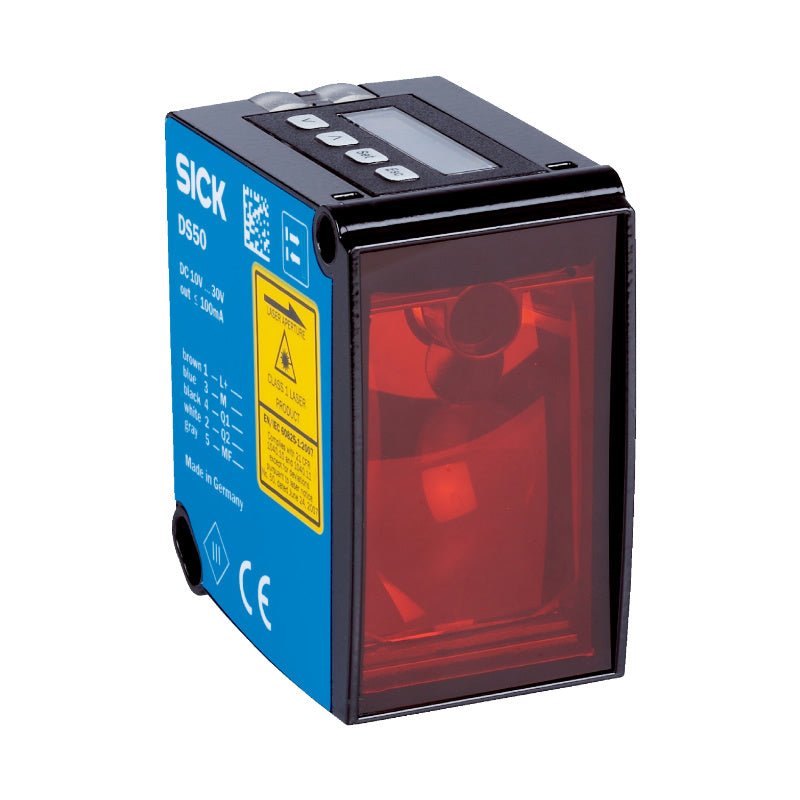

SICK DT50-P1113 1044369 Dx50 Laser Distance Sensor 10m PNP

SICK Dx50 DT50-P1113 is a mid-range laser distance sensor for precise measurement on natural objects up to 10 m. Based on HDDM+ technology, it combines a 1 mm resolution, ± 10 mm accuracy, and low ambient light interference. The visible red laser (Class 2, 658 nm) simplifies alignment. A switchable PNP output and a 4-20 mA analog output provide flexible connectivity. An integrated LC display and push‑buttons enable intuitive on‑site sensor parameterisation. The IP65 zinc die‑cast housing operates from –30 °C up to +65 °C. Designed for industrial positioning, fill‑level monitoring, and logistics automation.

Applications:

• Conveyor object detection and position monitoring (automated material flow)

• Crane trolley/hoist positioning in warehousing and logistics (collision avoidance)

• Fill‑level monitoring of silos, tanks and bulk containers

• Automated guided vehicle (AGV) positioning

• Object dimensioning and height measurement

Technical Specifications:

Core Specifications

• Part number: 1044369, DT50-P1113

• Measuring range: 0.2 m … 10 m (90 % remission) / 0.2 m … 6.5 m (18 % remission) / 0.2 m … 4 m (6 % remission)

• Resolution: 1 mm

• Repeatability: ≥ 2.5 mm

• Measurement accuracy: ± 10 mm

• Light source: Laser, visible red light, λ = 658 nm

• Laser class: 2 (IEC 60825‑1)

• Typical light spot size: 15 mm × 15 mm (at 10 m)

Advanced Specifications

• Supply voltage: 10 … 30 V DC

• Power consumption: ≤ 2.1 W (no‑load)

• Response time: 20 … 30 ms (adjustable)

• Digital output: 1 × PNP, max. 100 mA (NO/NC configurable, short‑circuit protected)

• Analog output: 1 × current 4 … 20 mA, ≤ 300 Ω, 16‑bit resolution

• Multifunctional input: 1 × (MF: laser off / external teach-in / deactivated)

• Switching mode: Distance to object (DtO)

• Hysteresis: 10 mm … 1,000 mm (adjustable)

• Adjustment: LC display with push‑buttons / remote teach‑in via MF input

• Housing material: Zinc die‑cast, PMMA window

• Connection: M12 male connector, 5‑pin

• Enclosure rating: IP65

• Dimensions (W × H × D): 36.1 mm × 62.7 mm × 57.7 mm

• Weight: 200 g

• Ambient operating temperature: –30 °C … +65 °C

• Storage temperature: –40 °C … +75 °C

• Ambient light immunity: 40,000 lx

• Average laser service life: 100,000 h (at +25 °C)

System Integration:

• Belongs to the SICK Dx50 platform of mid‑range distance sensors.

• Mount the sensor by through‑holes or using optional mounting brackets.

• Parameterisation is performed locally via the integrated LC display and push‑buttons; remote configuration via the multifunctional input (teach‑in) is possible.

• The switching output (PNP) and analog output (4‑20 mA) connect in parallel to the controller: the analog signal provides the exact distance value, the switching output serves as a position threshold.

• For detailed electrical wiring, mounting, and parameter setting, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• PL80A – fine triple reflector for measurements on reflective targets up to 50 m

• BEF‑KH‑Dx50 – mounting bracket for flexible sensor positioning

• YF2A15‑xxxUB5M2A15 – M12 straight female connector cable, 5‑pin, various lengths, PVC (2 m, 5 m, 10 m)

• YG2A15‑xxxUB5M2A15 – M12 angled female connector cable, 5‑pin, various lengths
